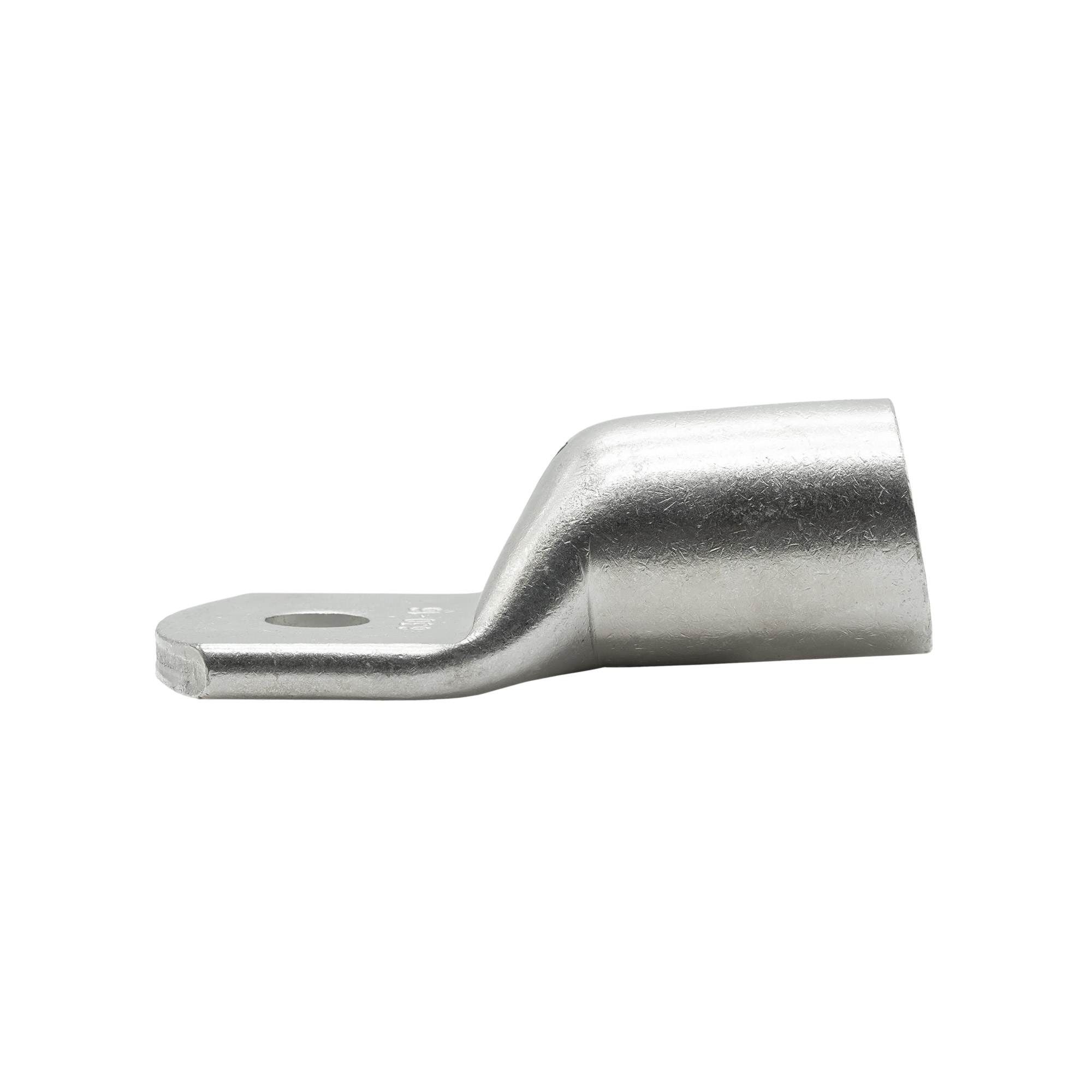

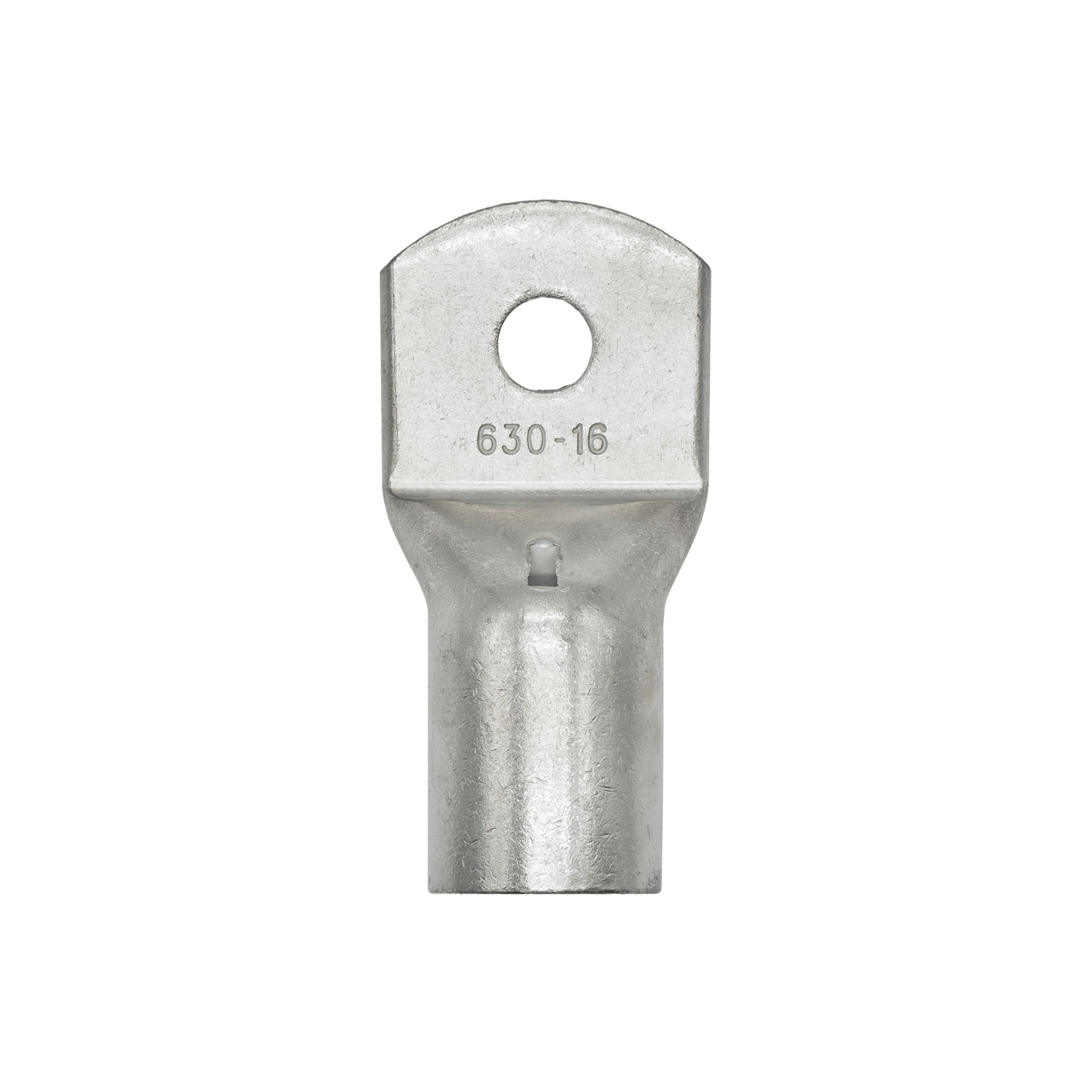

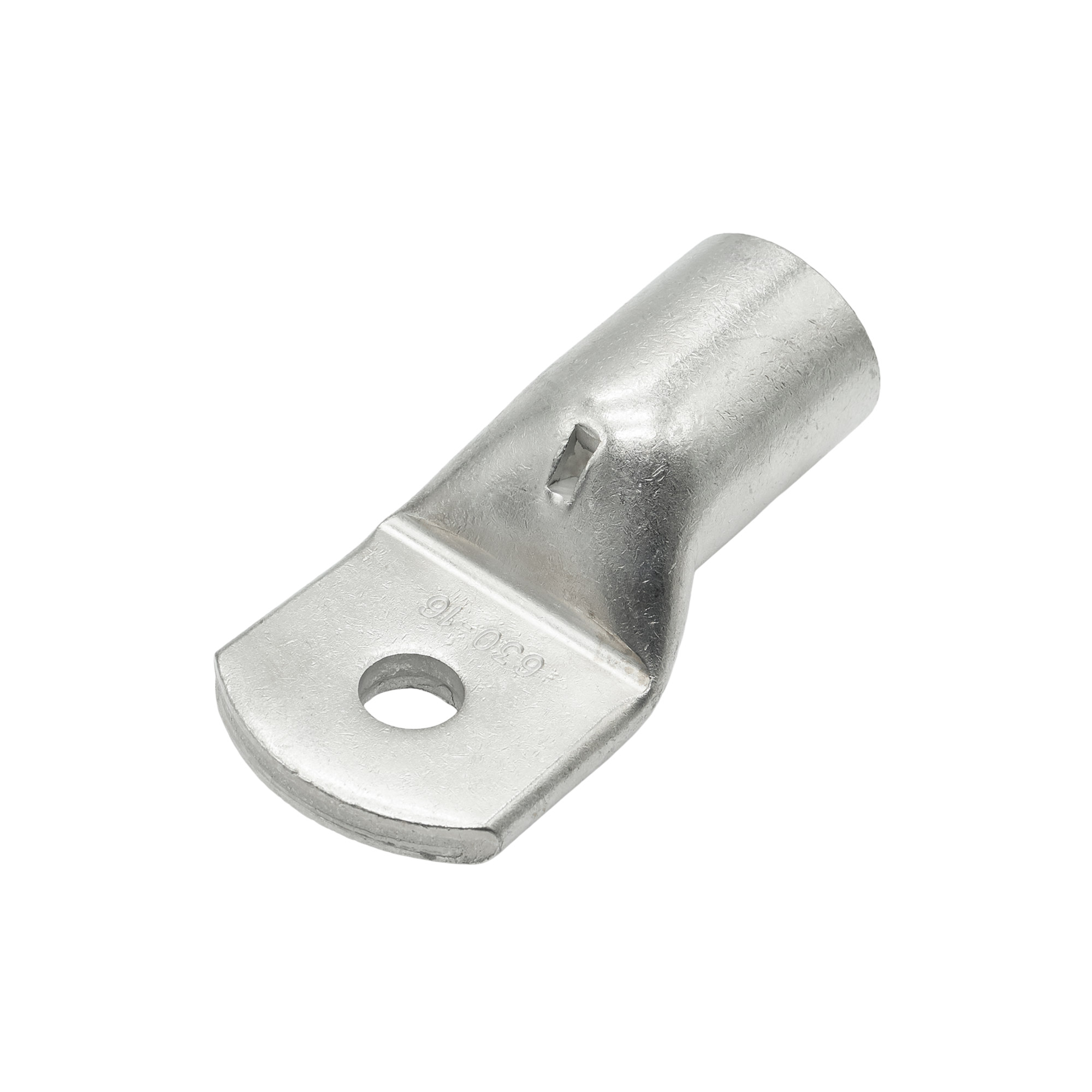

Power terminals screw, 630mm² screw 16mm
Code: 2T16
Power terminals screw, 630mm² screw 16mm
Code: 2T16
| Insulated | Yes |
| Surface protection | Tinned |
| Nominal cross section, mm² | 630 |
| Connecting angle | 180° (horizontal) |
| Flange shape | Ring shape |
| Material | Copper |
| Bolt dimension (metric) | 16 |
| With sight-hole | Yes |
| Slender flange model | Yes |
| Insulation | Not isolated |
| Flange shape | Ring shape |
| Product type | Non insulated terminals |
| nominal cross section | 630 mm² |
