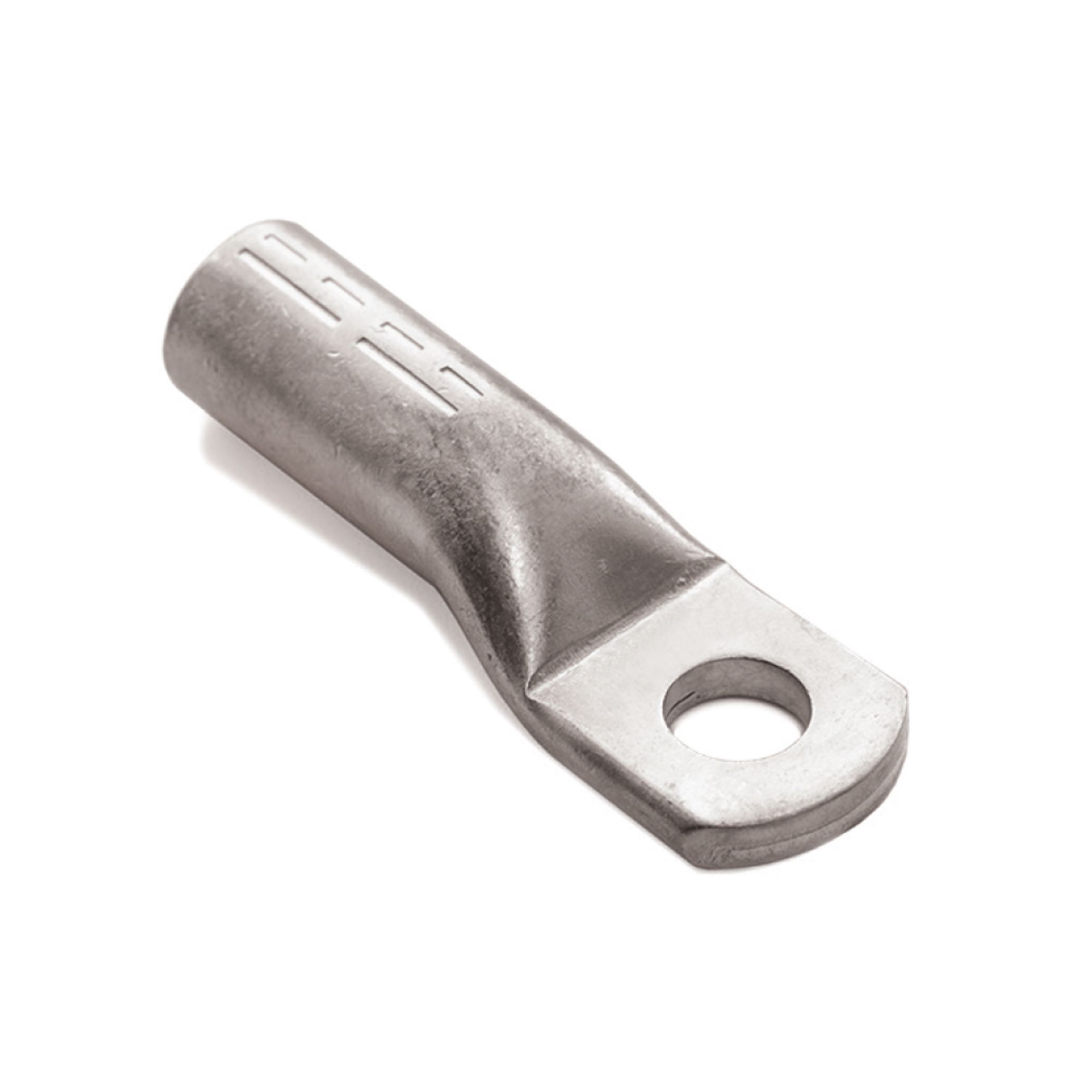

Tip under the soldering, sheet bent with a long flange 70 M2 sq mm the screw of 10 mm

Code: 2I710L
Tip under the soldering, sheet bent with a long flange 70 M2 sq mm the screw of 10 mm
Tip under the soldering, sheet bent with a long flange 70 M2 sq mm the screw of 10 mm
  • To ask a question
Insulated No
Surface protection Tinned
Nominal cross section, mm² 70
Connecting angle Straight
Flange shape Special shape
Material Copper
Bolt dimension (metric) 10
With sight-hole No
Slender flange model No
Drawings
Seria Name Eplan
Cable terminals -"Quadro"
The System "Quadro"
RAR
27.23 Mb
Certificates
Name Document
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1
PDF
1.30 MB
Declaration of conformity to TR TS 004/2011 for pre-insulated spade terminals_1
PDF
2.65 MB
