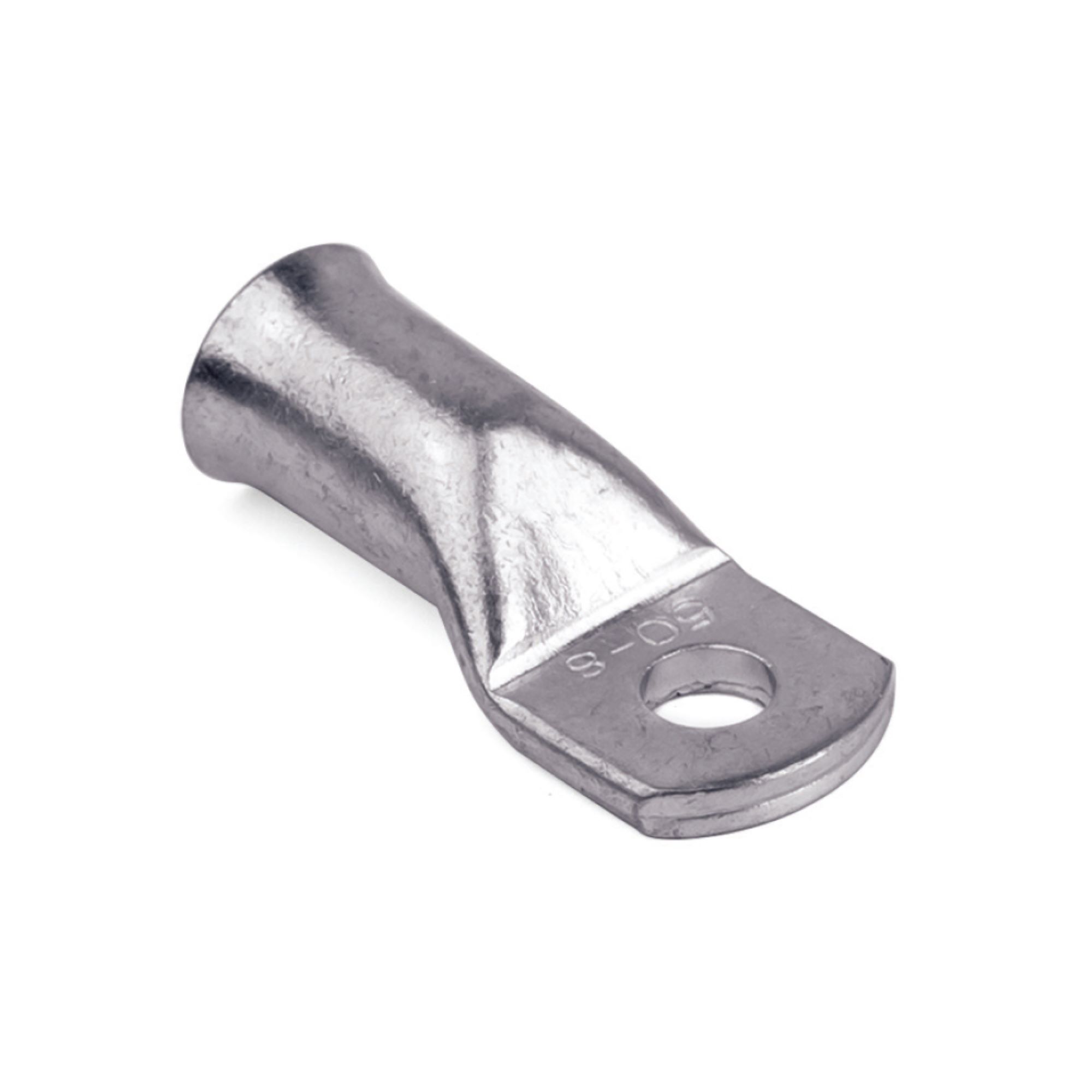

Tip under the soldering, sheet bent 16 sq. mm the screw of 10 mm

Code: 2E10M
Tip under the soldering, sheet bent 16 sq. mm the screw of 10 mm
Tip under the soldering, sheet bent 16 sq. mm the screw of 10 mm
Insulated No
Surface protection Tinned
Nominal cross section, mm² 16
Connecting angle Straight
Flange shape Ring shape
Type of conductor Multi-wire
Material Copper
Bolt dimension metric (M..) 10
With sight-hole No
Slender flange model No
Insulation Not isolated
Flange shape Ring shape
Product type Non insulated terminals
nominal cross section 16 mm²
