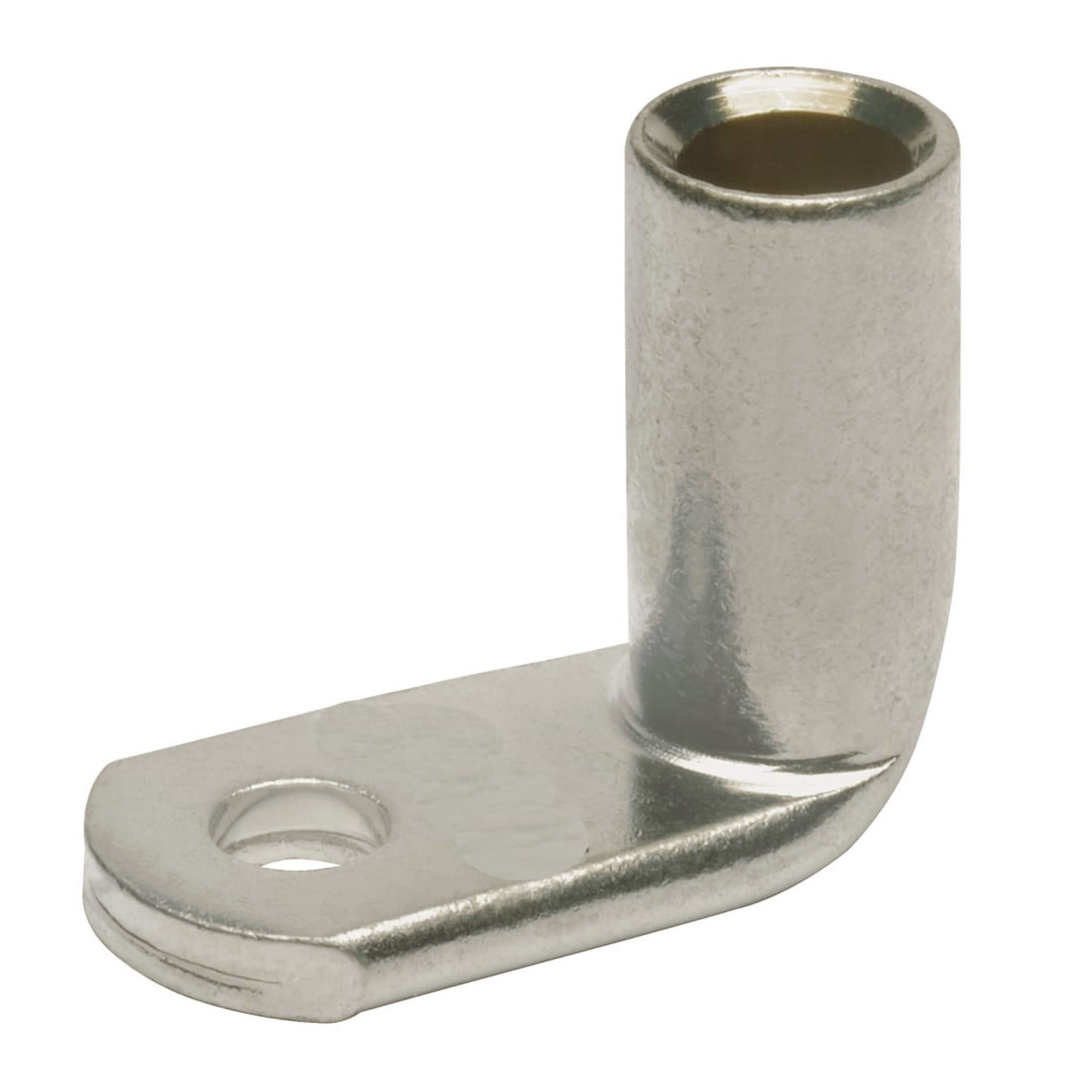

Tip under the soldering, sheet bent at an angle of 90° 10 M2 sq. mm the screw of 10 mm

Tip under the soldering, sheet bent at an angle of 90° 10 M2 sq. mm the screw of 10 mm

Code: 2D710C

To ask a question

ETIM
?

Insulated	No
Surface protection	Tinned
Nominal cross section, mm²	10
Connecting angle	90°
Flange shape	Special shape

Material	Copper
Bolt dimension (metric)	10
With sight-hole	No
Slender flange model	No

Drawings

Seria	Name	Eplan
Cable terminals -"Quadro"	The System "Quadro"	RAR 27.23 Mb
