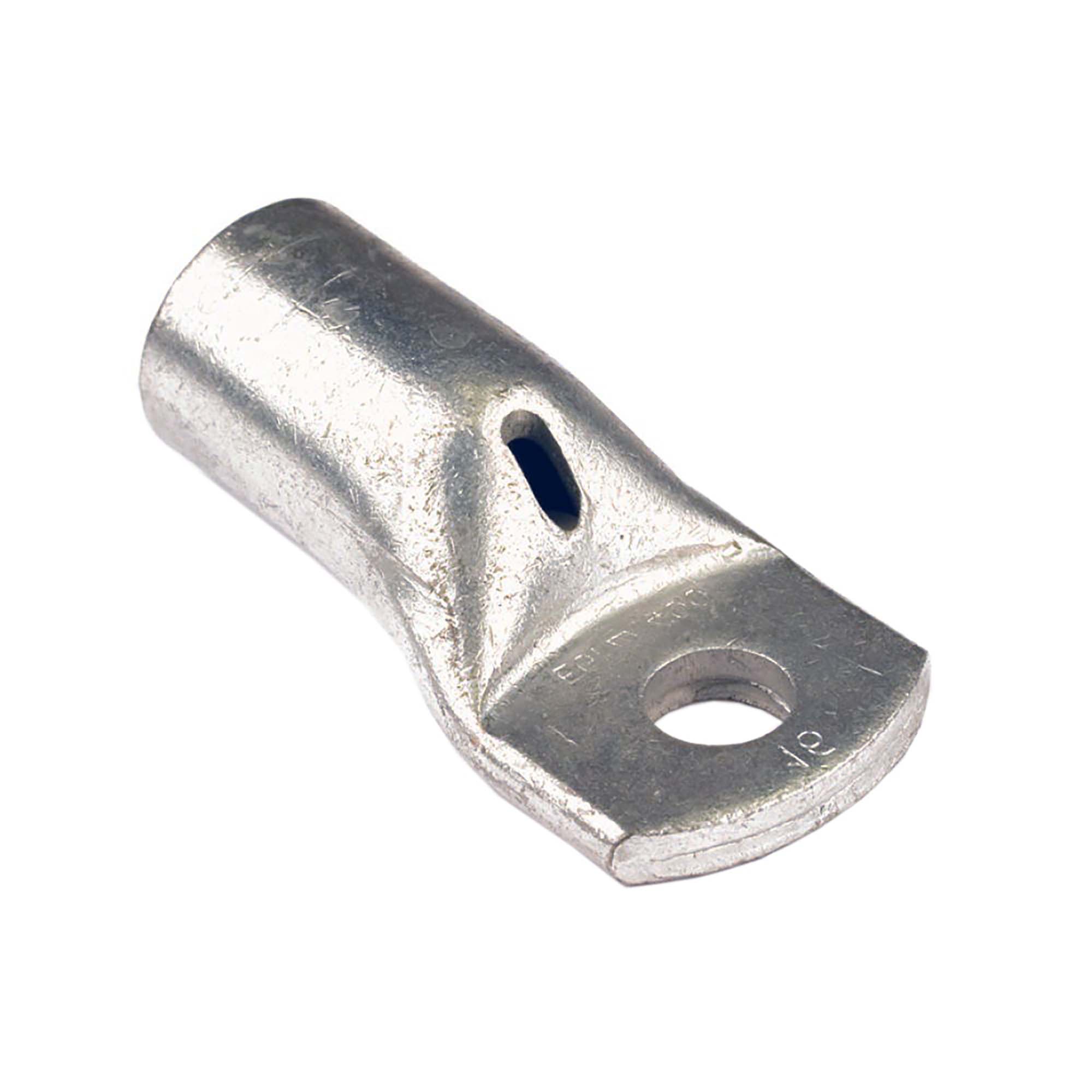

Tip under the soldering, sheet bent 10 M2 sq. mm the screw of 10 mm

Code: 2D710

Tip under the soldering, sheet bent 10 M2 sq. mm the screw of 10 mm

Code: 2D710
Insulated Yes
Surface protection Tinned
Nominal cross section, mm² 10
Connecting angle 180° (horizontal)
Flange shape Special shape
Material Copper
Bolt dimension (metric) 10
With sight-hole Yes
Slender flange model Yes
Insulation Not isolated
Flange shape Ring shape
Product type Non insulated terminals
nominal cross section 10 mm²
Drawings
Seria Name Eplan
Cable terminals -"Quadro"
