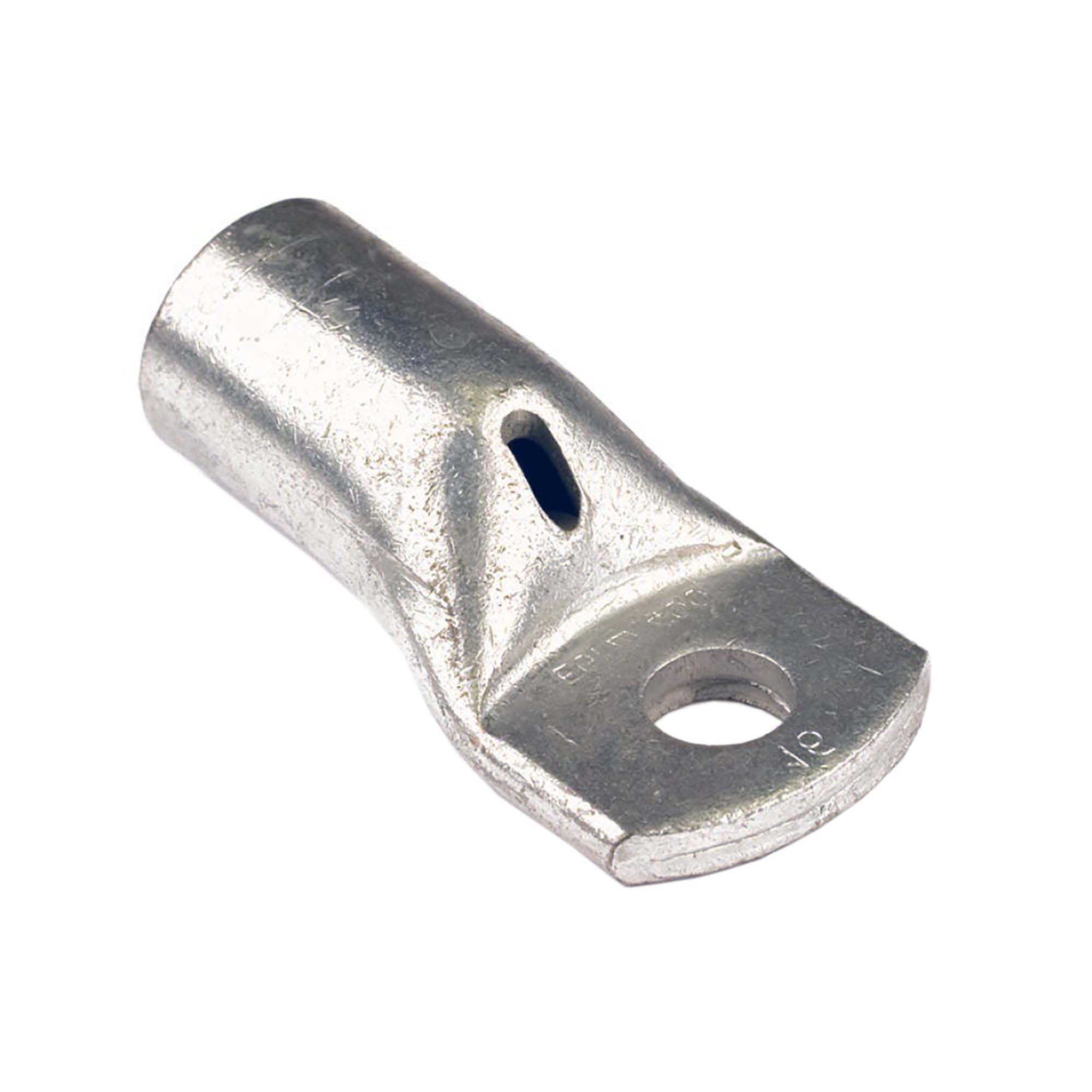

Code: 2CTE6
No name
No name
Insulated No
Surface protection Tinned
Nominal cross section, mm² 4
Connecting angle Straight
Flange shape Ring shape
Type of conductor Multi-wire
Material Copper
Bolt dimension metric (M..) 6
With sight-hole Yes
Slender flange model No
Insulation Not isolated
Flange shape Ring shape
Product type Non insulated terminals
nominal cross section 4 mm²
Drawings
Seria Name Eplan
Quadro - cable terminals
The System "Quadro"
RAR
27.23 MB
Certificates
Name Document
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1
PDF
1.30 MB
Declaration of conformity to TR TS 004/2011 for pre-insulated spade terminals_1
PDF
2.65 MB
