DIN-rail perforated type OMEGA 3AF, 35х15mm,.
Code: 02150
DIN-rail perforated type OMEGA 3AF, 35х15mm,.
Code: 02150
| Height, mm | 15 |
| Length, mm | 2000 |
| Material | Steel |
| Model | DIN rail (top hat rail) 35/15 mm |
| Punch shape | Long-slot |
| Drill hole distance centrically, mm | 25 |
| Surface finishing | Galvanic/electrolytic zinc plated |
| Material thickness, mm | 1.5 |
| Perforation | Yes |
| Width | 35 |
| Product type | DIN-rails |
Accessories

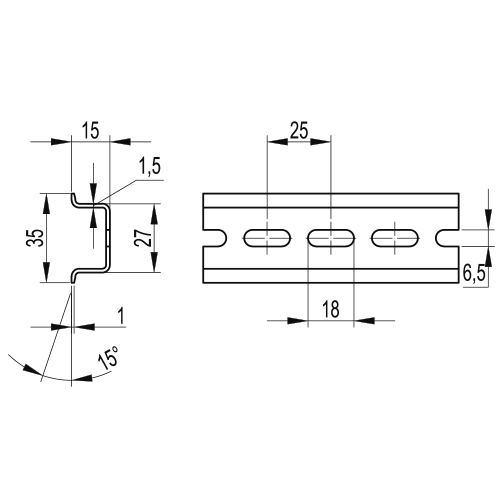

Drawings
| Seria | Name | Eplan |
|---|---|---|
|
DIN-rails and accessories - "Quadro"
|
