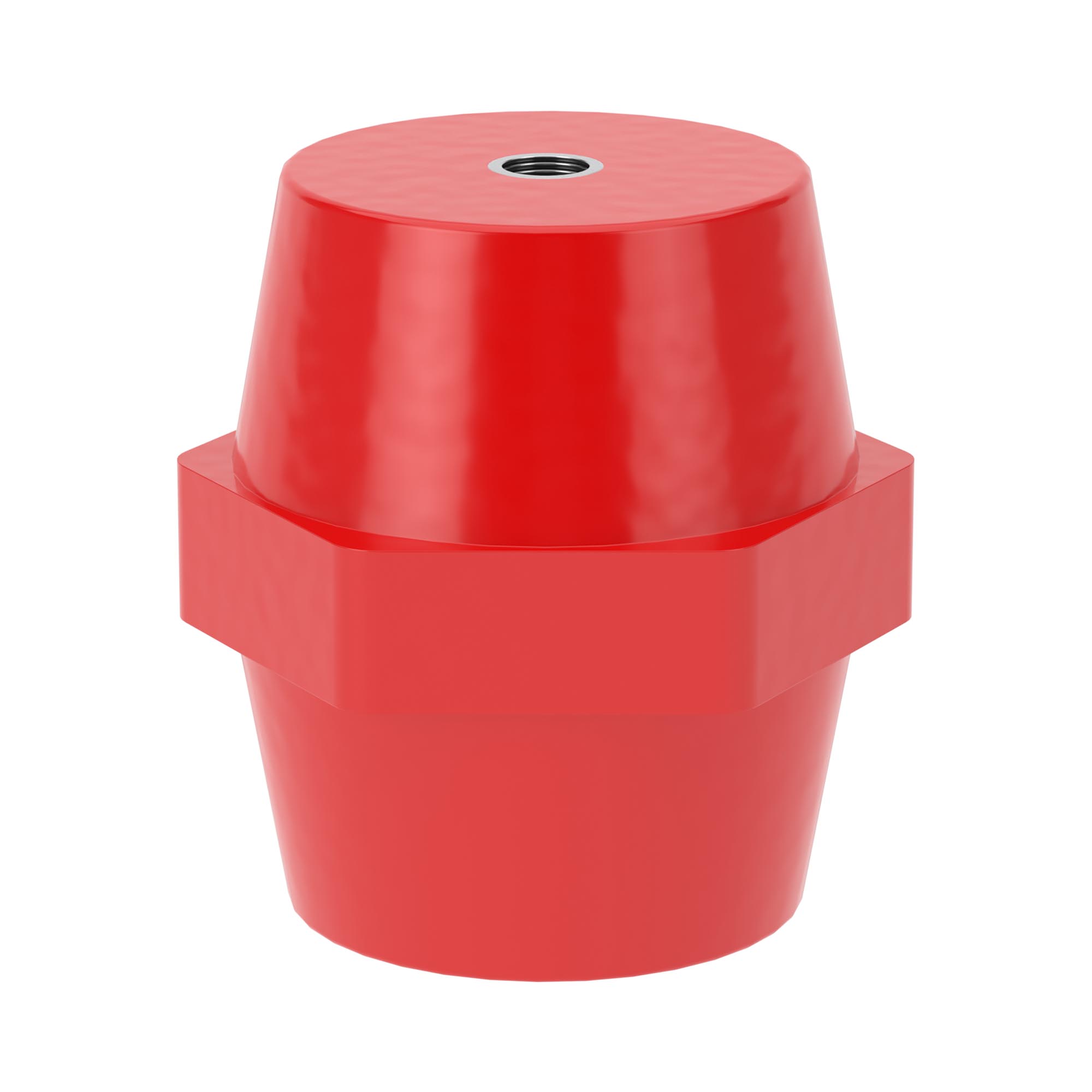

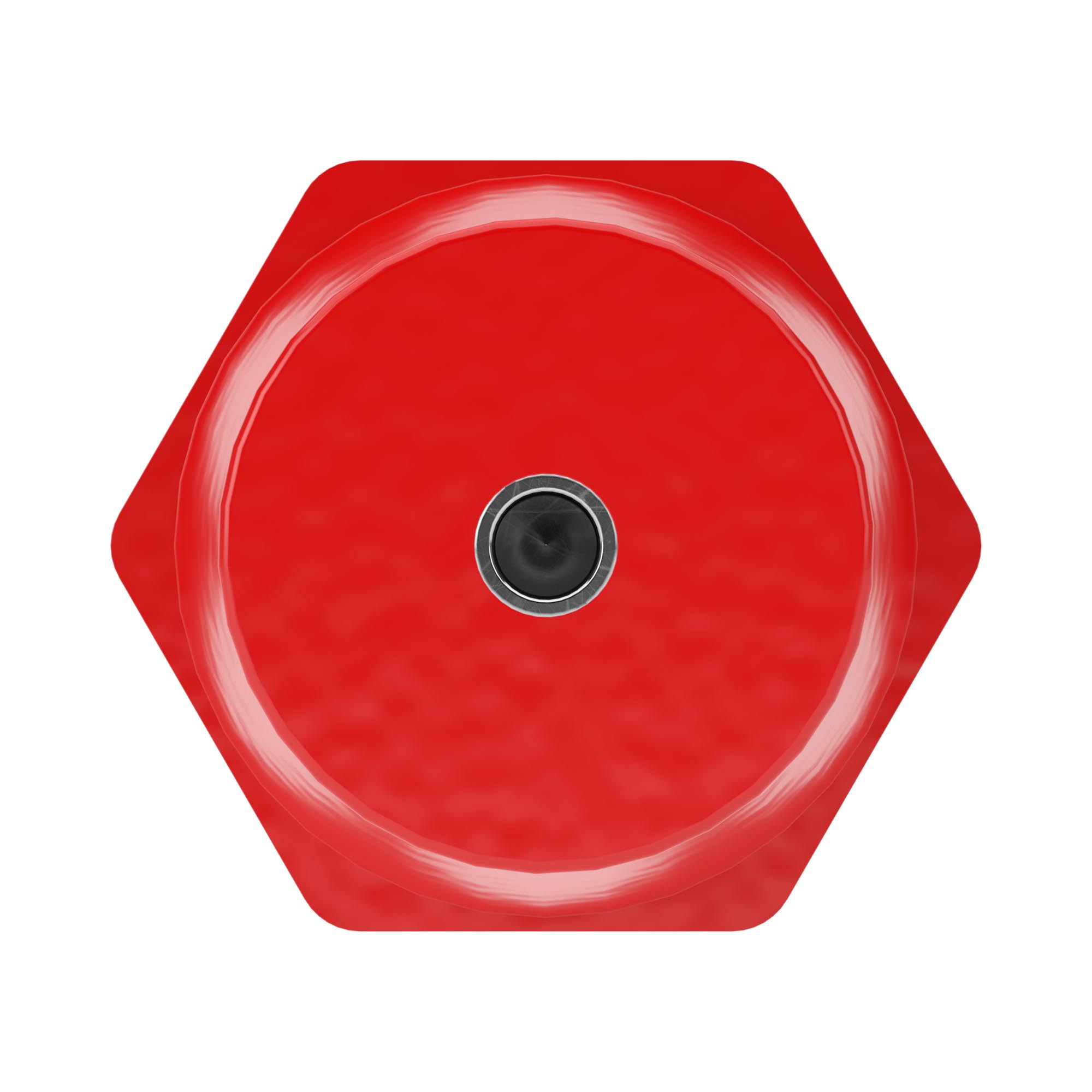

Busbar isolator 70х60 m8

Code: ISBK7057
Busbar isolator 70х60 m8
Busbar isolator 70х60 m8

Busbar isolator 70х60 m8

Code: ISBK7057
Bolt dimension (metric) 8
Length, mm 70
Outer diameter, mm 60
Product type Busbar isolators
Drawings
Seria Name Eplan
DIN-rails and accessories - "Quadro"
The System "Quadro"
RAR
27.23 Mb
Certificates
Name Document
Quadro_Busbar isolator - Exemption letter to Busbar isolator for сertificate of conformity to GOST R
PDF
5.56 MB
Quadro_Busbar isolator - Exemption letter for busbar isolator for fire certification_1
PDF
1.22 MB
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1
PDF
1.30 MB
