Color gray
Material PVC
Height, mm 16
Temperature of usage, °C -40/+130
Voltage of disruption, V 5500
Diameter (nominal), mm 12
Threading M5
Bolt dimension metric (M..) 5
Length, mm 16
Outer diameter, mm 15

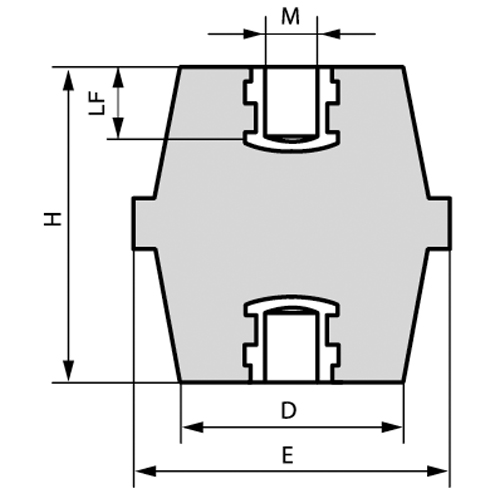

Drawings
Seria Name Eplan
