Busbar isolator 16х15 m4

Code: ISBK1506
Busbar isolator 16х15 m4
Busbar isolator 16х15 m4
Color gray
Material PVC
Height, mm 16
Temperature of operation, °C -40/+130
Voltage of disruption, V 5500
Diameter (nominal), mm 12
type of thread M4
Bolt dimension metric (M..) 4
Length, mm 16
Outer diameter, mm 15

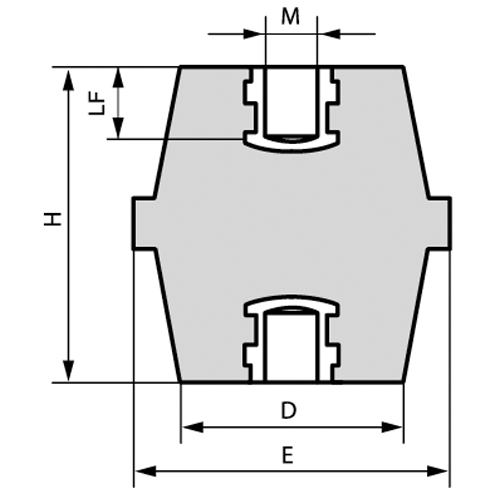

Drawings
Seria Name Eplan
Quadro - DIN-rails and accessories
The System "Quadro"
RAR
27.23 MB
Certificates
Name Document
Quadro_Busbar isolator - Exemption letter to Busbar isolator for сertificate of conformity to GOST R
PDF
5.56 MB
Quadro_Busbar isolator - Exemption letter for busbar isolator for fire certification_1
PDF
1.22 MB
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1
PDF
1.30 MB
