No name

Code: 02140SS

To ask a question

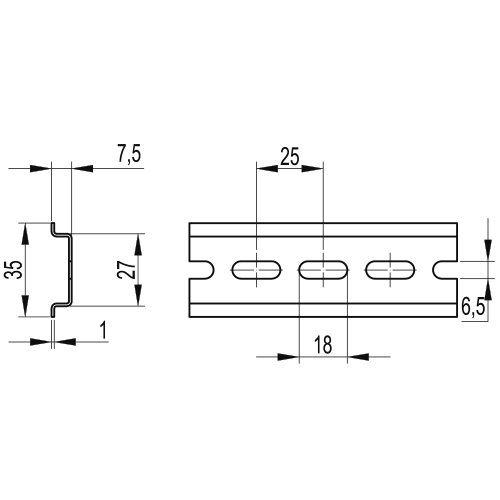

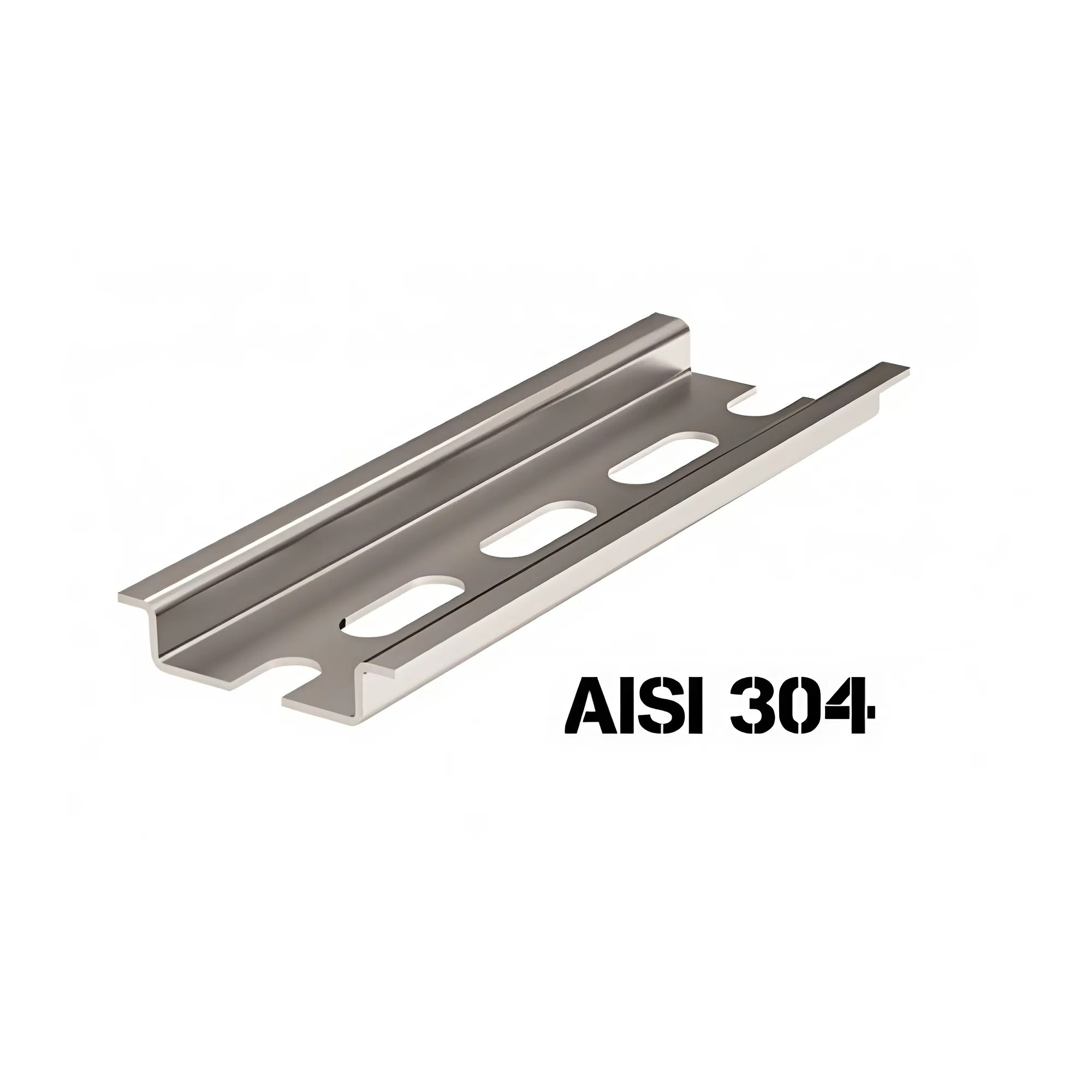

Model	DIN rail (top hat rail) 35/7.5 mm
Height, mm	7,5
Length, mm	2000
Punch shape	Long-slot
Material	Stainless steel

Drill hole distance centrically, mm	25
Type of surface	Untreated
Material thickness	1
Thickness, mm	1

Product type

DIN-rails
