Code: 02140-RET6
No name
No name

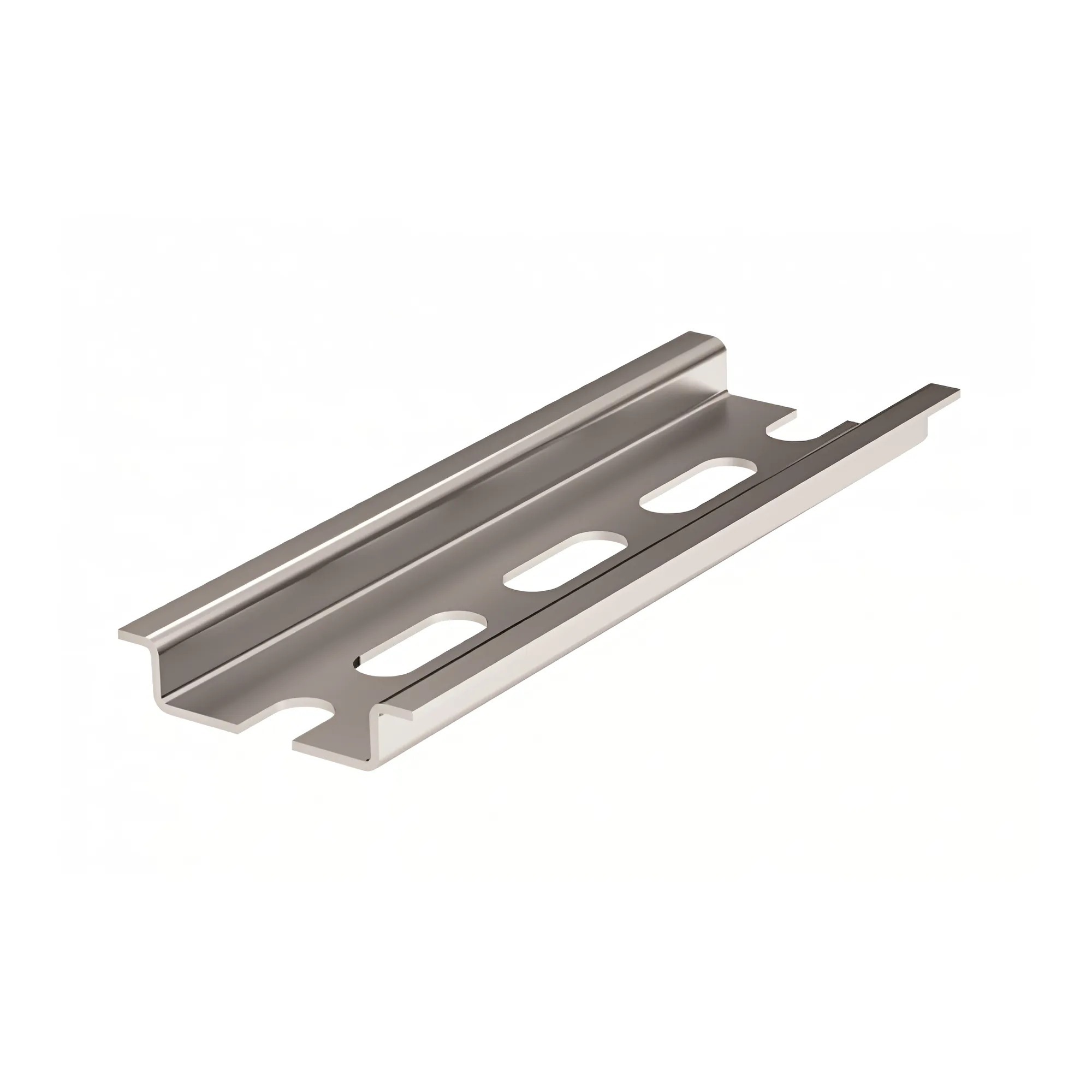

Model DIN rail (top hat rail) 35/7.5 mm
Height, mm 7,5
Length, mm 600
Material Steel
Thickness, mm 1,5
Punch shape Long-slot
Drill hole distance centrically, mm 25
Type of surface Galvanic/electrolytic zinc plated
Material thickness 1,5
Perforation Yes
Weidth 35 mm

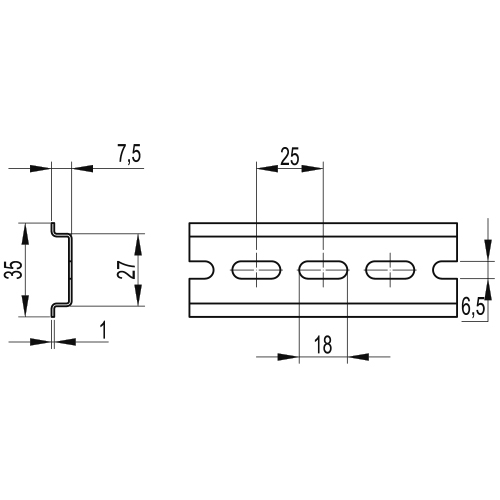

Drawings
Seria Name Eplan
Quadro - DIN-rails and accessories
The System "Quadro"
RAR
27.23 MB
Certificates
Name Document
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1
PDF
1.30 MB
