No name

Code: 02140-RET10

To ask a question
?

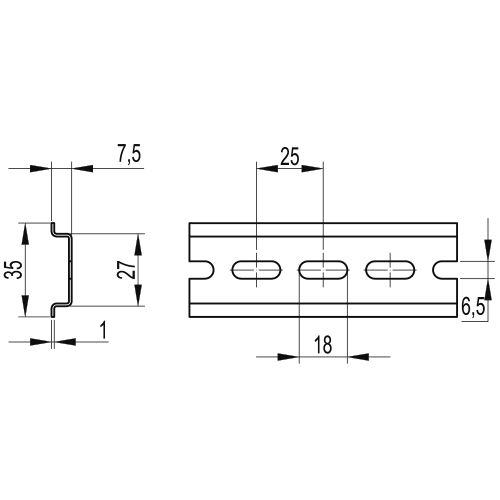

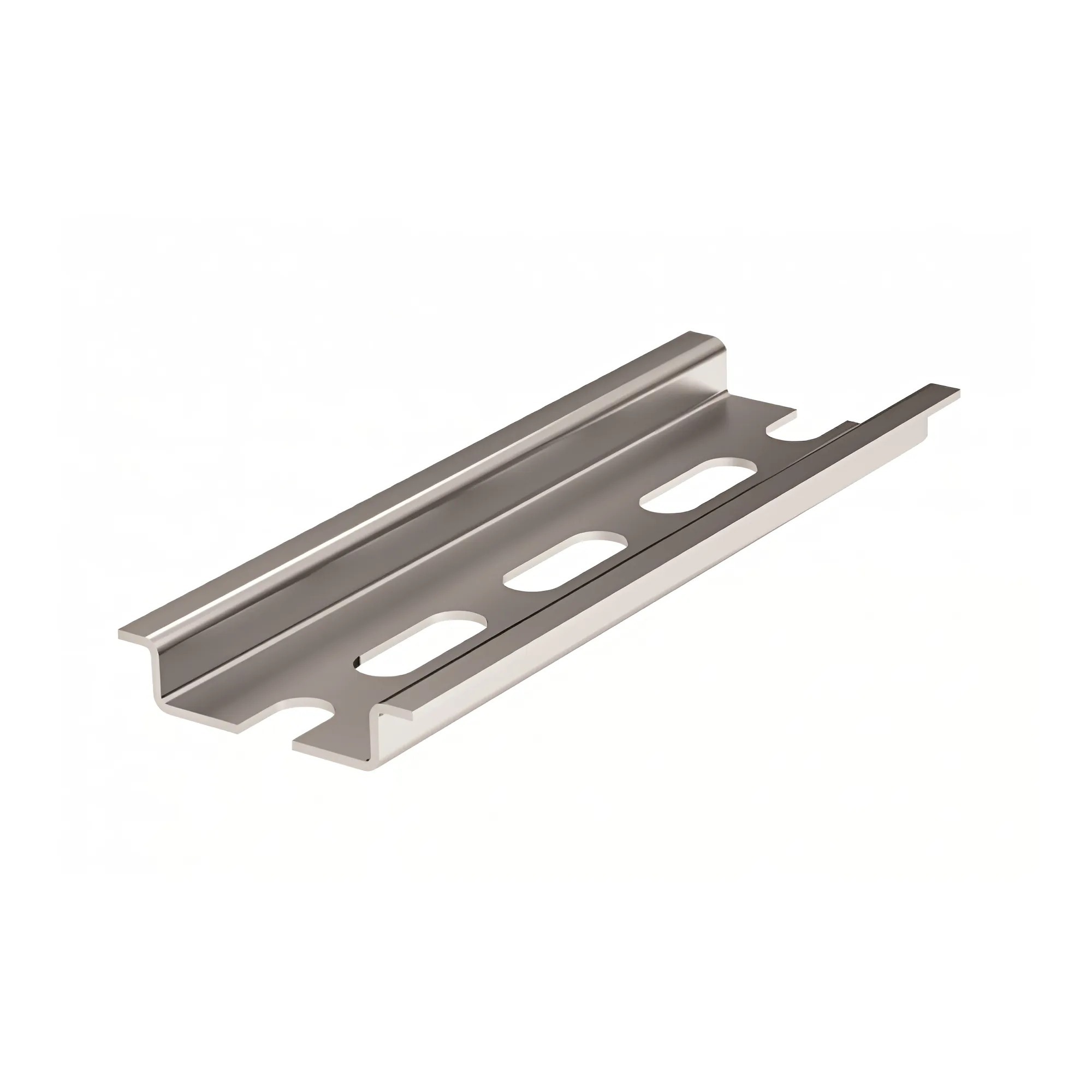

Model	DIN rail (top hat rail) 35/7.5 mm
Height, mm	7,5
Length, mm	1000
Material	Steel
Punch shape	Long-slot

Drill hole distance centrically, mm	25
Type of surface	Galvanic/electrolytic zinc plated
Material thickness	1
Thickness, mm	1

Perforation	Yes
Width	35

Product type

DIN-rails

Drawings

Seria	Name	Eplan
Quadro - DIN-rails and accessories	The System "Quadro"	RAR 27.23 MB

Certificates

Name	Document
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1	PDF 1.30 MB
