| Colour | Grey |
| Width, mm | 42.5 |
| Halogen free | Нет |
| Height, mm | 55.1 |
| Flexible | Да |
| Type of side wall | Hole-/slot punching |
| Self-extinguishing | Да |
| Length, mm | 500 |
| Type of fastening | Self-adhesive and floor perforation |
| Current leak stable | Нет |
| Useful cross section, mm² | 1546.4 |
| Distance of slots, mm | 12.5 |
| Slit width, mm | 7.5 |
| With cover | Нет |
| Color | gray |
| Material | PVC |
| Height, mm | 48.5 |
| Width, mm | 42.5 |
| Length, mm | 500 |
| Product type | Specialized perforated ducts |
Accessories

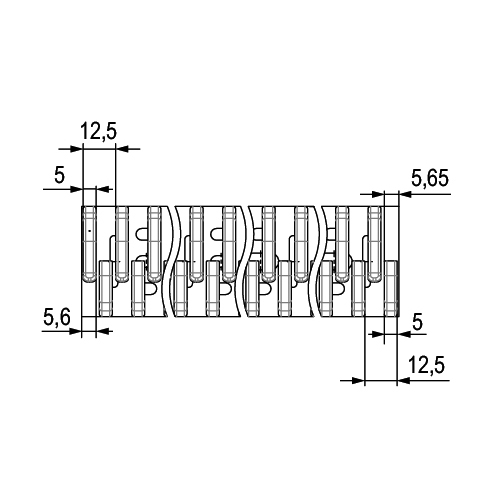

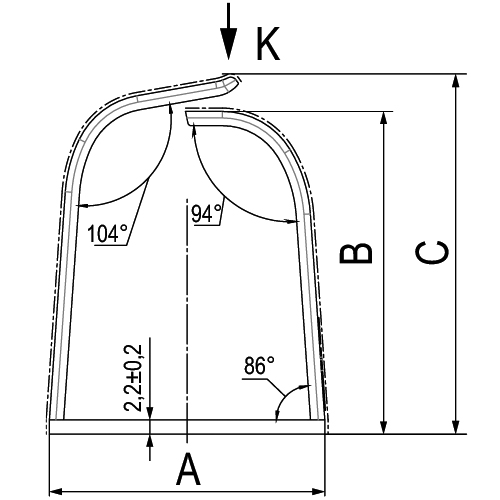

Drawings
| Seria | Name | Eplan |
|---|---|---|
|
Perforated ducts - "Quadro"
|
Certificates
| Name | Document |
|---|---|
