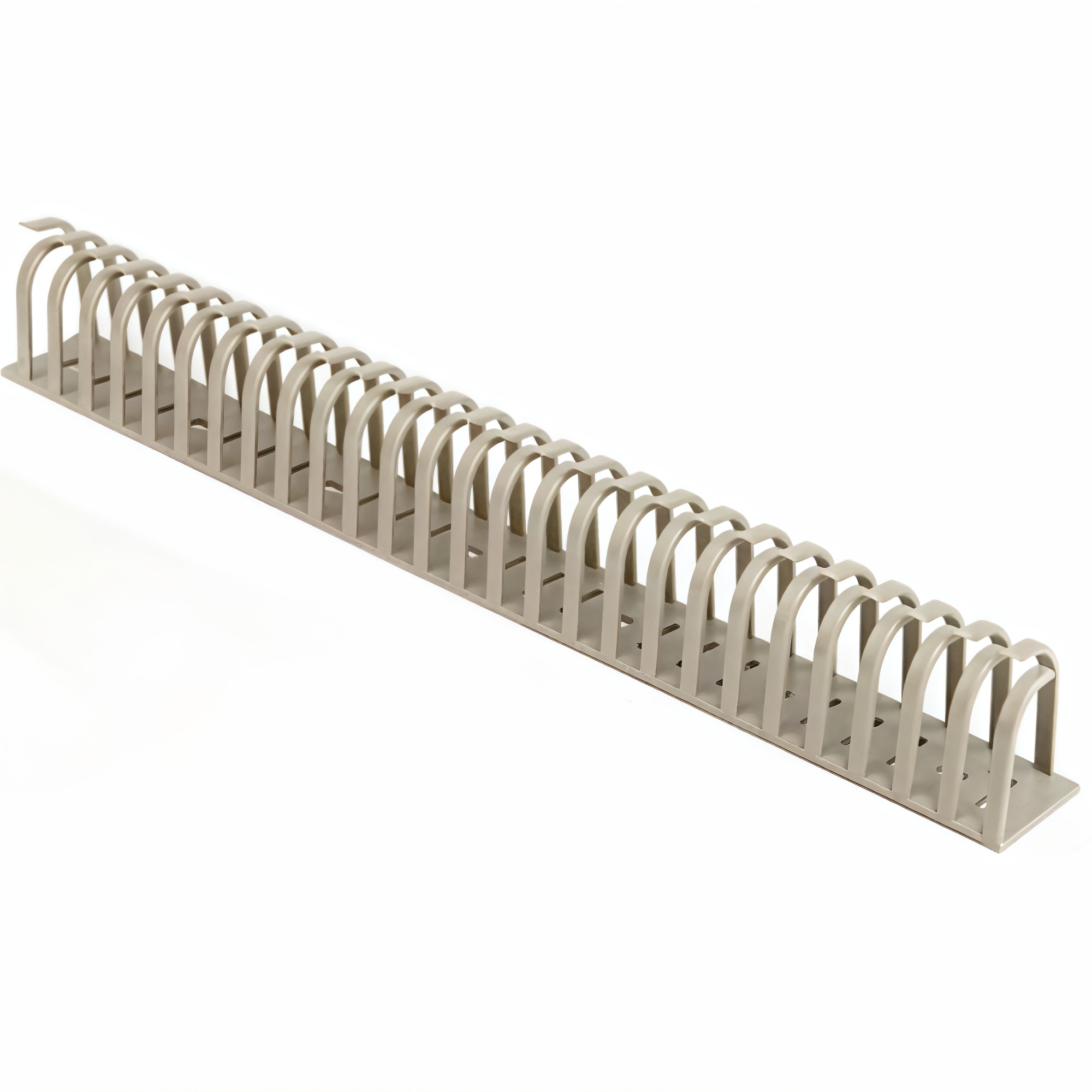

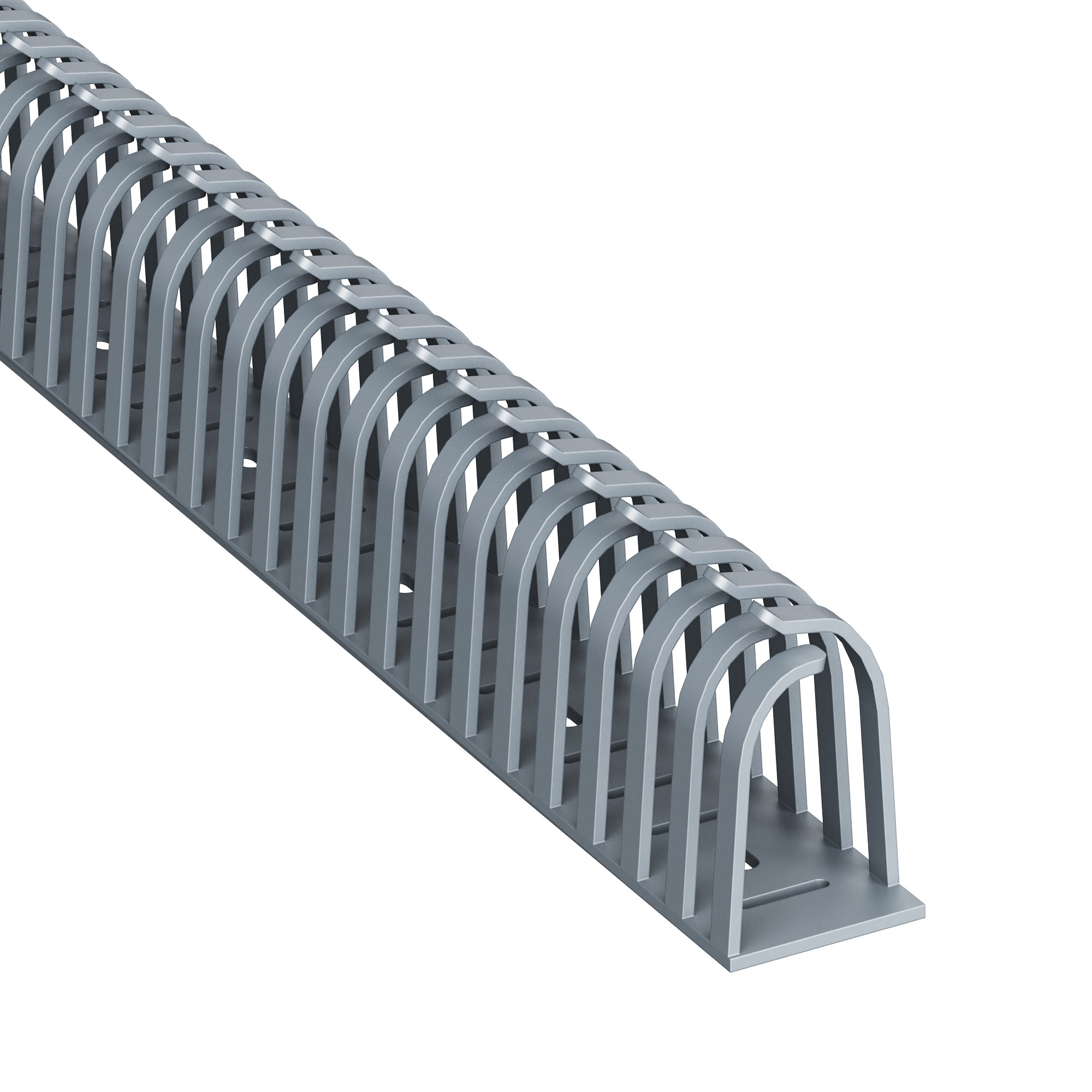

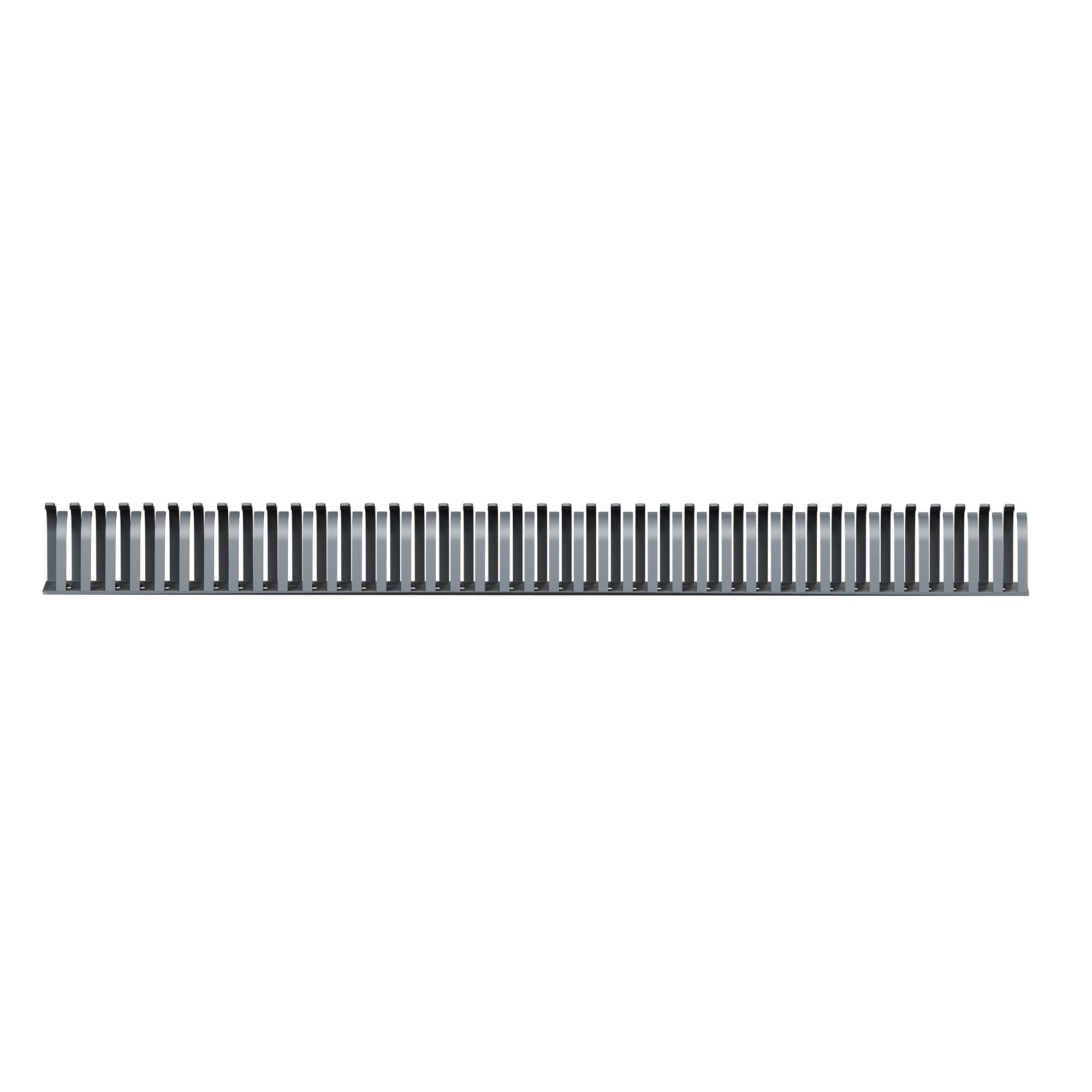

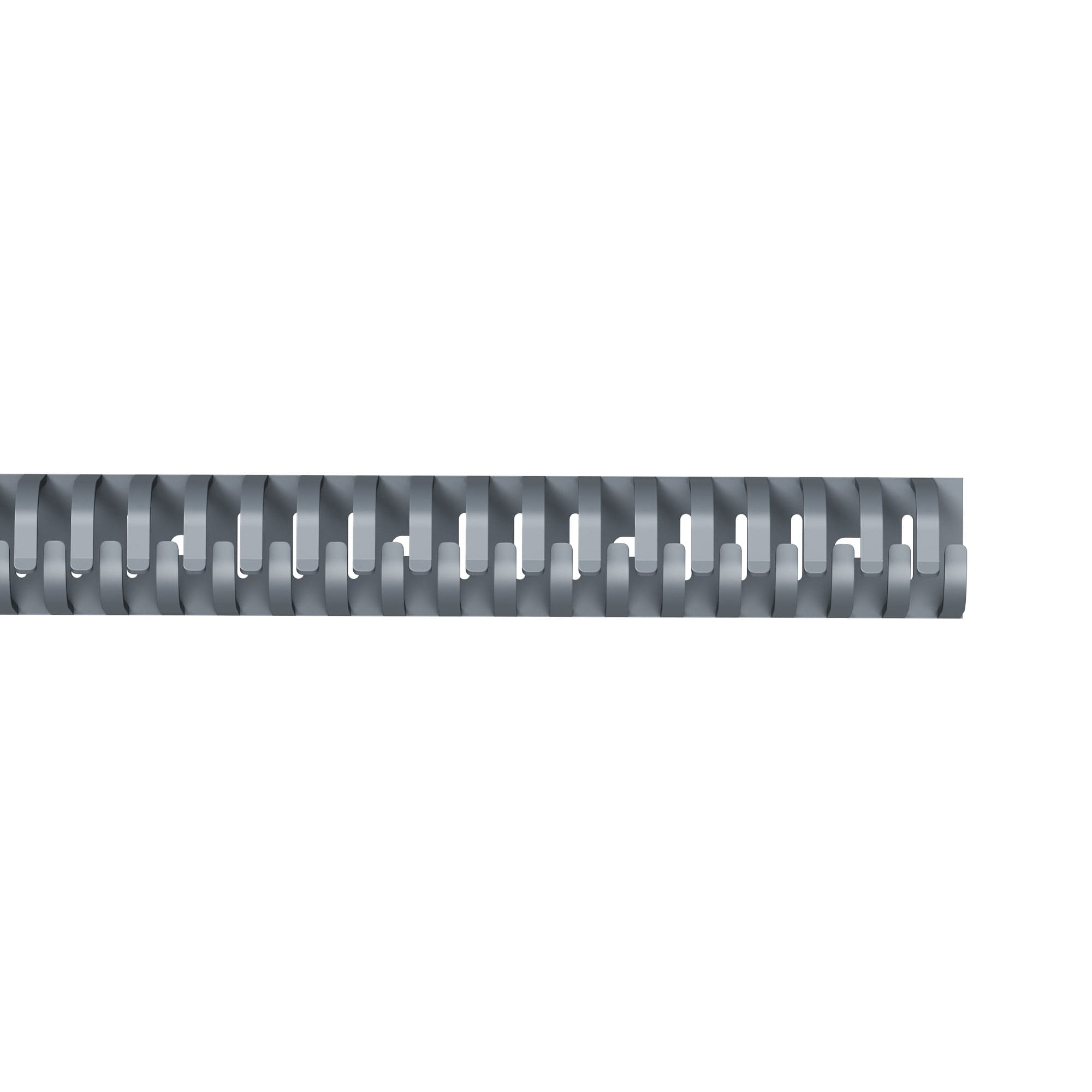

Flexible perforated duct, self-adhesive, FD32

Code: 02182

Width, mm	32
Length, mm	500

Length, mm	500
Type of fastening	Self-adhesive and floor perforation
Current leak stable	No
Useful cross section, mm²	1232

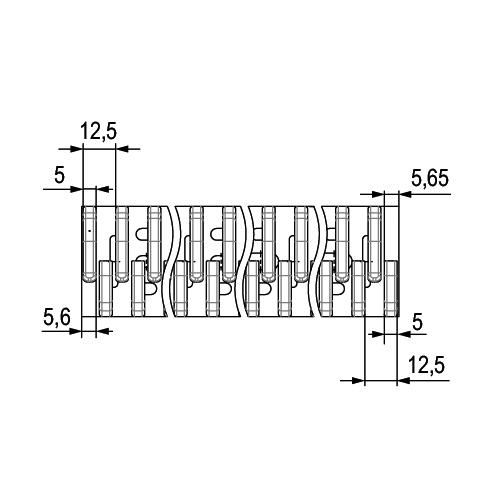

Distance of slots, mm	12.5
Slit width, mm	7.5
With cover	No

Kit holders perfoduct, for hole 22mm, 1 kit - 50 pcs.

Code: R5DPC22

Kit holders perfoduct, for hole 30mm, 1 kit - 30 pcs.

Code: R5DPC30

Kit holders perfoduct, for hole 96x96mm, 1 kit - 10 pcs.

Code: R5DPC96

Kit holders perfoduct, for hole 72x72mm, 1 kit - 10 pcs.

Code: R5DPC72

Tool FIXO RL4 for duct retainers DUCTAFIX RL4

Code: 06500RL

Tool FIXO RL6 for duct retainers DUCTAFIX RL6

Code: 06501RL

A support DINBLOK 3 for OMEGA profile

Code: 07103

Duct retainers DUCTAFIX RL4

Code: 06502RL

Duct retainers DUCTAFIX RL6

Code: 06511RL

Kit holders perfoduck, back, 4 pcs

Code: R5DSF01

Kit holders perfoduck, front, 4 pcs

Code: R5DSF02

FIXING INSERTS ZP1

Code: 06560

Seria	Name	Eplan
Quadro - perforated ducts	The System "Quadro"	RAR 27.23 MB

Name	Document
Quadro_Perforated straight elements - Exemption letter for fire safety certificates for accessories_1	PDF 1.22 MB
Quadro_Perforated ducts - Fire safety certificates for plastic ducts series Т1,Т1-Е,Т1-F,T1-EF,TD,TPD,DN-A,T1-N,T1-EN_1	PDF 3.87 MB
Quadro_Perforated ducts - Exemption letter Tool AN и 4I for electrical boxes	PDF 6.87 MB
Quadro_Perforated ducts - Fire safety certificates for electrical boxes	PDF 3.87 MB
Quadro_Perforated ducts - Certificate of conformity to GOST R for perforated duct seria RL	PDF 1.13 MB
Perforated ducts - Fire safety certificates for plastic ducts series RL6, RL12, RL75	PDF 2.39 MB
"Quadro"_Perforated ducts - Certificate of conformity to TÜV for perforated duct series RL6, RL12, RL75	PDF 1.59 MB
“Quadro”_Perforated ducts - EC Declaration of conformity signed for perforated duct series RL6, RL12, RL75	PDF 409.18 kB
“Quadro”_Perforated ducts - Certificate of conformity to EN for perforated duct series RL6, RL12, RL75	PDF 1.04 MB
“Quadro”_ Exemption Letter for perforated boxes	PDF 833.29 kB
