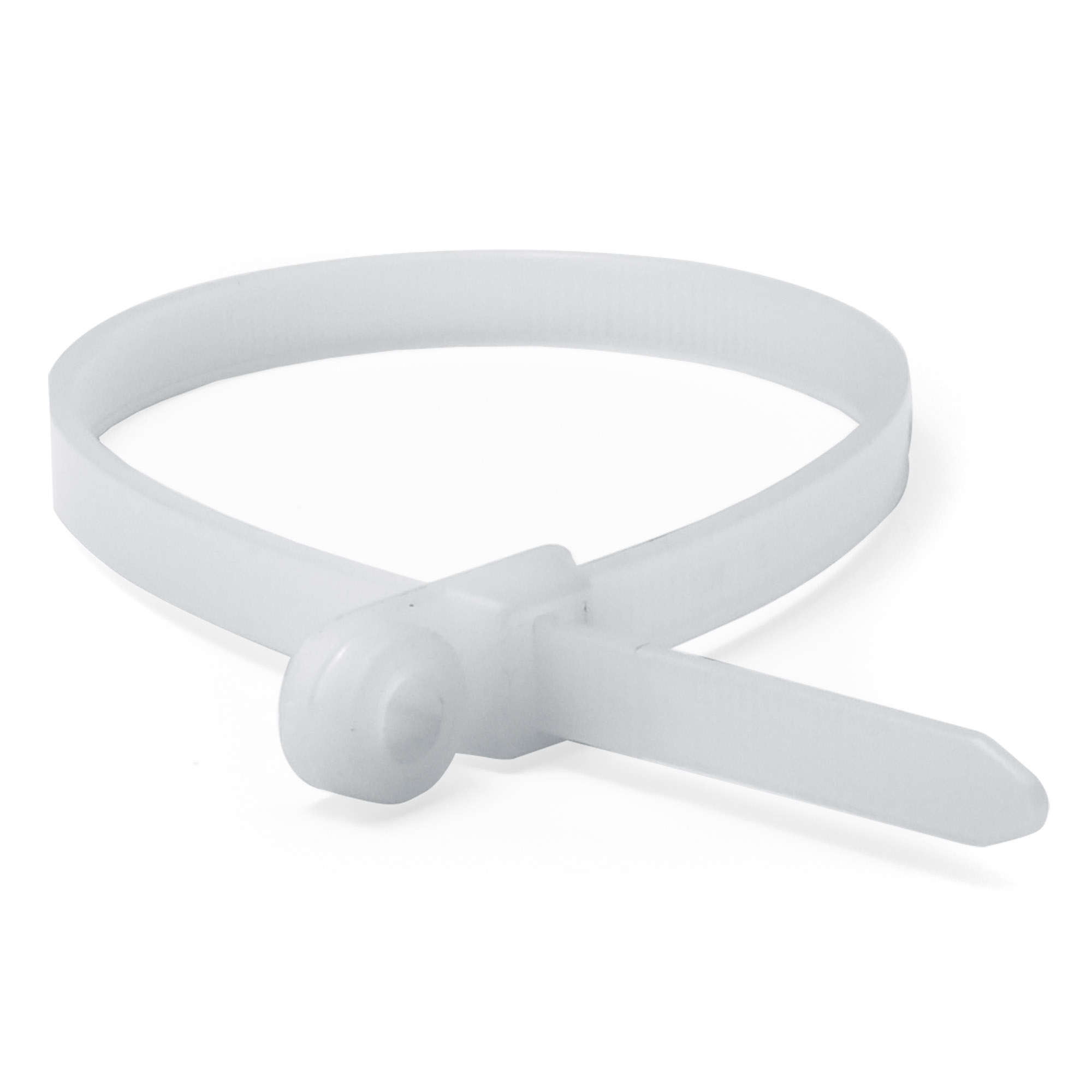

Cable ties P6.6 with mounting hole, white, 7,8x380

Code: 252380-H
Cable ties P6.6 with mounting hole, white, 7,8x380
Cable ties P6.6 with mounting hole, white, 7,8x380
Colour White
Model Internal toothing
Halogen free Yes
Length belt/tape/tie, mm 380
Text strip None
Surface protection Plastic-coated
Material quality Polyamide (PA)
Operating temperature, °C -40...85
Material Plastic
Type of fastening Other
Tie thickness, mm 7.8
Solvable fastener No
Band closure Plastic lip/-cam
Max. bundle diameter, mm 104
MIL approval No
Minimum holding force, N 540
UL approval No
UV-stable acc. ASTM D6779 No
VG approval No
Band width, mm 7.8
Mounting temperature, °C -10…60
Diameter mounting hole 6.5
Color White
Raw material PVC
Width, mm 7.8
Length, mm 380
Diameter of surrounding (max), mm 104
Diameter of surrounding (min), mm 4
Drawings
Seria Name Eplan
Quadro - cable ties
The System "Quadro"
RAR
27.23 MB
Certificates
Name Document
Quadro_Cable ties - Exemption letter for sanitary-epidemiological conclusion for pre-insulated ring terminals, cable ties and tools for cable ties cable
PDF
2.14 MB
Quadro_Cable ties - Exemption letter for сable ties
PDF
547.74 kB
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1
PDF
1.30 MB
