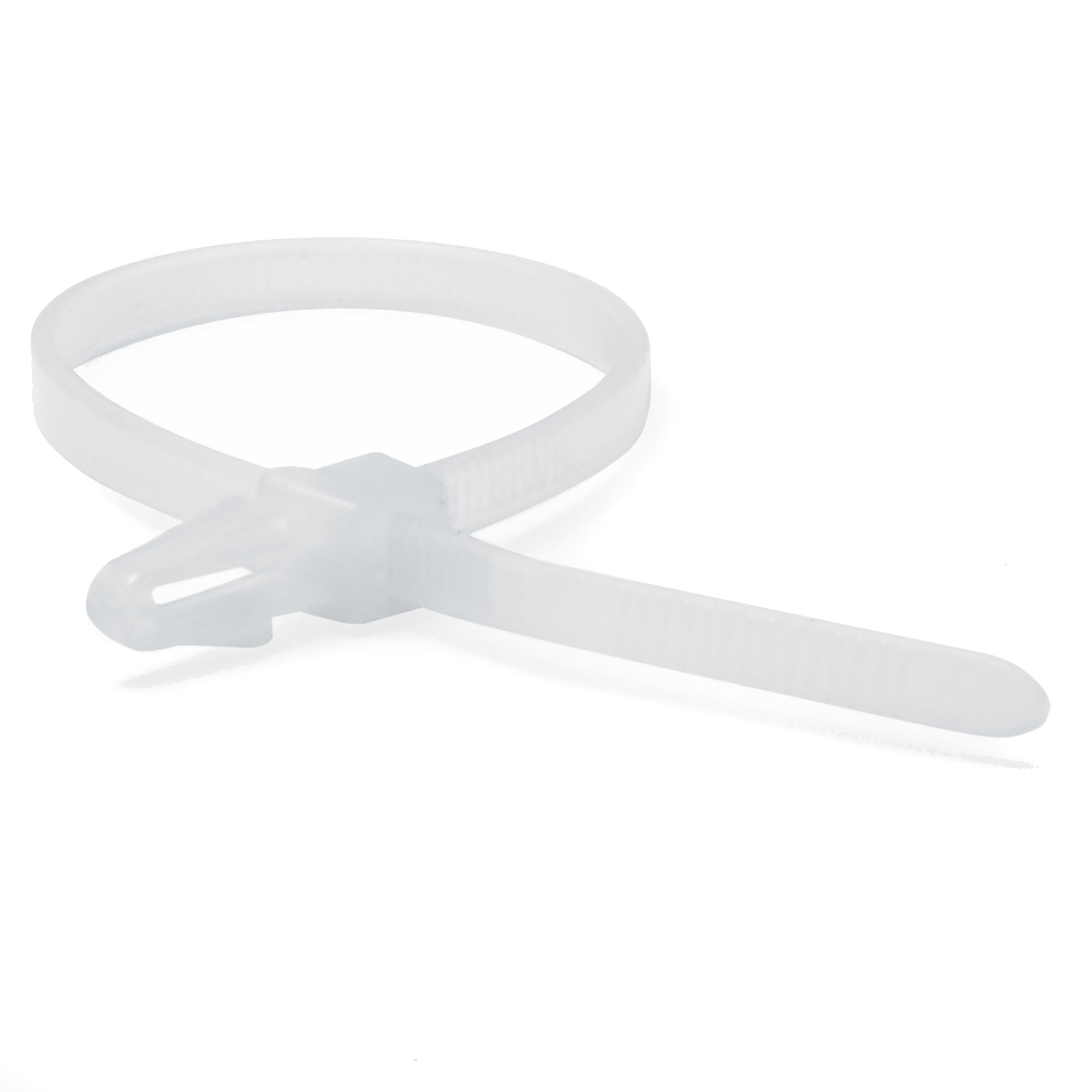

Cable ties P6.6 with base, white, 4,8x200

Code: 252205-M
Colour White
Model Internal toothing
Halogen free Yes
Length belt/tape/tie, mm 200
Text strip Adjacent to bundle
Surface protection Plastic-coated
Material quality Polyamide (PA)
Operating temperature, °C -40...85
Material Plastic
Type of fastening Other
Tie thickness, mm 4.8
Solvable fastener No
Band closure Plastic lip/-cam
Max. bundle diameter, mm 50
MIL approval No
Minimum holding force, N 220
UL approval No
UV-stable acc. ASTM D6779 No
VG approval No
Band width, mm 4.8
Mounting temperature, °C -10…60
Core diameter No
MIL specified 50
Color White
Raw material PVC
Width, mm 4.8
Length, mm 200
Diameter of surrounding (max), mm 50
Diameter of surrounding (min), mm 2
Drawings
Seria Name Eplan
Quadro - cable ties
