Cable ties P6.6 with mounting hole, white, 4.8x200

Code: 252200-S

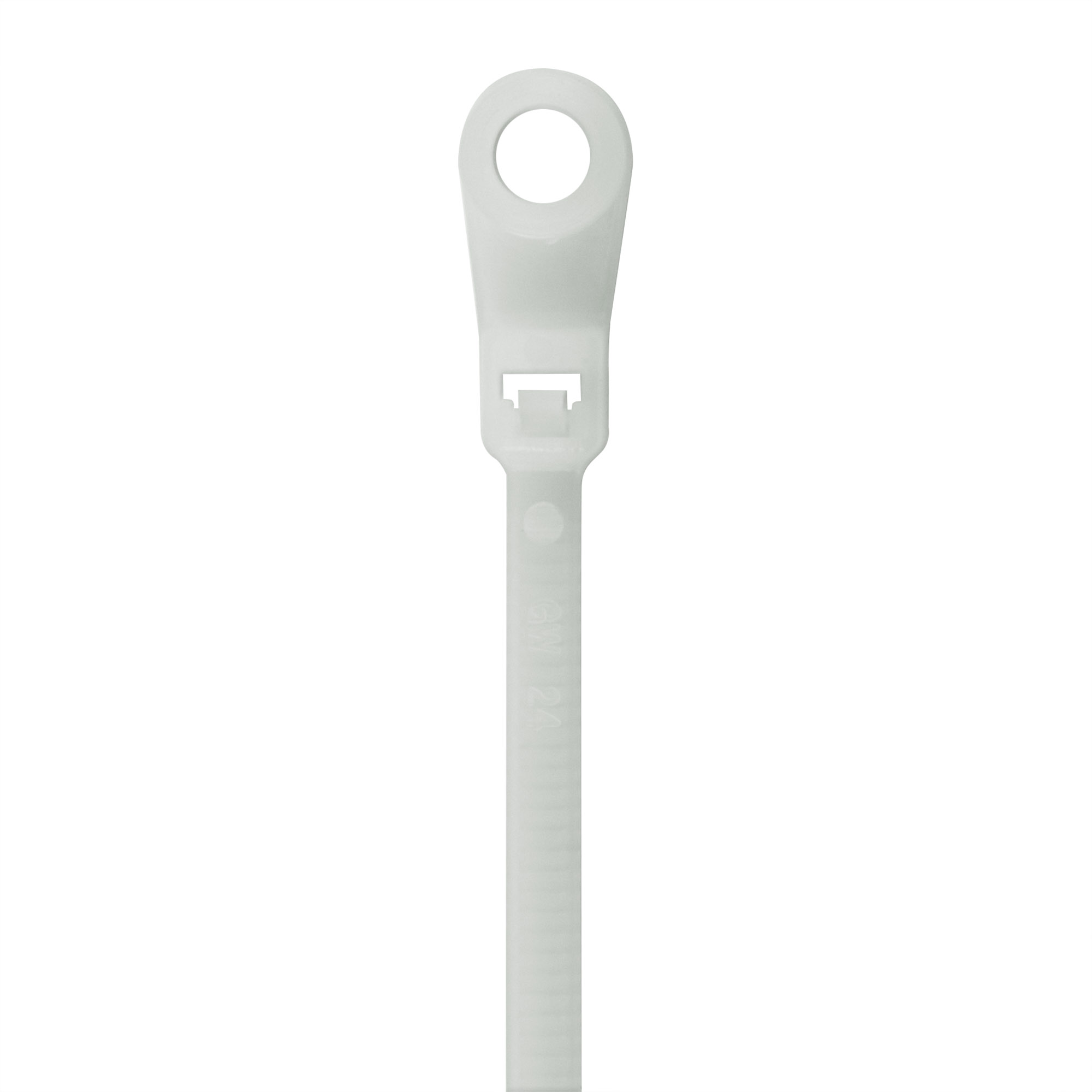

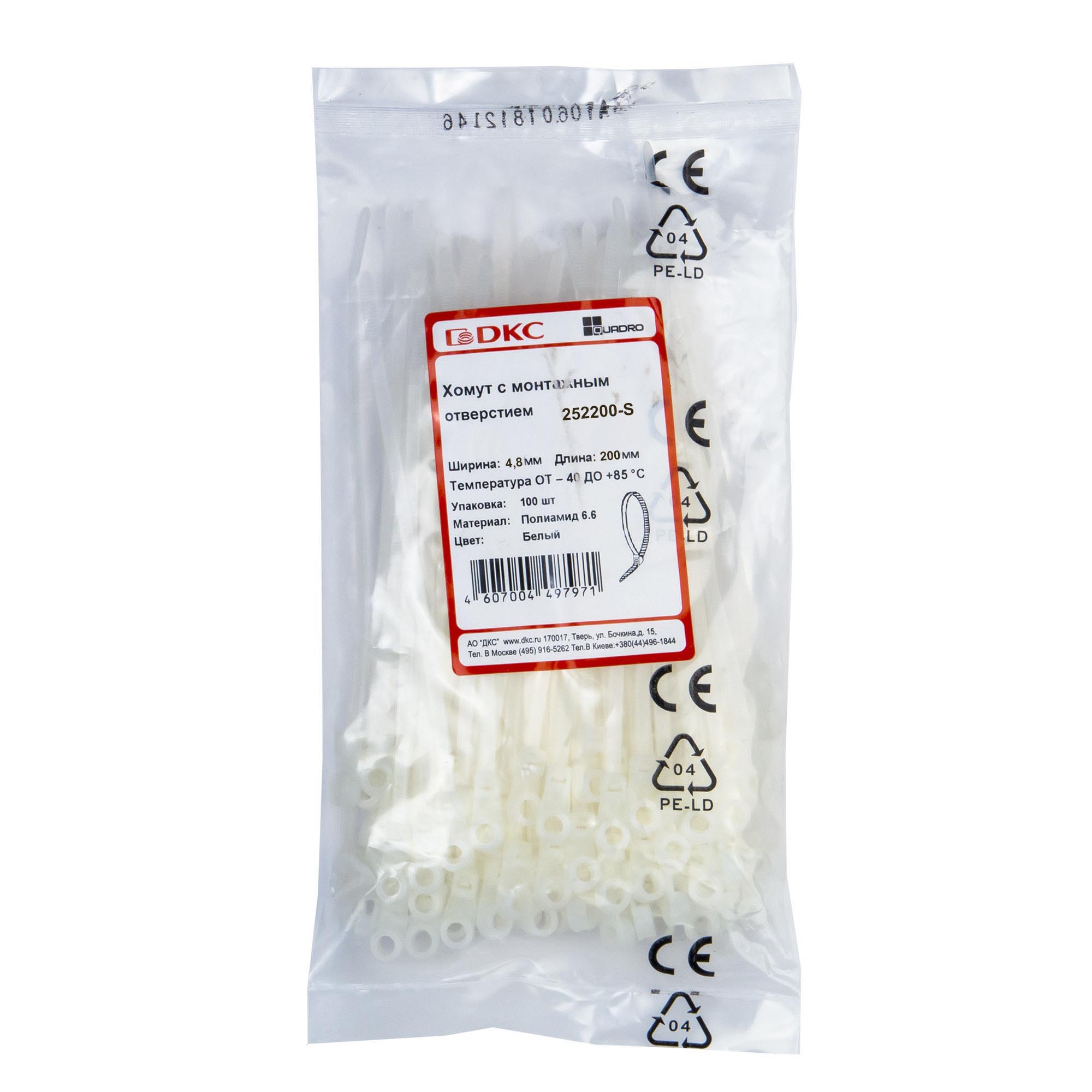

Cable ties P6.6 with mounting hole, white, 4.8x200
Cable ties P6.6 with mounting hole, white, 4.8x200
Colour White
Model Internal toothing
Halogen free Yes
Length belt/tape/tie, mm 200
Text strip Adjacent to bundle
Surface protection Plastic-coated
Material quality Polyamide (PA)
Operating temperature, °C -40...85
Material Plastic
Type of fastening Other
Tie thickness, mm 4.8
Solvable fastener No
Band closure Plastic lip/-cam
Max. bundle diameter, mm 44
MIL approval No
Minimum holding force, N 220
UL approval No
UV-stable acc. ASTM D6779 No
VG approval No
Band width, mm 4.8
Mounting temperature, °C -10…60
Core diameter No
MIL specified 44
Diameter mounting hole 5.2
Color White
Raw material PVC
Width, mm 4.8
Length, mm 200
Diameter of surrounding (max), mm 44
Diameter of surrounding (min), mm 4
Drawings
Seria Name Eplan
Quadro - cable ties
The System "Quadro"
RAR
27.23 MB
Certificates
Name Document
Quadro_Cable ties - Exemption letter for sanitary-epidemiological conclusion for pre-insulated ring terminals, cable ties and tools for cable ties cable
PDF
2.14 MB
Quadro_Cable ties - Exemption letter for сable ties
PDF
547.74 kB
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1
PDF
1.30 MB
