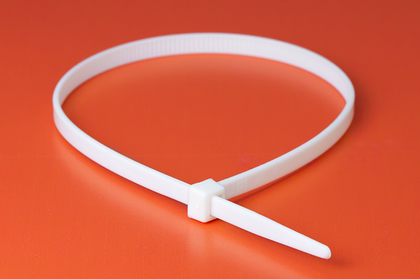

Self extinguishing cable ties P6.6. white, 4,8x200

Code: 25215CV0
Self extinguishing cable ties P6.6. white, 4,8x200
Self extinguishing cable ties P6.6. white, 4,8x200
Colour White
Model Internal toothing
Halogen free Yes
Length belt/tape/tie, mm 200
Text strip None
Surface protection Plastic-coated
Material quality Polyamide (PA)
Operating temperature, °C -40...85
Material Plastic
Type of fastening Other
Tie thickness, mm 4.8
Solvable fastener No
Band closure Plastic lip/-cam
Max. bundle diameter, mm 50
MIL approval No
Minimum holding force, N 220
UL approval No
UV-stable acc. ASTM D6779 No
VG approval No
Band width, mm 4.8
Mounting temperature, °C -10…60
Color White
Raw material PVC
Width, mm 4.8
Length, mm 200
Drawings
Seria Name Eplan
Quadro - cable ties
The System "Quadro"
RAR
27.23 MB
Certificates
Name Document
Quadro_Cable ties - Exemption letter for sanitary-epidemiological conclusion for pre-insulated ring terminals, cable ties and tools for cable ties cable
PDF
2.14 MB
Quadro_Cable ties - Exemption letter for сable ties
PDF
547.74 kB
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1
PDF
1.30 MB
