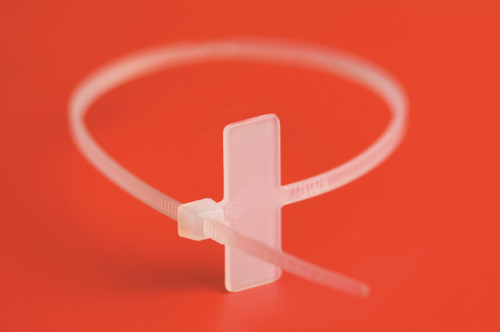

Cable ties P6.6 marking, white, 2,5х100, plate 8х25,4

Code: 252100-M
Colour White
Model Internal toothing
Halogen free Yes
Length belt/tape/tie, mm 100
Text strip Adjacent to bundle
Surface protection Plastic-coated
Material quality Polyamide (PA)
Operating temperature, °C -40...85
Material Plastic
Type of fastening Other
Tie thickness, mm 2.5
Solvable fastener No
Band closure Plastic lip/-cam
Max. bundle diameter, mm 20
MIL approval No
Minimum holding force, N 81.6
UL approval No
UV-stable acc. ASTM D6779 No
VG approval No
Band width, mm 2.5
Mounting temperature, °C -10…60
Core diameter No
MIL specified 20
Color White
Raw material PVC
Width, mm 2.5
Length, mm 100
Diameter of surrounding (max), mm 20
Diameter of surrounding (min), mm 6
Drawings
Seria Name Eplan
Quadro - cable ties
