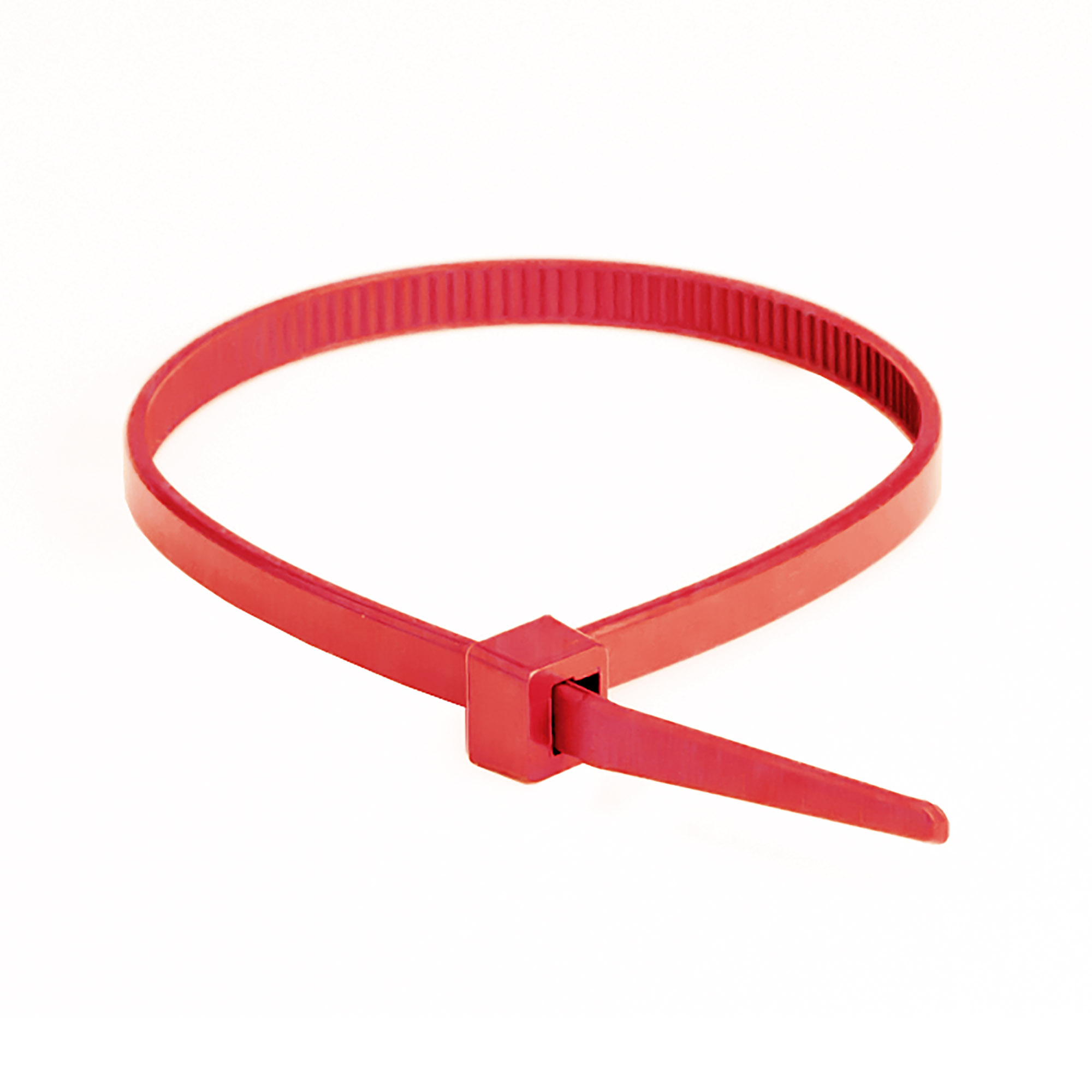

Cable Tie from P6.6, colored red 4.8x200 mm

Code: 25215SRCR
Cable Tie from P6.6, colored red 4.8x200 mm
  • To ask a question
Colour Red
Model Internal toothing
Halogen free Yes
Length belt/tape/tie, mm 200
Text strip None
Surface protection Plastic-coated
Material quality Polyamide (PA)
Material Plastic
Operating temperature, °C -40...85
Tie thickness, mm 1.2
Solvable fastener Yes
Band closure Plastic lip/-cam
Max. bundle diameter, mm 49.5
Min. holding force, N 220
Band width, mm 4.8
Mounting temperature, °C -20...85
Drawings
Seria Name Eplan
Cable ties - "Quadro"
