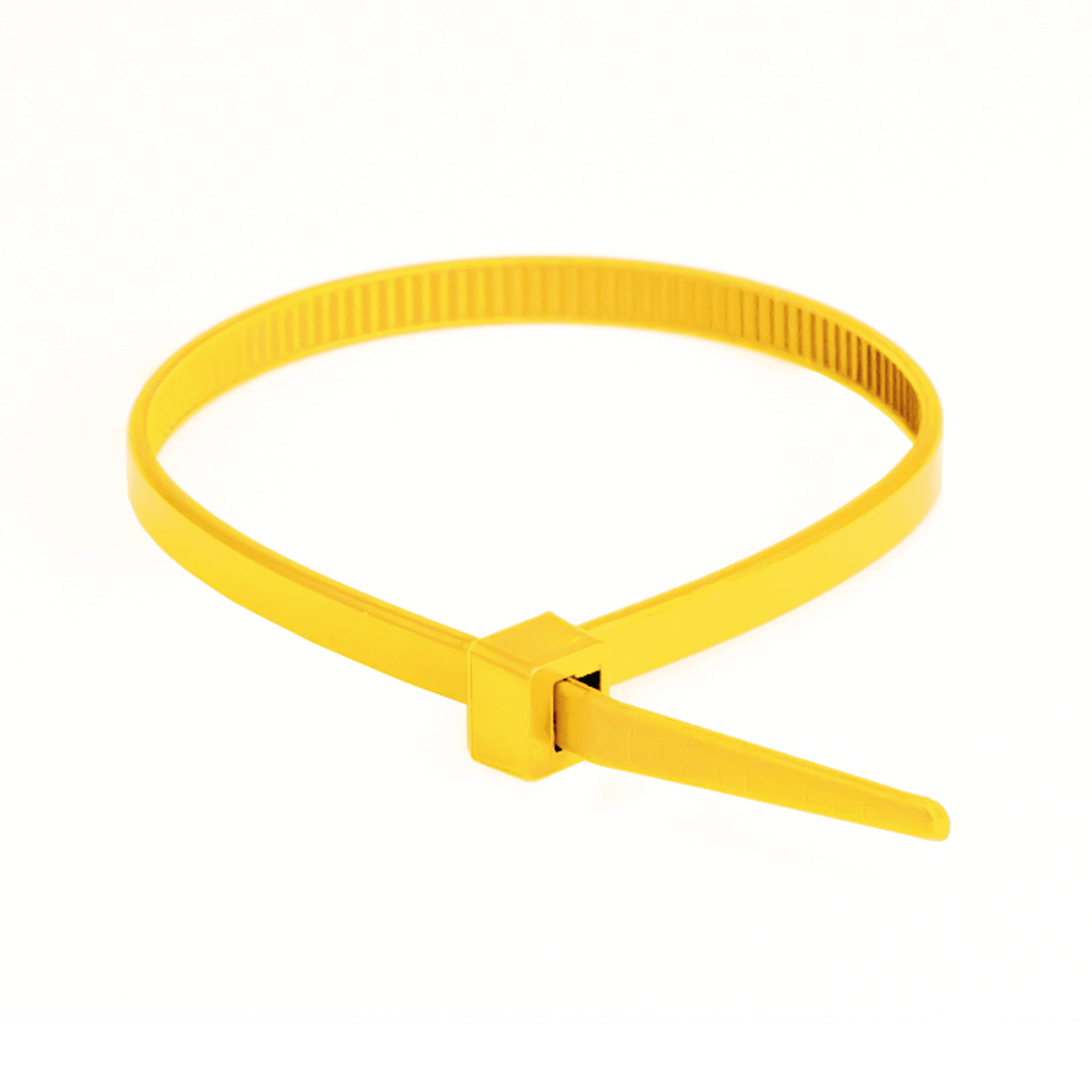

Cable Tie from P6.6, colored yellow 3.6x140 mm
Code: 25209SRCY
Cable Tie from P6.6, colored yellow 3.6x140 mm
Code: 25209SRCY
Colour | Yellow |
Model | Internal toothing |
Halogen free | Yes |
Length belt/tape/tie, mm | 140 |
Text strip | None |
Surface protection | Plastic-coated |
Material quality | Polyamide (PA) |
Material | Plastic |
Operating temperature, °C | -40...85 |
Tie thickness, mm | 1.15 |
Solvable fastener | Yes |
Band closure | Plastic lip/-cam |
Max. bundle diameter, mm | 33 |
Min. holding force, N | 180 |
Band width, mm | 3.6 |
Mounting temperature, °C | -20...85 |
Type of fastening | Other |
Inflammability class of insulation material according to with UL94 | V2 |
