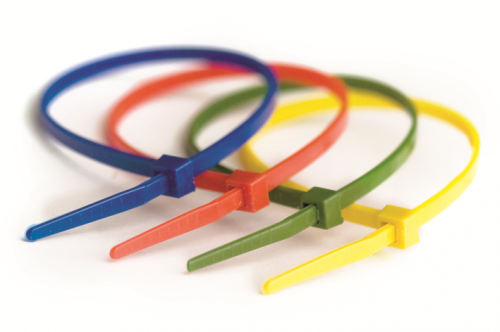

Cable ties P6.6 standard red 3,6х140 (new analog 25209SRCR )
Code: 25209CR
Cable ties P6.6 standard red 3,6х140 (new analog 25209SRCR )
Code: 25209CR
| Colour | Red |
| Model | Internal toothing |
| Halogen free | Yes |
| Length belt/tape/tie, mm | 140 |
| Text strip | None |
| Surface protection | Plastic-coated |
| Material quality | Polyamide (PA) |
| Material | Plastic |
| Tie thickness, mm | 1.1 |
| Solvable fastener | Yes |
| Band closure | Plastic lip/-cam |
| Max. bundle diameter, mm | 35 |
| Min. holding force, N | 130 |
| Band width, mm | 3.6 |
| Mounting temperature, °C | -10...60 |
| Operating temperature, °C | -40...85 |
| Type of fastening | Other |
| Inflammability class of insulation material according to with UL94 | V2 |
| Product type | Special cable ties |
