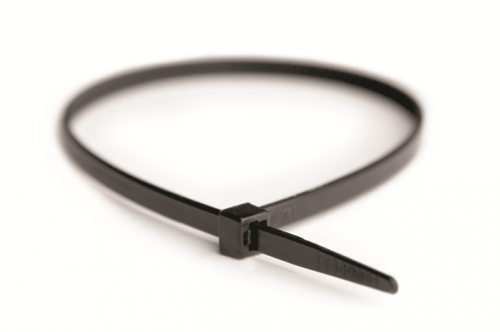

Cable ties P6.6 standard black, 12,5х225 (new analog 25335SR )

Code: 25335

Cable ties P6.6 standard black, 12,5х225 (new analog 25335SR )

Code: 25335
Removed from the product range
Colour Black
Model Internal toothing
Halogen free Yes
Length belt/tape/tie, mm 225
Text strip None
Surface protection Plastic-coated
Material quality Polyamide (PA)
Material Plastic
Tie thickness, mm 1.8
Solvable fastener Yes
Band closure Plastic lip/-cam
Max. bundle diameter, mm 57
Min. holding force, N 1080
Band width, mm 12.5
Mounting temperature, °C -10...60
Operating temperature, °C -40...85
Type of fastening Other
Inflammability class of insulation material according to with UL94 V2
Product type Cable ties, polyamide 6.6
Drawings
Seria Name Eplan
Cable ties Quadro
