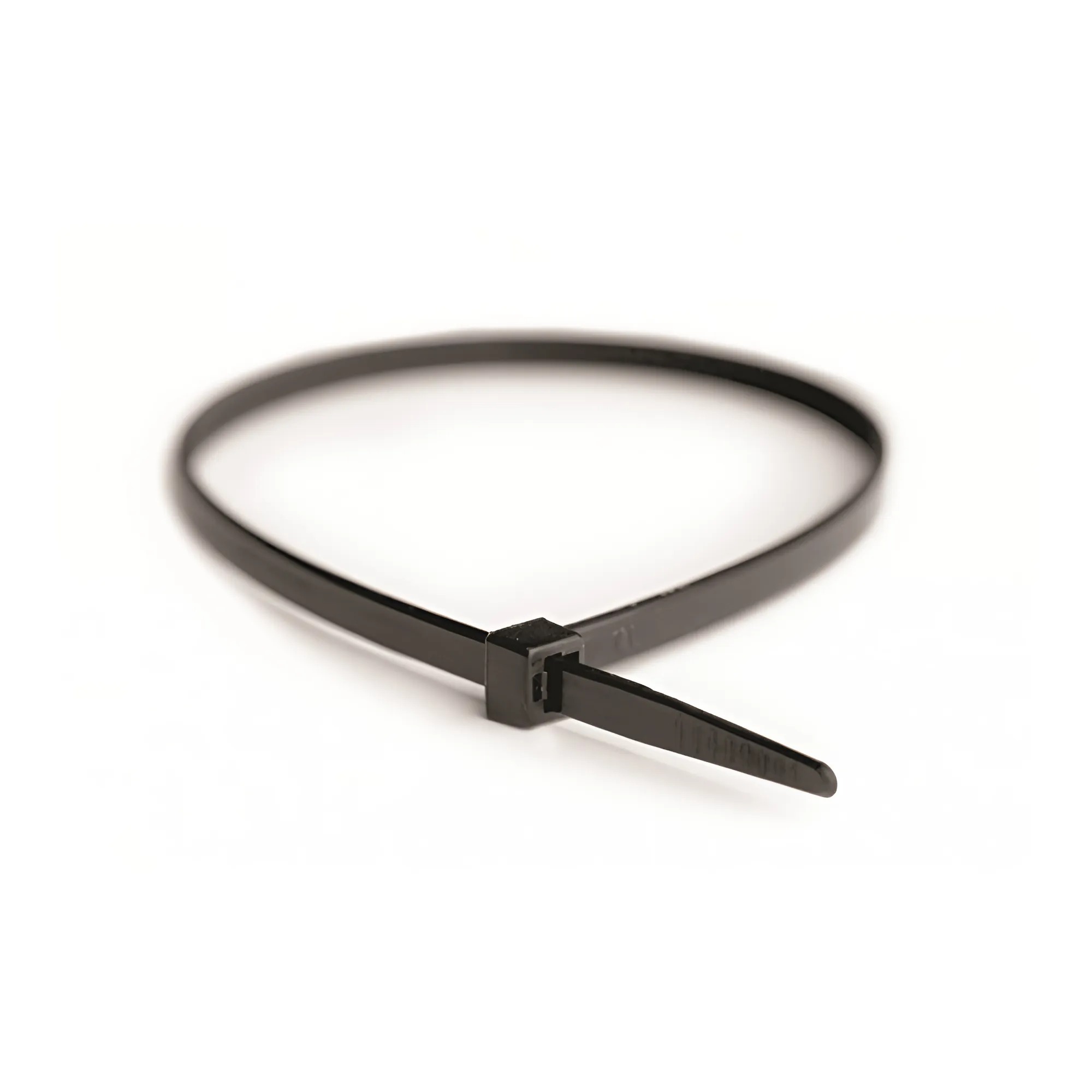

Cable ties P6.6 standard black, 7,8x240

Code: 25325
Colour Black
Model Internal toothing
Halogen free Yes
Length belt/tape/tie, mm 240
Text strip None
Surface protection Plastic-coated
Material quality Polyamide (PA)
Operating temperature, °C -40...85
Material Plastic
Type of fastening Other
Tie thickness, mm 7.8
Solvable fastener No
Band closure Plastic lip/-cam
Max. bundle diameter, mm 63
MIL approval No
Minimum holding force, N 540
UL approval No
UV-stable acc. ASTM D6779 No
VG approval No
Band width, mm 7.8
Mounting temperature, °C -10…60
Color Black
Raw material PVC
Width, mm 7.8
Length, mm 240
Diameter of surrounding (max), mm 63
Diameter of surrounding (min), mm 3.5
Drawings
Seria Name Eplan
Quadro - cable ties
