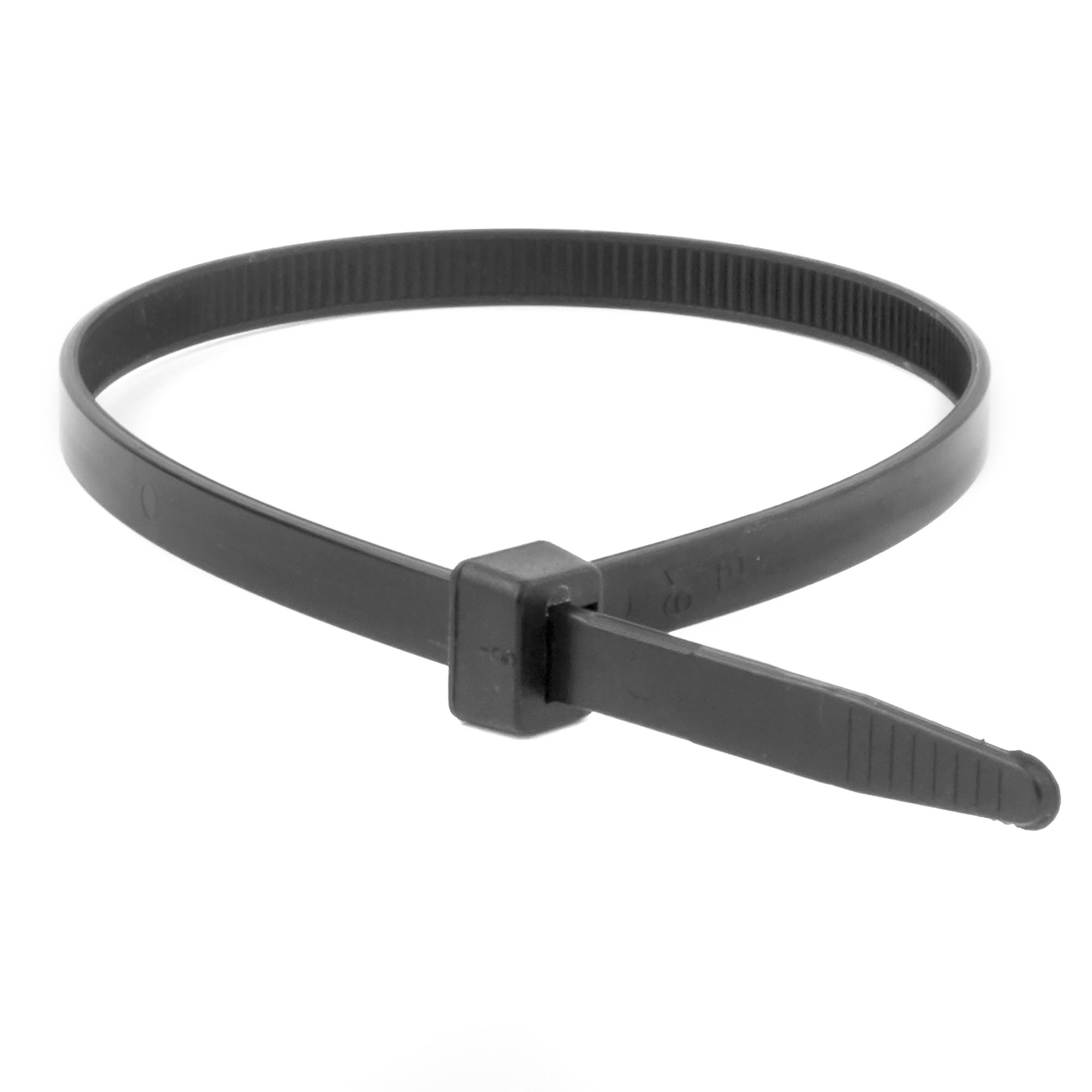

Cable ties P6.6 standard black, 4,8x250

Code: 25316
Cable ties P6.6 standard black, 4,8x250
Cable ties P6.6 standard black, 4,8x250
Colour Black
Model Internal toothing
Halogen free Yes
Length belt/tape/tie, mm 250
Text strip None
Surface protection Plastic-coated
Material quality Polyamide (PA)
Operating temperature, °C -40...85
Material Plastic
Type of fastening Other
Tie thickness, mm 1.35
Solvable fastener No
Band closure Plastic lip/-cam
Max. bundle diameter, mm 103
MIL approval No
Minimum holding force, N 220
UL approval No
UV-stable acc. ASTM D6779 No
VG approval No
Band width, mm 4.8
Mounting temperature, °C -10…60
Color Black
Raw material PVC
Width, mm 4.8
Length, mm 250
Diameter of surrounding (max), mm 103
Diameter of surrounding (min), mm 2
Accessories
Mounting base double adhesive (special acrylic composition), white, 27x27
Mounting base double adhesive (special acrylic composition), white, 27x27
Code: 254733MV
Mounting base double adhesive (special acrylic composition), black 27x27
Mounting base double adhesive (special acrylic composition), black 27x27
Code: 254753MV
