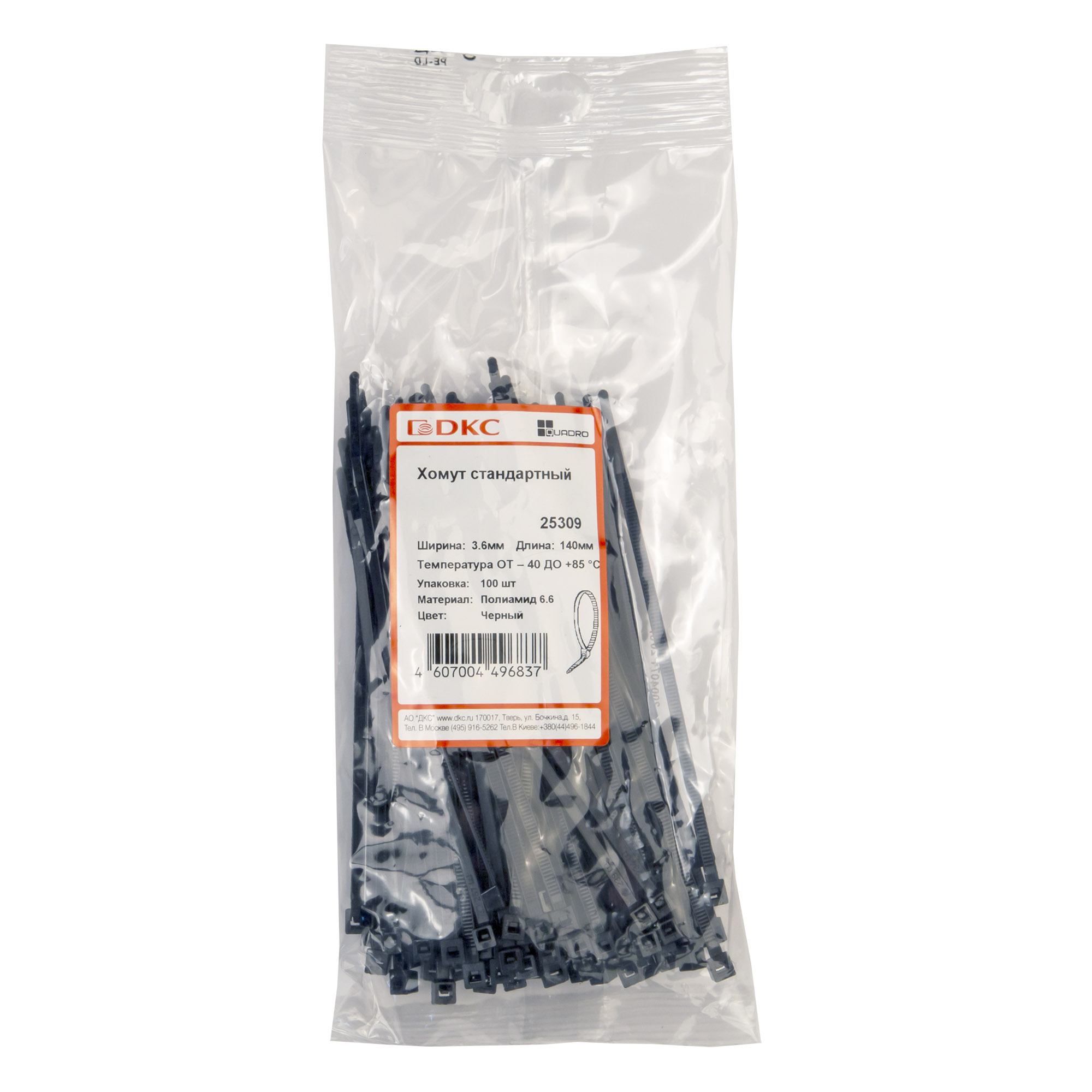

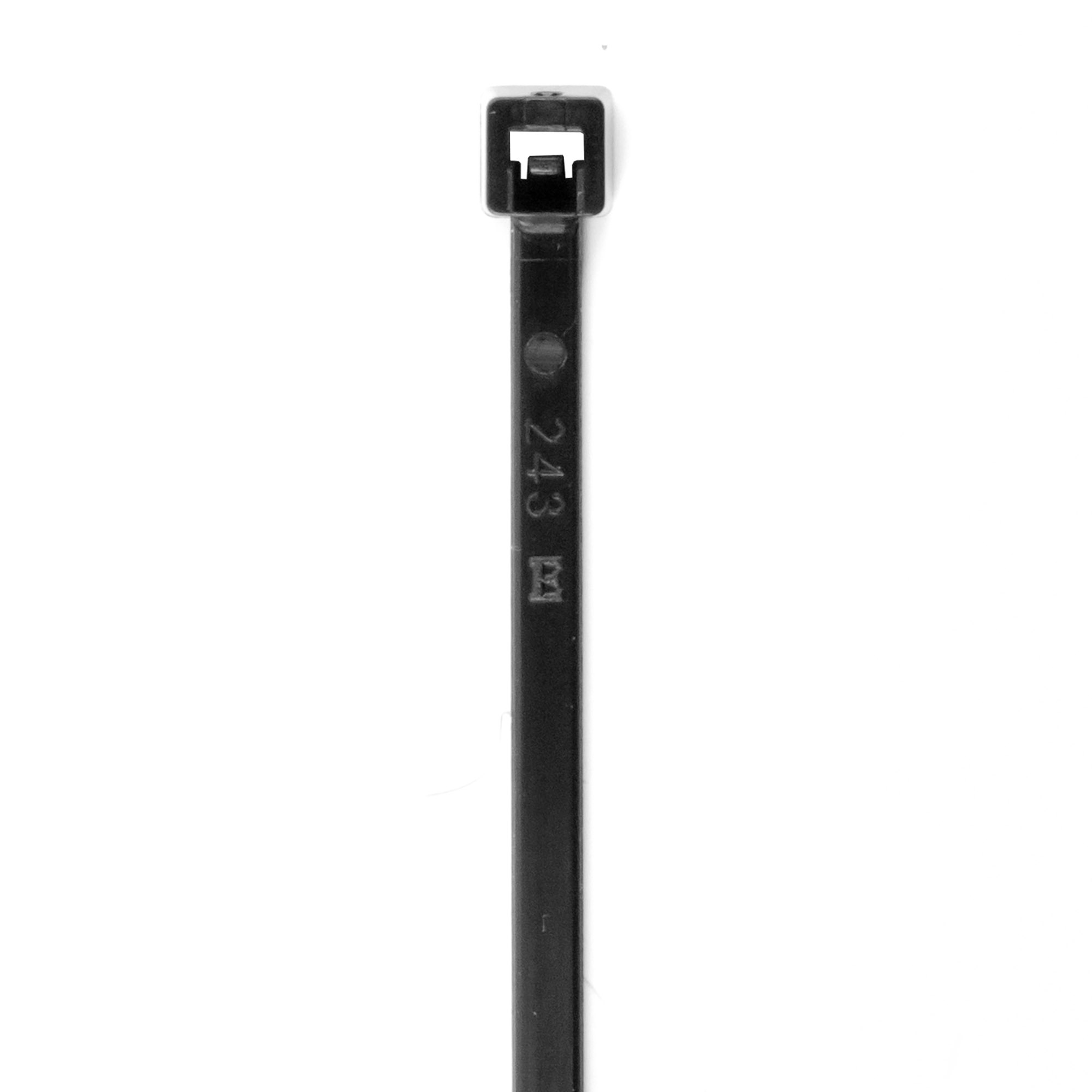

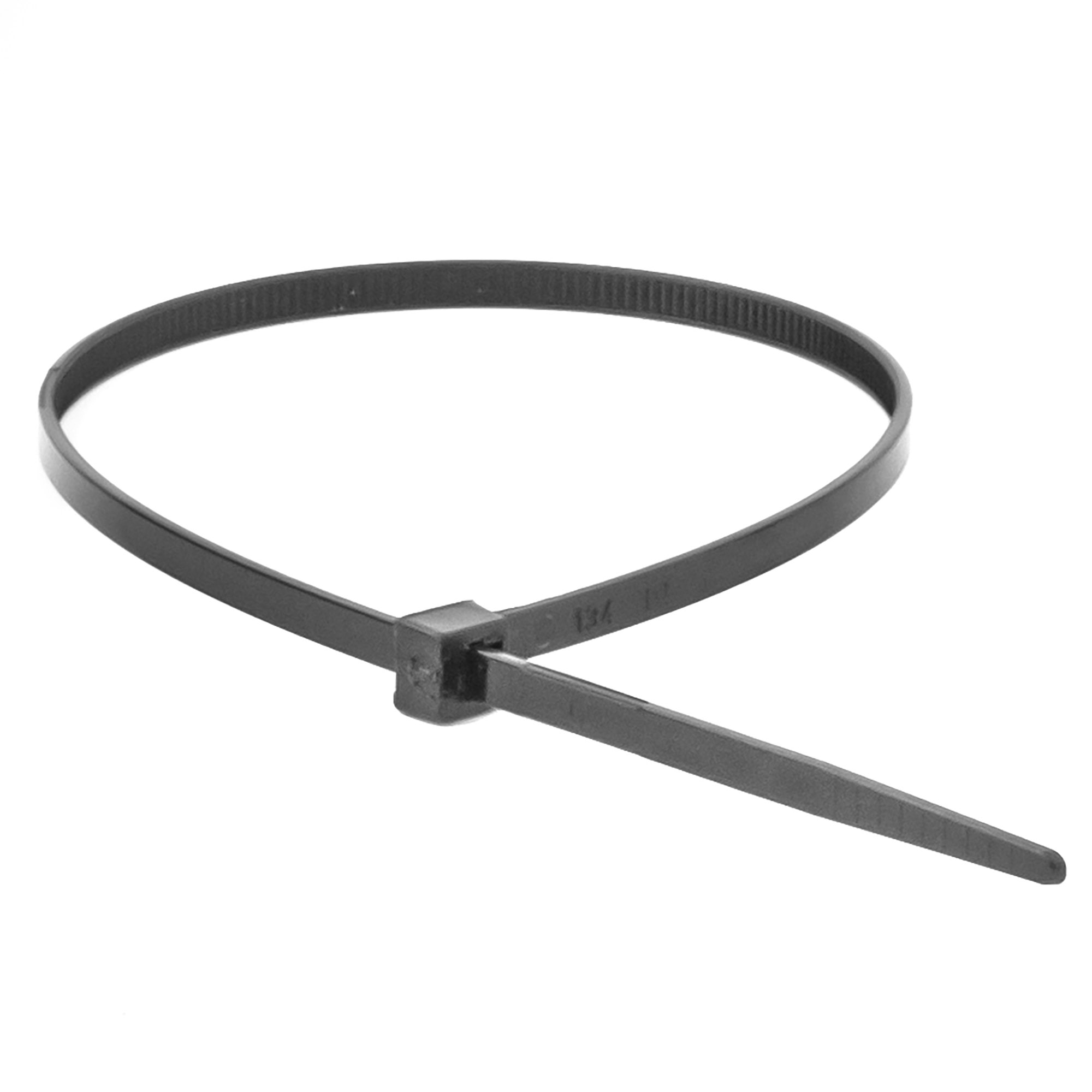

Cable ties P6.6 standard black, 3,6х140

Code: 25309
Cable ties P6.6 standard black, 3,6х140
Cable ties P6.6 standard black, 3,6х140
Colour Black
Model Internal toothing
Halogen free Yes
Length belt/tape/tie, mm 140
Text strip None
Surface protection Plastic-coated
Material quality Polyamide (PA)
Operating temperature, °C -40...85
Material Plastic
Type of fastening Other
Tie thickness, mm 1.09
Solvable fastener No
Band closure Plastic lip/-cam
Max. bundle diameter, mm 35
MIL approval No
Minimum holding force, N 180
UL approval No
UV-stable acc. ASTM D6779 No
VG approval No
Band width, mm 3.6
Mounting temperature, °C -10…60
Color Black
Raw material PVC
Width, mm 3.6
Length, mm 140
Diameter of surrounding (max), mm 35
Diameter of surrounding (min), mm 2
Accessories
Mounting base double adhesive (special acrylic composition), white, 19х19
Mounting base double adhesive (special acrylic composition), white, 19х19
Code: 254673MV
Mounting base double adhesive (special acrylic composition), black 19х19
Mounting base double adhesive (special acrylic composition), black 19х19
Code: 254693MV
