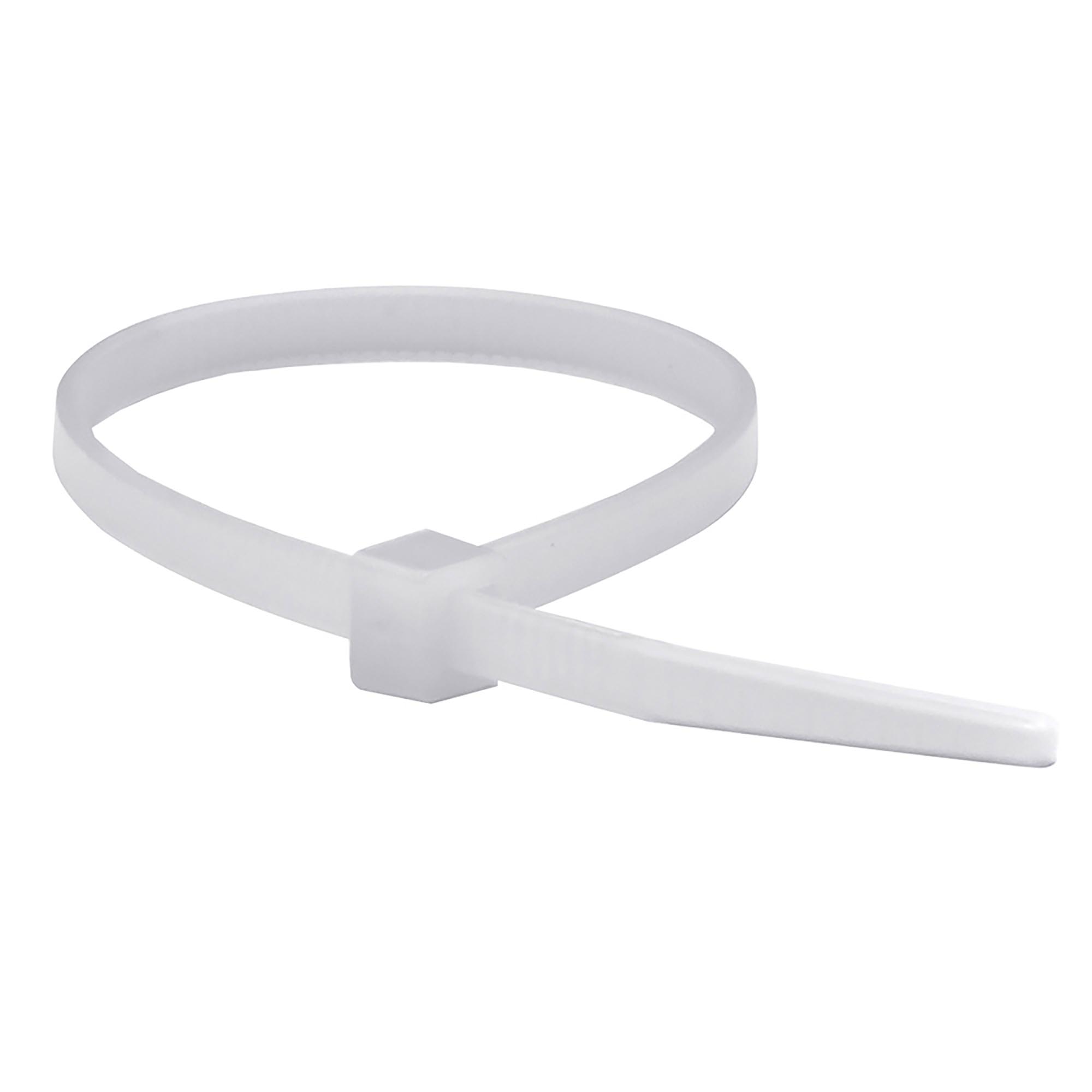

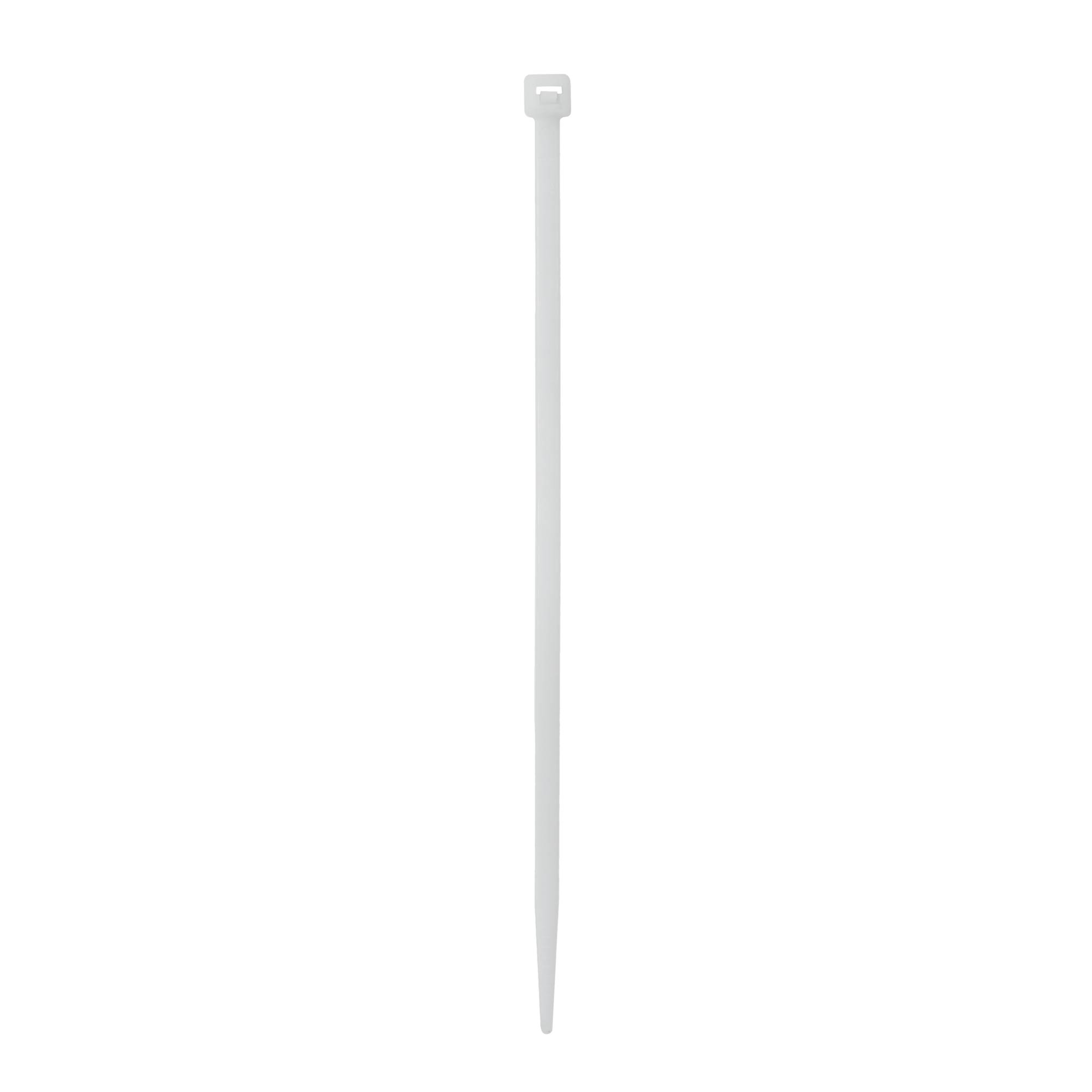

Cable Tie P6.6 standart, natural, 7,6x300
Code: 25226SR
Cable Tie P6.6 standart, natural, 7,6x300
Code: 25226SR
| Colour | White |
| Model | Internal toothing |
| Length belt/tape/tie, mm | 300 |
| Text strip | None |
| Surface protection | Plastic-coated |
| Material quality | Polyamide (PA) |
| Material | Plastic |
| Operating temperature, °C | -40...85 |
| Inflammability class of insulation material according to with UL94 | V2 |
| Tie thickness, mm | 1.5 |
| Band closure | Plastic lip/-cam |
| Max. bundle diameter, mm | 82.8 |
| Min. holding force, N | 540 |
| Band width, mm | 7.6 |
| Mounting temperature, °C | -10...85 |
| Halogen free | Yes |
| Solvable fastener | Yes |
| Transparent | Yes |
| Type of fastening | Other |
