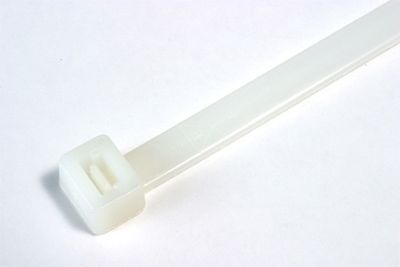

Cable ties P6.6 standard white, 4,8х390 (new analog 25218SR )
Code: 25218
Cable ties P6.6 standard white, 4,8х390 (new analog 25218SR )
Code: 25218
Colour | White |
Model | Internal toothing |
Halogen free | Yes |
Length belt/tape/tie, mm | 390 |
Text strip | None |
Surface protection | Plastic-coated |
Material quality | Polyamide (PA) |
Material | Plastic |
Tie thickness, mm | 1.5 |
Solvable fastener | Yes |
Band closure | Plastic lip/-cam |
Max. bundle diameter, mm | 106 |
Min. holding force, N | 220 |
Band width, mm | 4.8 |
Mounting temperature, °C | -10...60 |
Operating temperature, °C | -40...85 |
Type of fastening | Other |
Inflammability class of insulation material according to with UL94 | V2 |
Product type | Cable ties, polyamide 6.6 |
