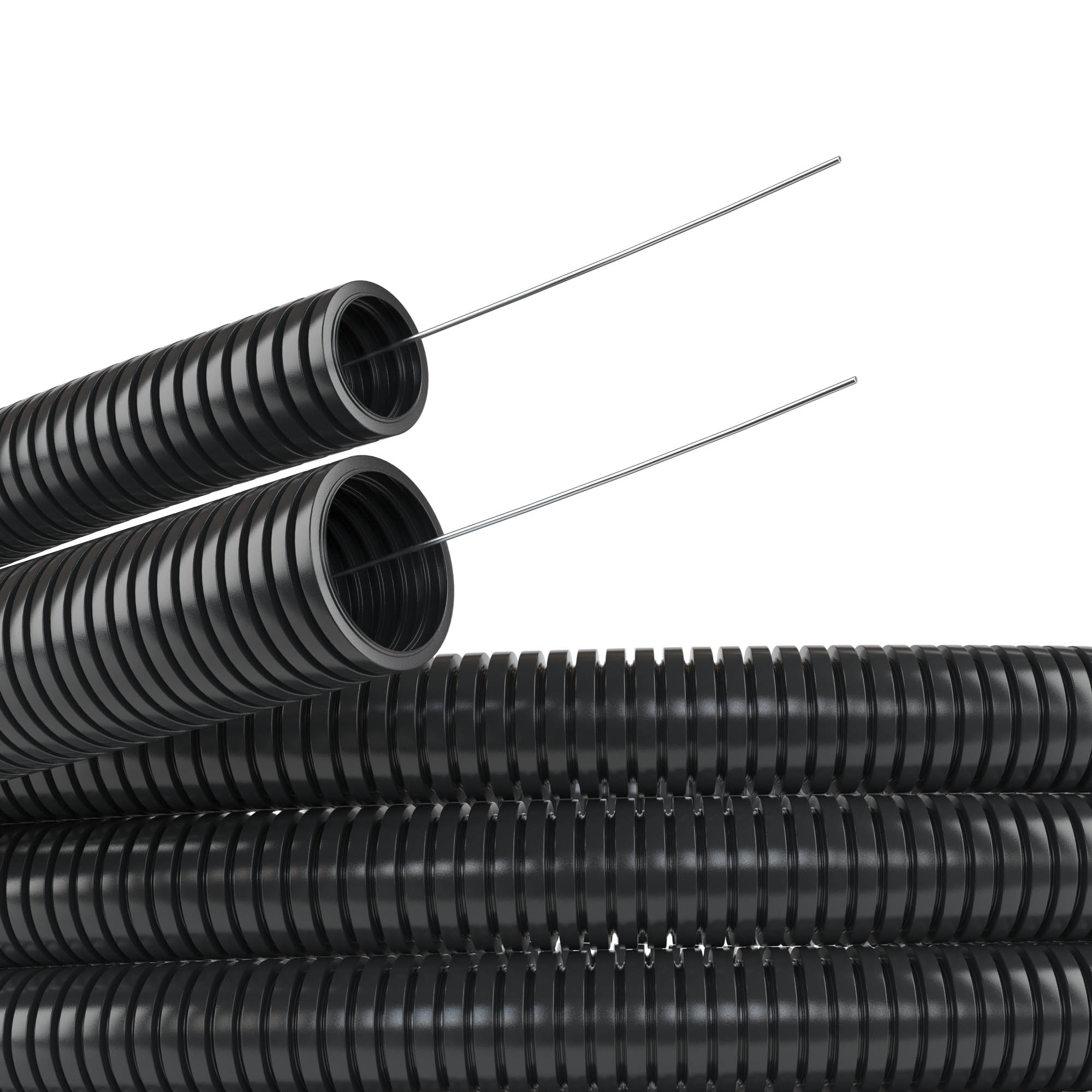

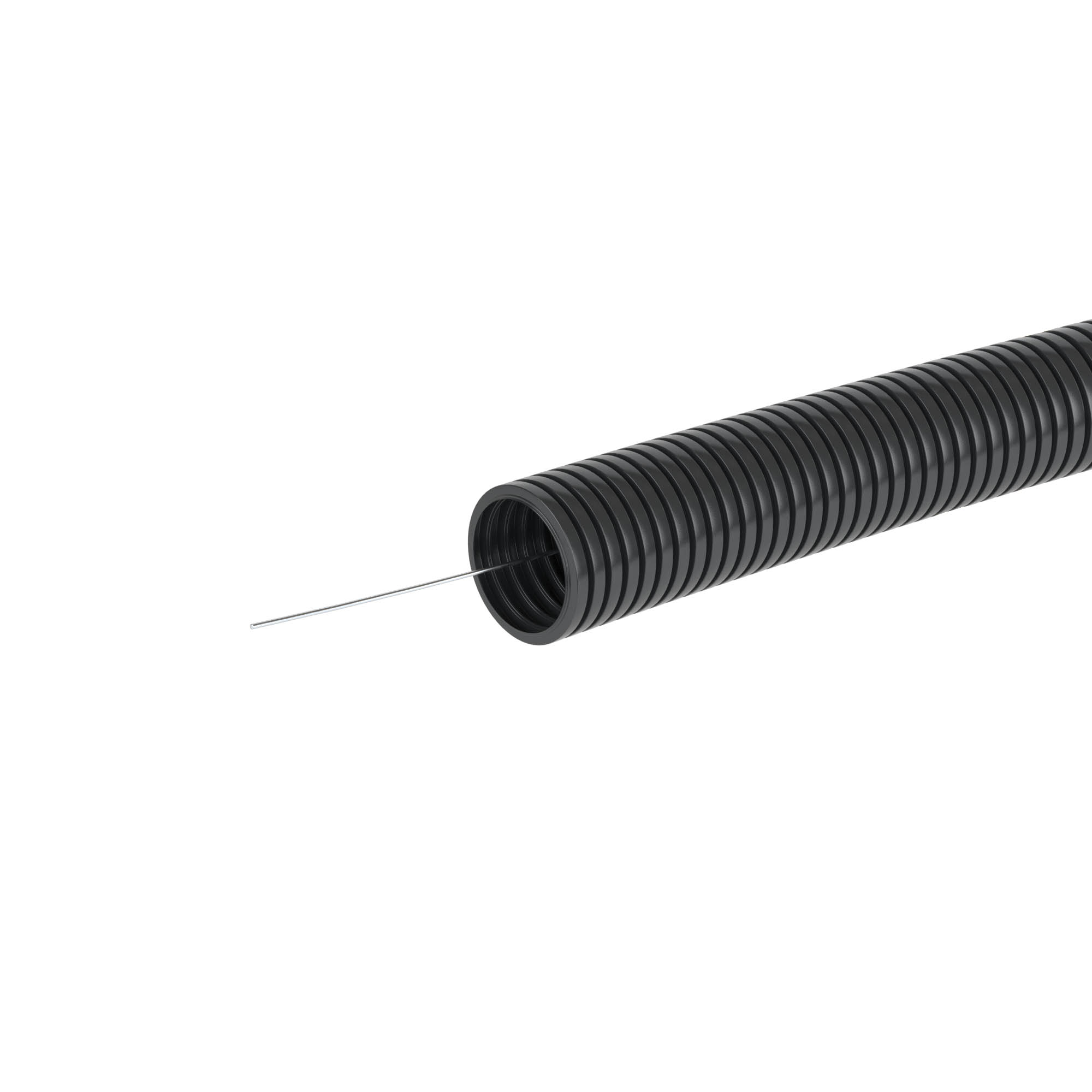

Tube PA6V0 flexible corrugatted with pull, DN12mm, V2, Din12,2 mm, Dex 15,8 mm, black color

Code: PA611216F2
Tube PA6V0 flexible corrugatted with pull, DN12mm, V2, Din12,2 mm, Dex 15,8 mm, black color
Tube PA6V0 flexible corrugatted with pull, DN12mm, V2, Din12,2 mm, Dex 15,8 mm, black color
Color gray
Material PVC
Length, mm 50000
Temperature of mounting, °C -40°С ... +105°С
Ingress Protection rating, IP IP68
Temperature of operation, °C from -40°С to +105°С
Shock resistance, J >2
Cord for wires Yes
Fire protection V-2 ( по UL-94)

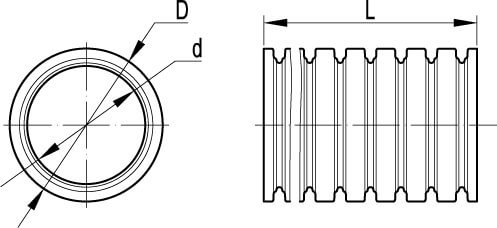

Diameter (nominal), mm 12
Colour Black

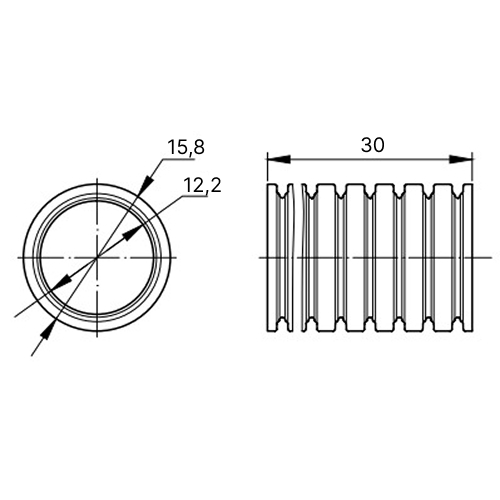

Outer diameter, mm 15.8
Oil resistant Yes
UV resistant Yes
Inner diameter, mm 12.2
Compressive strength, N 250
Operating temperature, °C - 40...105
Fire resistance in accordance with UL94 V2
Bending radius, static, mm 24
Flame accelerating No
Material Polyamide 6
Tensile strength, N 300
Nominal diameter, mm 12
Nominal size in inch 1/2 inch
Degree of protection (IP) IP65/IP67
Bending strength Flexible
Lengthwise slotted No
Closable (two-part) No
-- Yes
Sheathing material Not sheathed
Accessories
Nut М20х1,5, polyamide, black color
Nut М20х1,5, polyamide, black color
Code: PAGM20N
Nut М16х1,5, polyamide, black color
Nut М16х1,5, polyamide, black color
Code: PAGM16N
Straight metric thread connector flex. tube - box DN 12 mm, М16х1,5, polyamide, black color
Straight metric thread connector flex. tube - box DN 12 mm, М16х1,5, polyamide, black color
Code: PAM12M16N
Straight metric thread connector flex. tube - box DN 12 mm, М20х1,5, polyamide, black color
Straight metric thread connector flex. tube - box DN 12 mm, М20х1,5, polyamide, black color
Code: PAM12M20N
Metric sealing washers М20
Metric sealing washers М20
Code: PAPM20
O-ring DN 12 mm
O-ring DN 12 mm
Code: PAR12
Tube support DN 12 mm, polyamide, black color
Tube support DN 12 mm, polyamide, black color
Code: PAS12N
"T" Distributor DN 10/10/10 mm, polyamide, black color
"T" Distributor DN 10/10/10 mm, polyamide, black color
Code: PAT10N
90° metric thread connector flex. tube - box DN 12 mm, М16х1,5, polyamide, black color
90° metric thread connector flex. tube - box DN 12 mm, М16х1,5, polyamide, black color
Code: PAN12M16N
Tube support with clip DN 12 mm, polyamide, black color
Tube support with clip DN 12 mm, polyamide, black color
Code: PASW12N
45° elbow metric connector DN 12 mm, М16х1,5, polyamide, black color
45° elbow metric connector DN 12 mm, М16х1,5, polyamide, black color
Code: PAL12M16N
90° metric thread connector flex. tube - box DN 12 mm, М20х1,5, polyamide, black color
90° metric thread connector flex. tube - box DN 12 mm, М20х1,5, polyamide, black color
Code: PAN12M20N
"Y" Distributor DN 1х17 + 2х12 mm, polyamide, black color
"Y" Distributor DN 1х17 + 2х12 mm, polyamide, black color
Code: PAY171212N
Tube-box coupling mounting kit, DN 12 мм, М20х1,5
Tube-box coupling mounting kit, DN 12 мм, М20х1,5
Code: PACM12M20N
45° tube-box coupling mounting kit, DN 12 мм, М16х1,5
45° tube-box coupling mounting kit, DN 12 мм, М16х1,5
Code: PACL12M16N
Tube-box coupling mounting kit, DN 12 мм, М16х1,5
Tube-box coupling mounting kit, DN 12 мм, М16х1,5
Code: PACM12M16N
90° tube-box coupling mounting kit, DN 12 мм, М16х1,5
90° tube-box coupling mounting kit, DN 12 мм, М16х1,5
Code: PACN12M16N
90° tube-box coupling mounting kit, DN 12 мм, М20х1,5
90° tube-box coupling mounting kit, DN 12 мм, М20х1,5
Code: PACN12M20N
Sleeve junction М20, black color
Sleeve junction М20, black color
Code: PADM20
