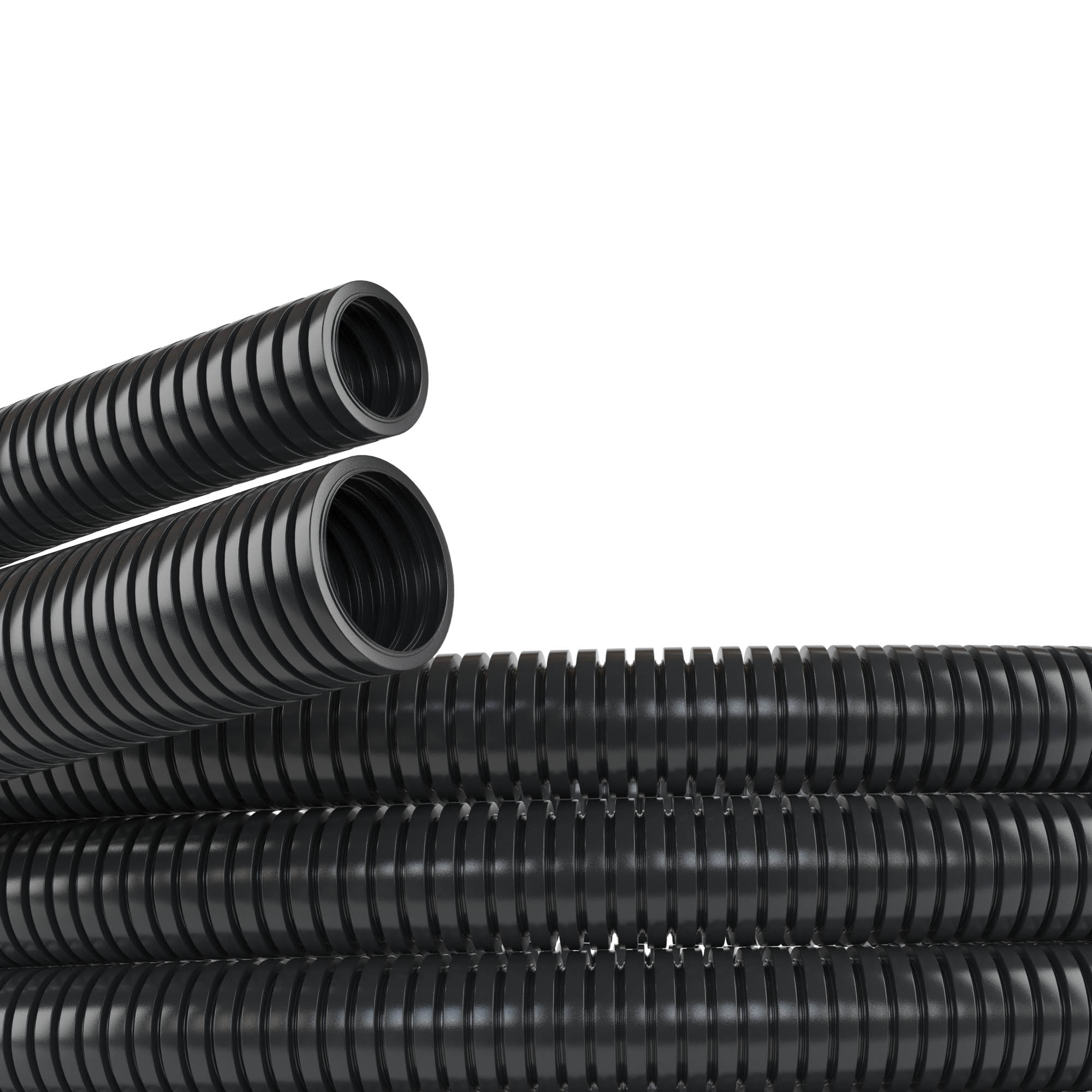

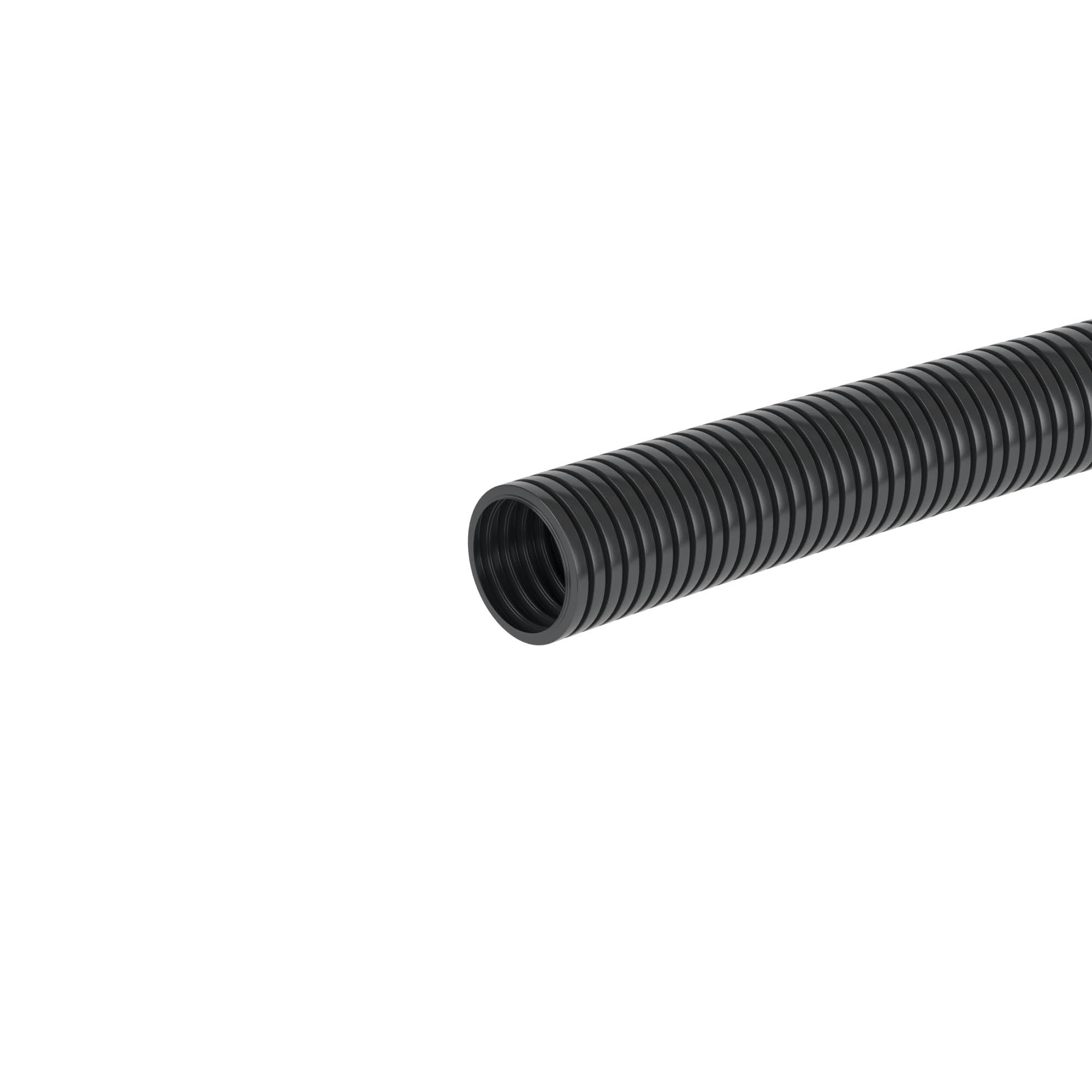

Tube PA6V0 flexible corrugatted, DN48mm, V2, Din 47,4mm, Dex 54,5 mm, black color

Code: PA604855F2
Tube PA6V0 flexible corrugatted, DN48mm, V2, Din 47,4mm, Dex 54,5 mm, black color
Tube PA6V0 flexible corrugatted, DN48mm, V2, Din 47,4mm, Dex 54,5 mm, black color
Code: PA604855F2
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Certificates
  • Promo
  • Viewed items
  • News
Colour Black

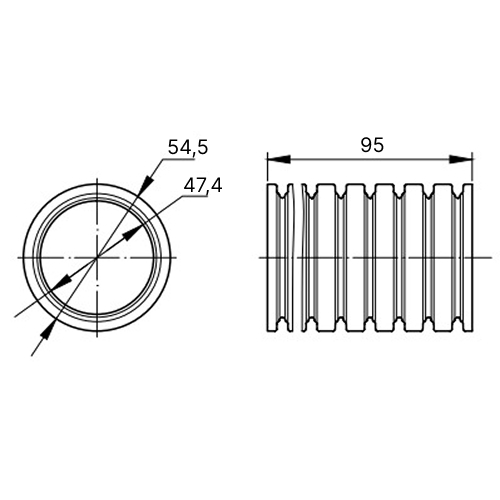

Outer diameter, mm 54.5
Oil resistant Yes
UV resistant Yes
Inner diameter, mm 47.4
Compressive strength, N 250
Operational temperature, °C -40...105
Fire resistance according to UL94 V2
Bending radius, static, mm 95
Material Polyamide 6
Tensile strength, N 600
Nominal diameter, mm 48
Nominal size in inch 1 3/4 inch
Bending strength Flexible
Sheathing material Not sheathed
With draw wire No
Length 15 m
Diameter (nominal) 48 mm
Color Black
Material PVC
-5°С ... +60°С -40°С ... +105°С
Ingress Protection rating, IP IP68
от -25°С до +60°С from -40°С to +105°С
Shock resistance, J >6
Cord for wires No
Fire protection V-2 ( по UL-94)
ТУ 2248-012-47022248-2009 Technical specifications 2247-024-47022248-2009
3 года 3 years
15 лет 15 years
