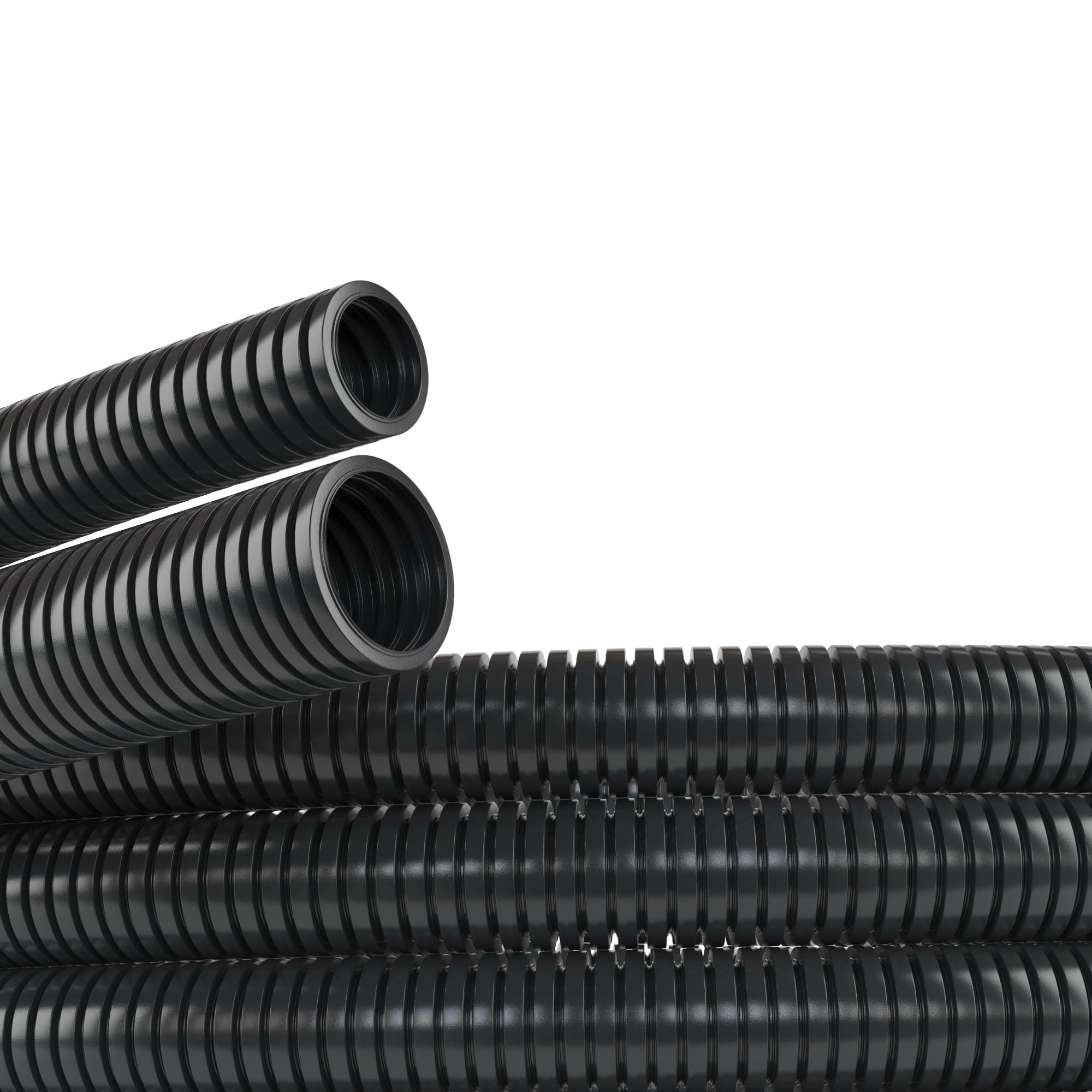

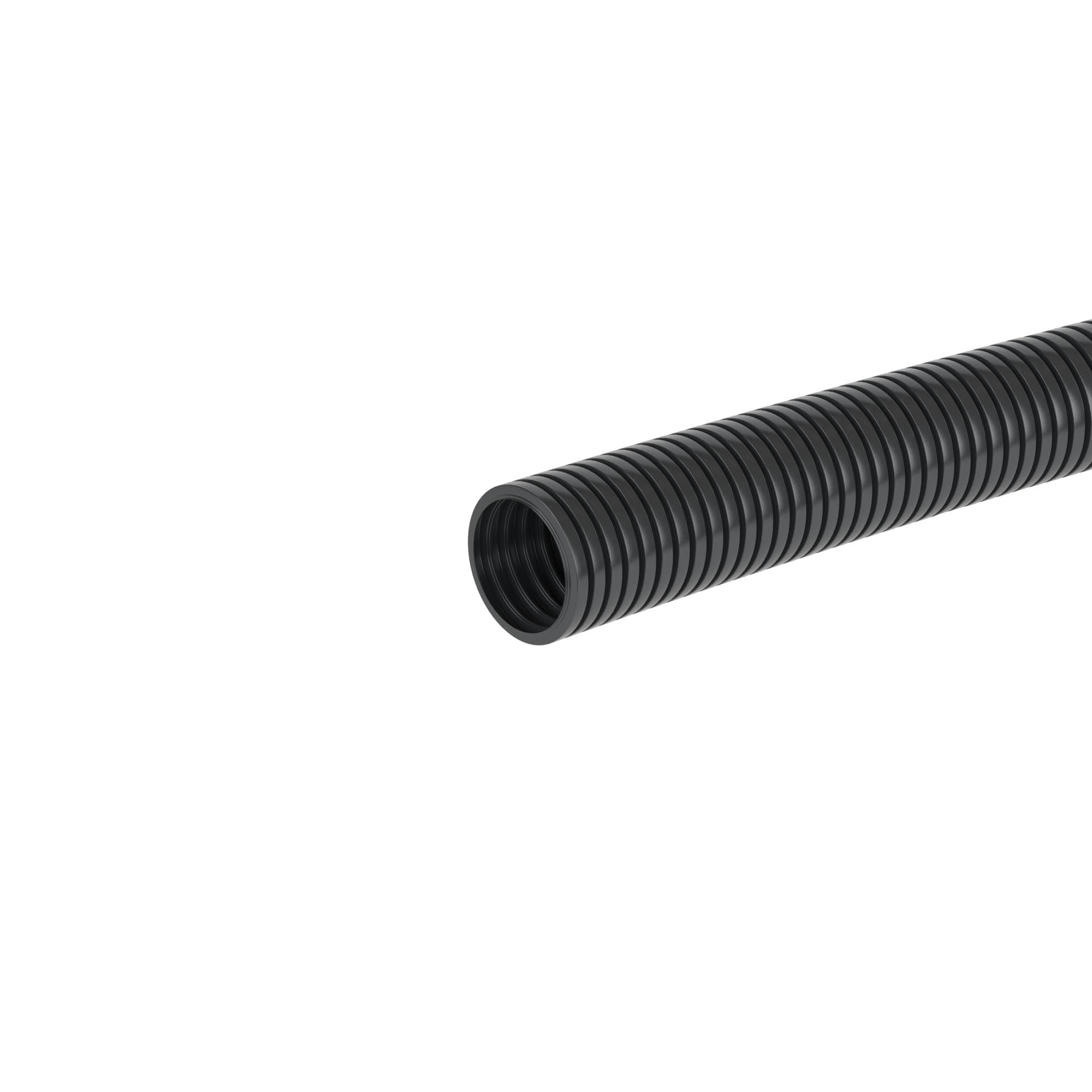

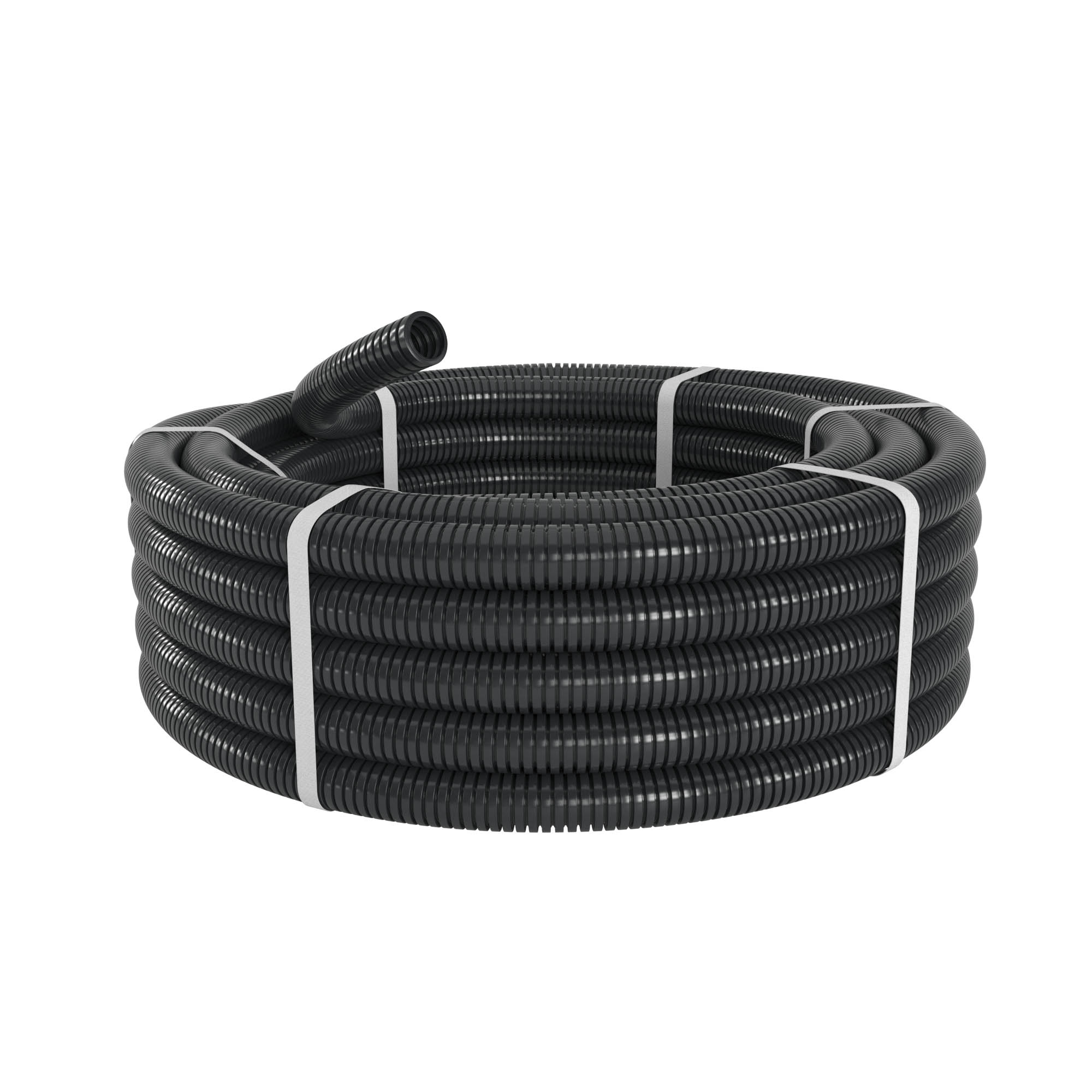

Tube PA6V0 flexible corrugatted, DN29mm, V2, Din 28,3 mm, Dex 34,5 mm, black color

Tube PA6V0 flexible corrugatted, DN29mm, V2, Din 28,3 mm, Dex 34,5 mm, black color

Code: PA602935F2

To ask a question

Color	gray
Material	PVC
Length, mm	25000
Temperature of mounting, °C	-40°С ... +105°С
Ingress Protection rating, IP	IP68

Temperature of operation, °C	from -40°С to +105°С
Shock resistance, J	>6
Cord for wires	No
Fire protection	V-2 ( по UL-94)
Diameter (nominal), mm	29

Colour	Black

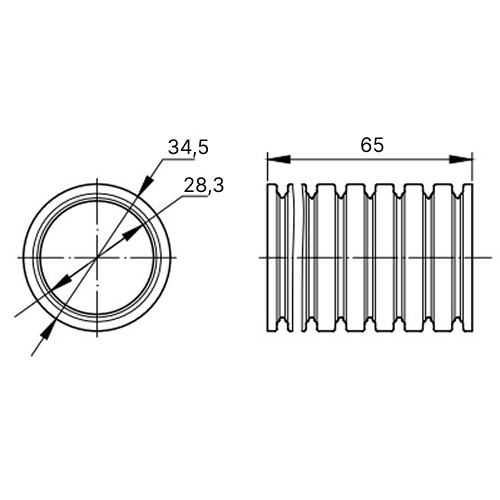

Outer diameter, mm	34.5
Oil resistant	Yes
UV resistant	Yes
Inner diameter, mm	28.3
Compressive strength, N	250
Operating temperature, °C	- 40...105
Fire resistance in accordance with UL94	V2
Bending radius, static, mm	60
Flame accelerating	No

Material	Polyamide 6
Tensile strength, N	600
Nominal diameter, mm	29
Nominal size in inch	Other
Degree of protection (IP)	IP65/IP67
Bending strength	Flexible
Lengthwise slotted	No
Closable (two-part)	No
--	No
Sheathing material	Not sheathed

Accessories

Nut М32х1,5, polyamide, black color

Code: PAGM32N

Straight metric thread connector flex. tube - box DN 29 mm, М32х1,5, polyamide, black color

Code: PAM29M32N

Tube support with clip DN 29 mm, polyamide, black color

Code: PASW29N

Nut М40х1,5, polyamide, black color

Code: PAGM40N

O-ring DN 29 mm

Code: PAR29

Metric sealing washers М40

Code: PAPM40

Straight metric thread connector flex. tube - box DN 29 mm, М40х1,5, polyamide, black color

Code: PAM29M40N

Tube support DN 29 mm, polyamide, black color

Code: PAS29N

45° elbow metric connector DN 29 mm, М32х1,5, polyamide, black color

Code: PAL29M32N

90° metric thread connector flex. tube - box DN 29 mm, М32х1,5, polyamide, black color

Code: PAN29M32N

"Y" Distributor DN 1х29 + 2х23 mm, polyamide, black color

Code: PAY292323N

"Y" Distributor DN 1х36 + 2х29 mm, polyamide, black color

Code: PAY362929N

"T" Distributor DN 29/29/29 mm, polyamide, black color

Code: PAT29N

45° tube-box coupling mounting kit, DN 29 мм, М32х1,5

Code: PACL29M32N

Tube-box coupling mounting kit, DN 29 мм, М32х1,5

Code: PACM29M32N

Tube-box coupling mounting kit, DN 29 мм, М40х1,5

Code: PACM29M40N

90° tube-box coupling mounting kit, DN 29 мм, М32х1,5

Code: PACN29M32N

Sleeve junction М40, black color

Code: PADM40

Certificates

Name	Document
Octopus_polyamide - Exemption letter for сertificate of conformity to GOST R flexible corrugated polyamide tubes	PDF 619.26 kB
Octopus_polyamide - Exemption letter of fire safety certificates for flexible corrugated polyamide tubes	PDF 341.54 kB
The Certificate of expert opinion for flexible corrugated pipes made of polyamide "Octopus"	PDF 509.17 kB
Exemption Letter for the pipes for electrical work	PDF 594.79 kB
