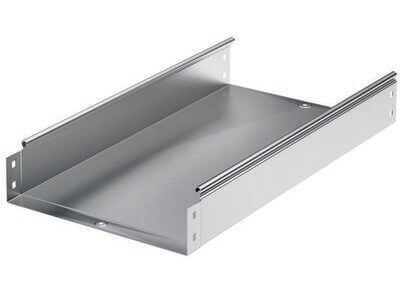

Non Perforated Straight Element 150х100 L3000, HDZ

Code: 35102HDZ
Non Perforated Straight Element 150х100 L3000, HDZ
Non Perforated Straight Element 150х100 L3000, HDZ

Non Perforated Straight Element 150х100 L3000, HDZ

Code: 35102HDZ
Colour Light grey
Width, mm 150
Model Without connector
Height, mm 100
Surface protection Hot-dip galvanized
Material thickness, mm 0.7
Side wall perforation Yes
Material quality Steel
Length, mm 3000
Material Steel
Mounting perforation in bottom Yes
Useful cross section, mm² 14800
Suitable for circuit integrity Yes
Product type Non perforated straight elements
Type Metal sheet trays - " S5 Combitech"
Height 100 mm
Length 3000 mm
Thickness 0.7 mm
Material Hot-dip galvanized
Width 150 mm
Accessories
Analogs

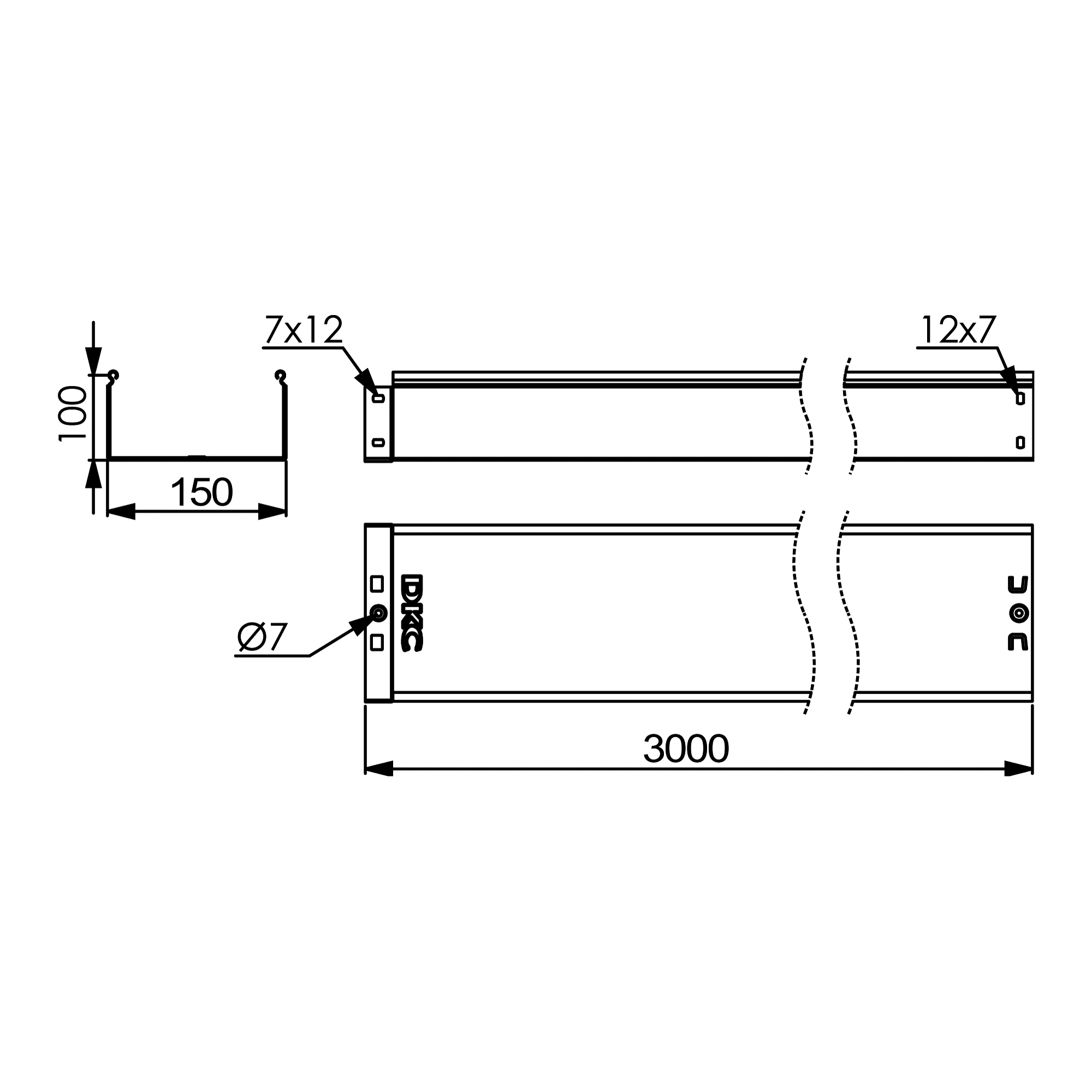

Drawings
