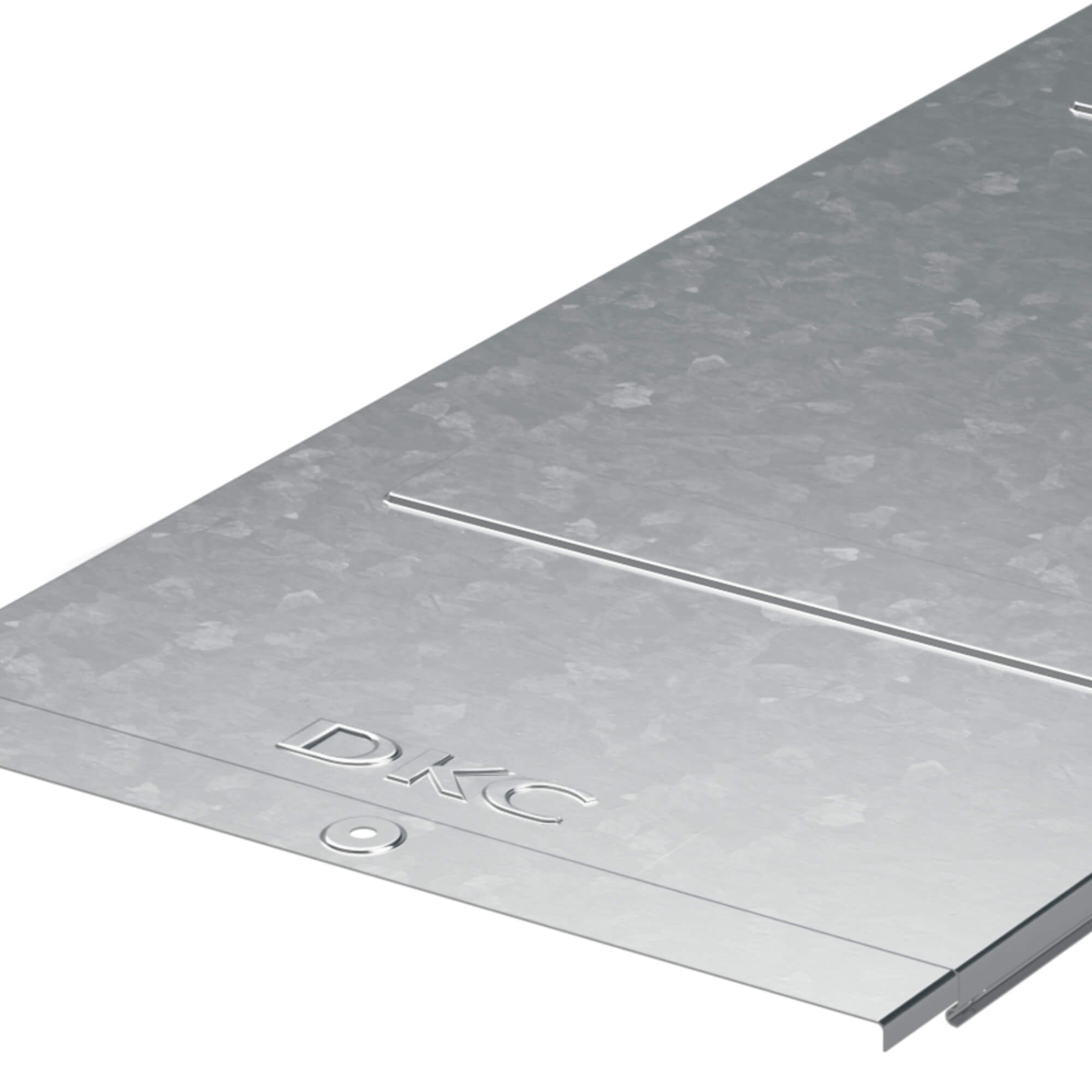

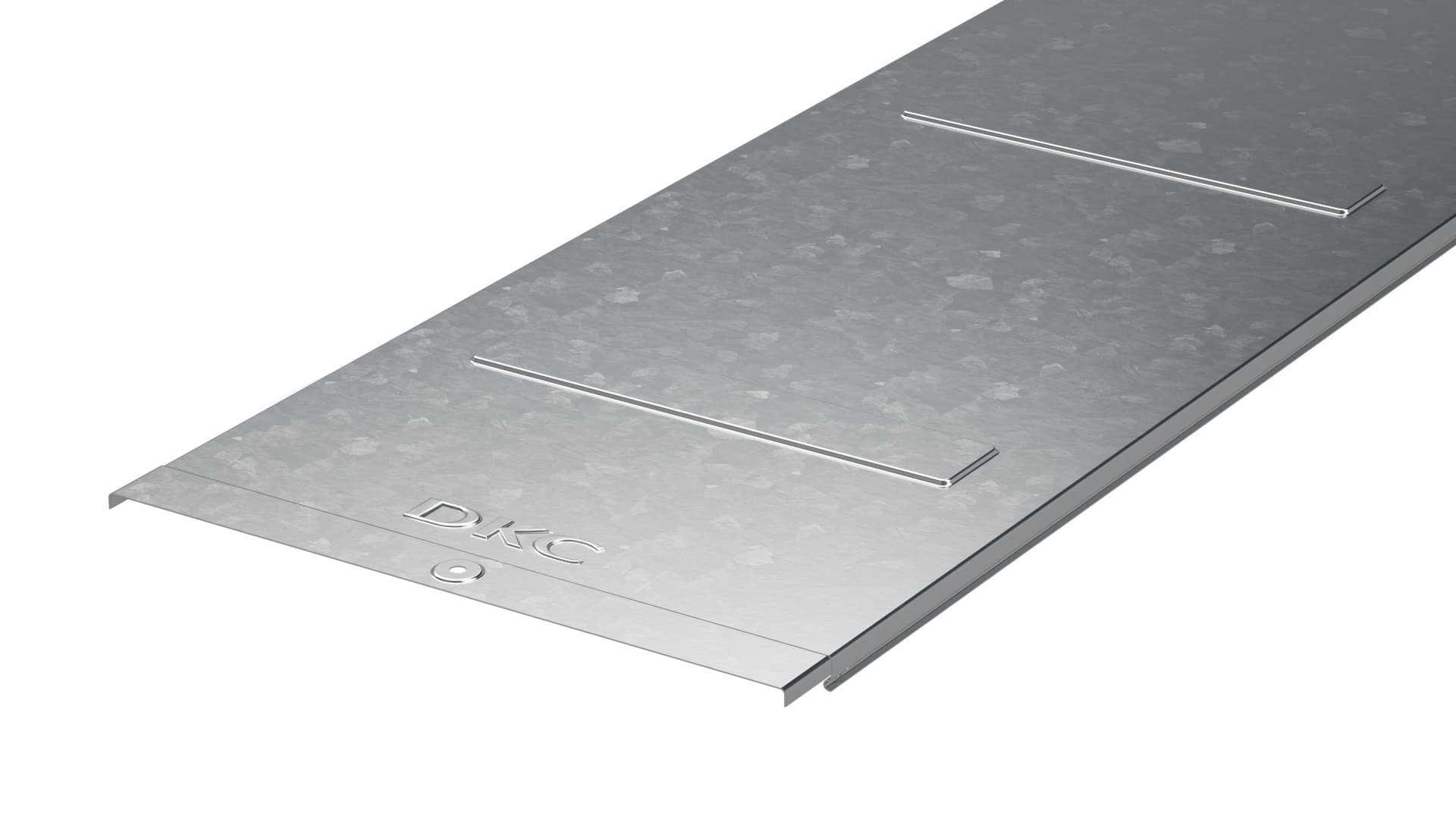

Straight Element Cover without ground connector b.600 L3000 HDZ

Code: 35528HDZ
Straight Element Cover without ground connector b.600 L3000 HDZ
Straight Element Cover without ground connector b.600 L3000 HDZ
Colour Light grey
Surface protection Hot-dip galvanized
Material thickness, mm 0.8
Material quality Other
Length, mm 3000
Material Steel
Type of fastening Snapped on
Cover width, mm 600
Suitable for wire mesh tray Yes
Suitable for cable ladder Yes
Suitable for cable duct Yes
Stainless steel, pickled No
Material Hot dip galvanized
Height, mm 15
Width, mm 600
Length, mm 3000
Thickness of metal sheet, mm 1
Analogs
Straight Element Cover without ground connector b.600 L3000 thick.1,0 mm, L3000, HDZ
Straight Element Cover without ground connector b.600 L3000 thick.1,0 mm, L3000, HDZ
Code: 3552810HDZ
Straight Element Cover b.600 L3000 thick.1,0 mm ZL
Straight Element Cover b.600 L3000 thick.1,0 mm ZL
Code: 3552810ZL
Straight Element Cover without ground connector b.600 L3000 thick.1,2 mm, L3000, HDZ
Straight Element Cover without ground connector b.600 L3000 thick.1,2 mm, L3000, HDZ
Code: 3552812HDZ
Straight Element Cover b.600 L3000 thick.1,2 mm ZL
Straight Element Cover b.600 L3000 thick.1,2 mm ZL
Code: 3552812ZL
Straight Element Cover without ground connector b.600 L3000 thick.1,5 mm, L3000, HDZ
Straight Element Cover without ground connector b.600 L3000 thick.1,5 mm, L3000, HDZ
Code: 3552815HDZ
Straight Element Cover b. 600 L3000 thick1,5 mm ZL
Straight Element Cover b. 600 L3000 thick1,5 mm ZL
Code: 3552815ZL
Straight Element Cover b.600 L3000 ZL
Straight Element Cover b.600 L3000 ZL
Code: 35528ZL

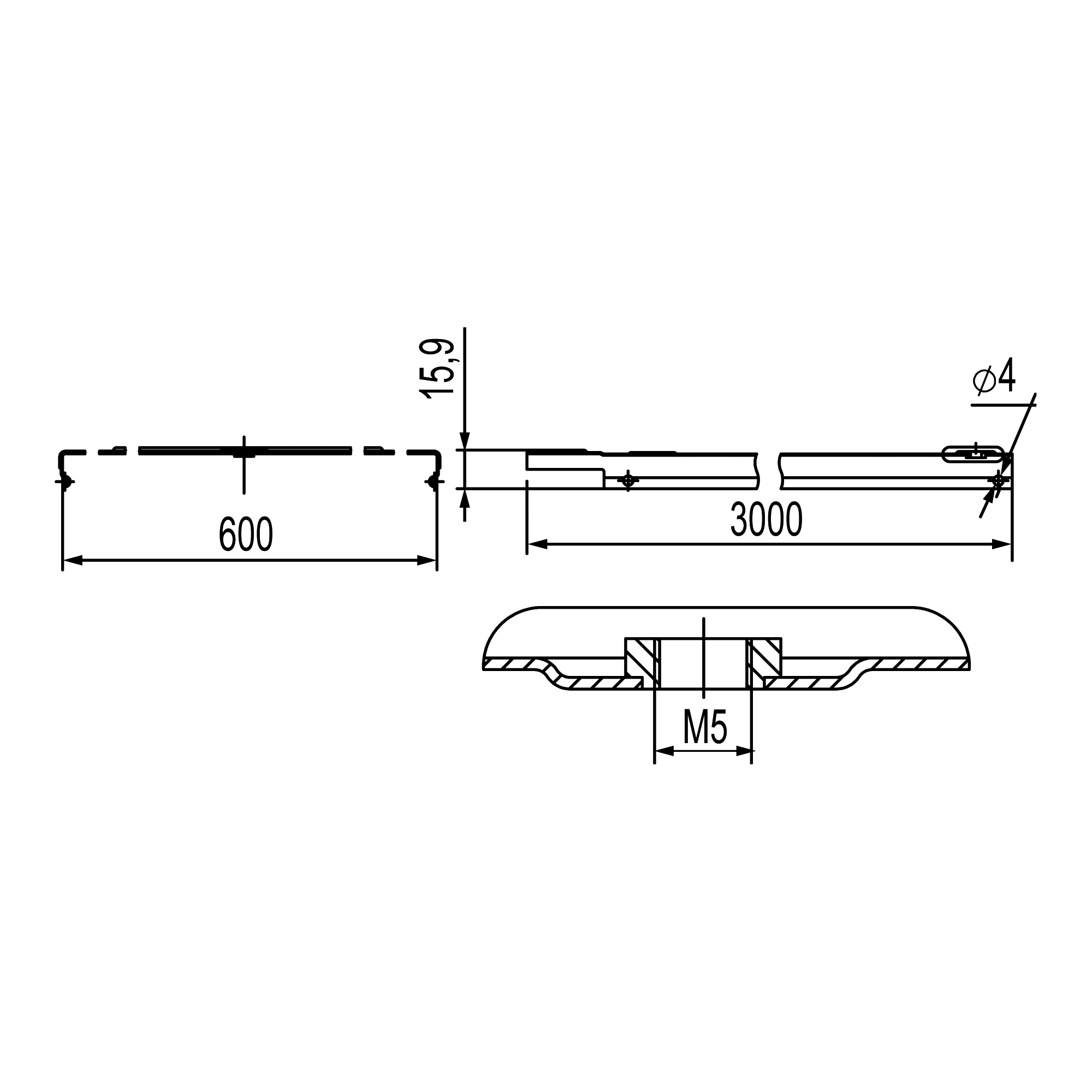

Drawings
