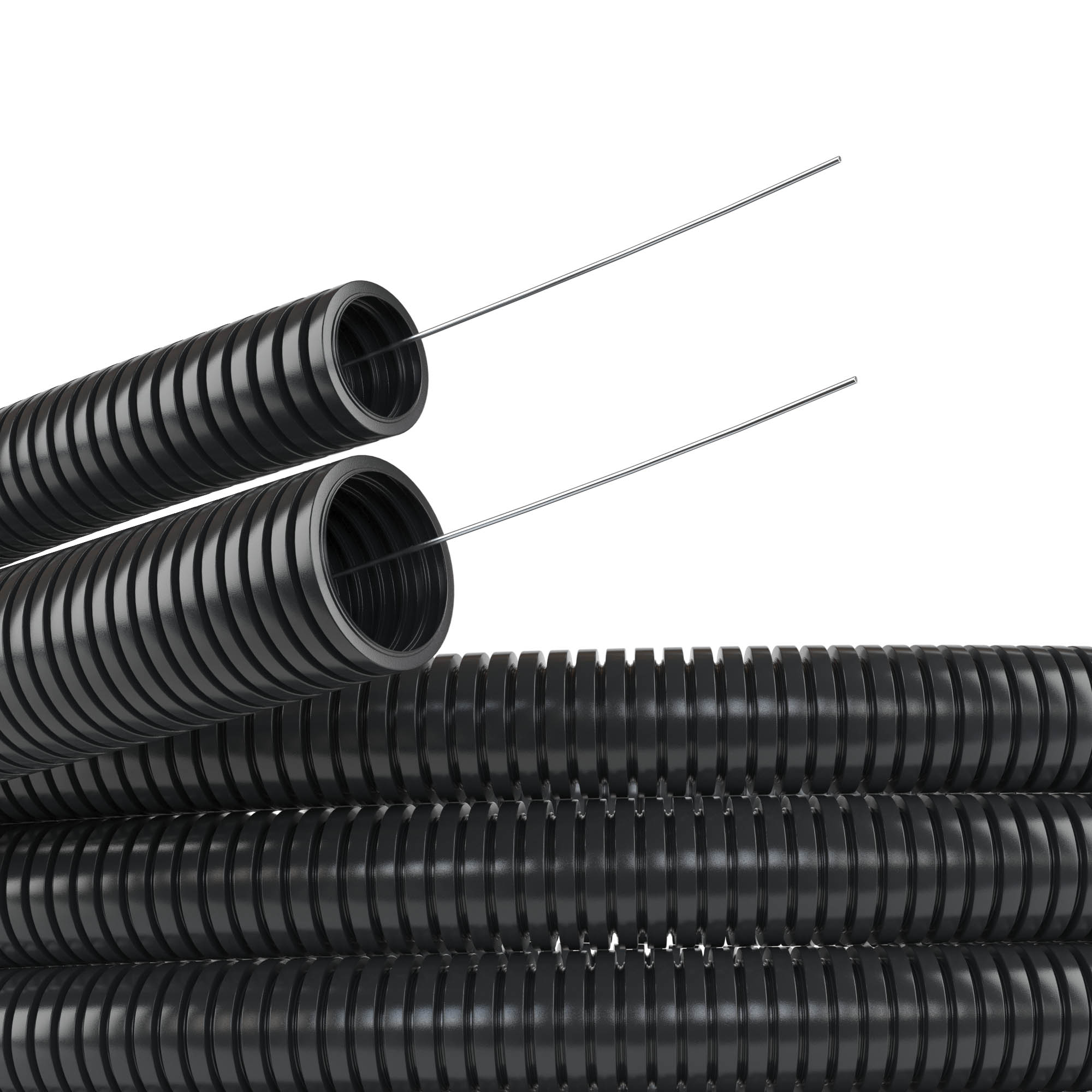

Tube PA6V0 flexible corrugatted with pull, DN48mm, V2, Din47,4mm, Dex 54,5 mm, black color

Code: PA614855F2
  • To ask a question
Colour Black
Outer diameter, mm 54.5
Oil resistant Yes
UV resistant Yes
Inner diameter, mm 47.4
Compressive strength, N 250
Operational temperature, °C -40...105
Fire resistance according to UL94 V2
Bending radius, static, mm 95
Flame accelerating No
Material Polyamide 6
Tensile strength, N 600
Nominal diameter, mm 48
Nominal size in inch 1 3/4 inch
Bending strength Flexible
Lengthwise slotted Yes
Closable (two-part) Yes
Sheathing material Not sheathed
Length 15000 mm
Diameter (nominal) 48 mm
Color Black
Material PVC
-5°С ... +60°С -40°С ... +105°С
Ingress Protection rating, IP IP68
от -25°С до +60°С from -40°С to +105°С
Shock resistance, J >6
Cord for wires Yes
Fire protection V-2 ( по UL-94)
ТУ 2248-012-47022248-2009 Technical specifications 2247-024-47022248-2009
3 года 3 years
15 лет 15 years
