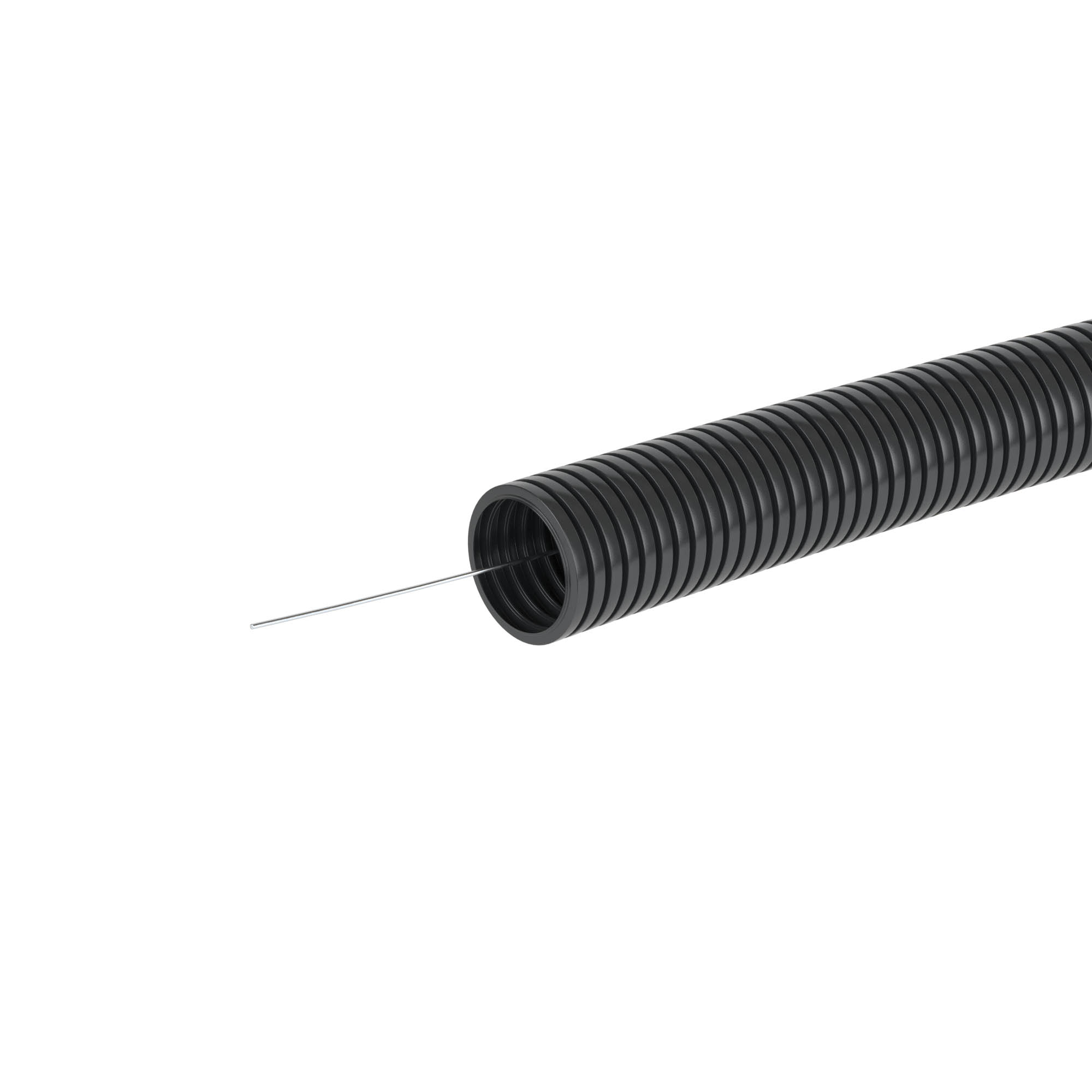

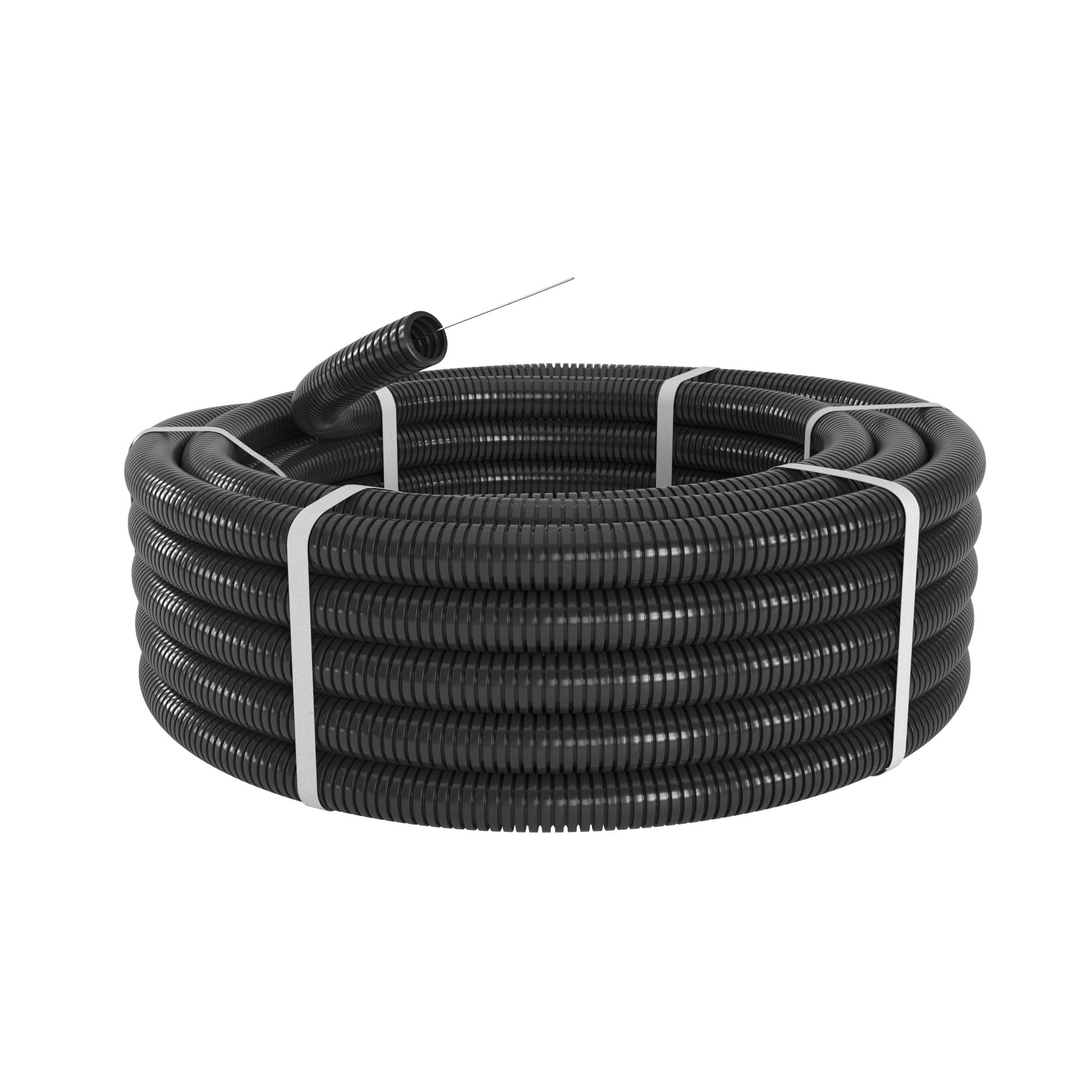

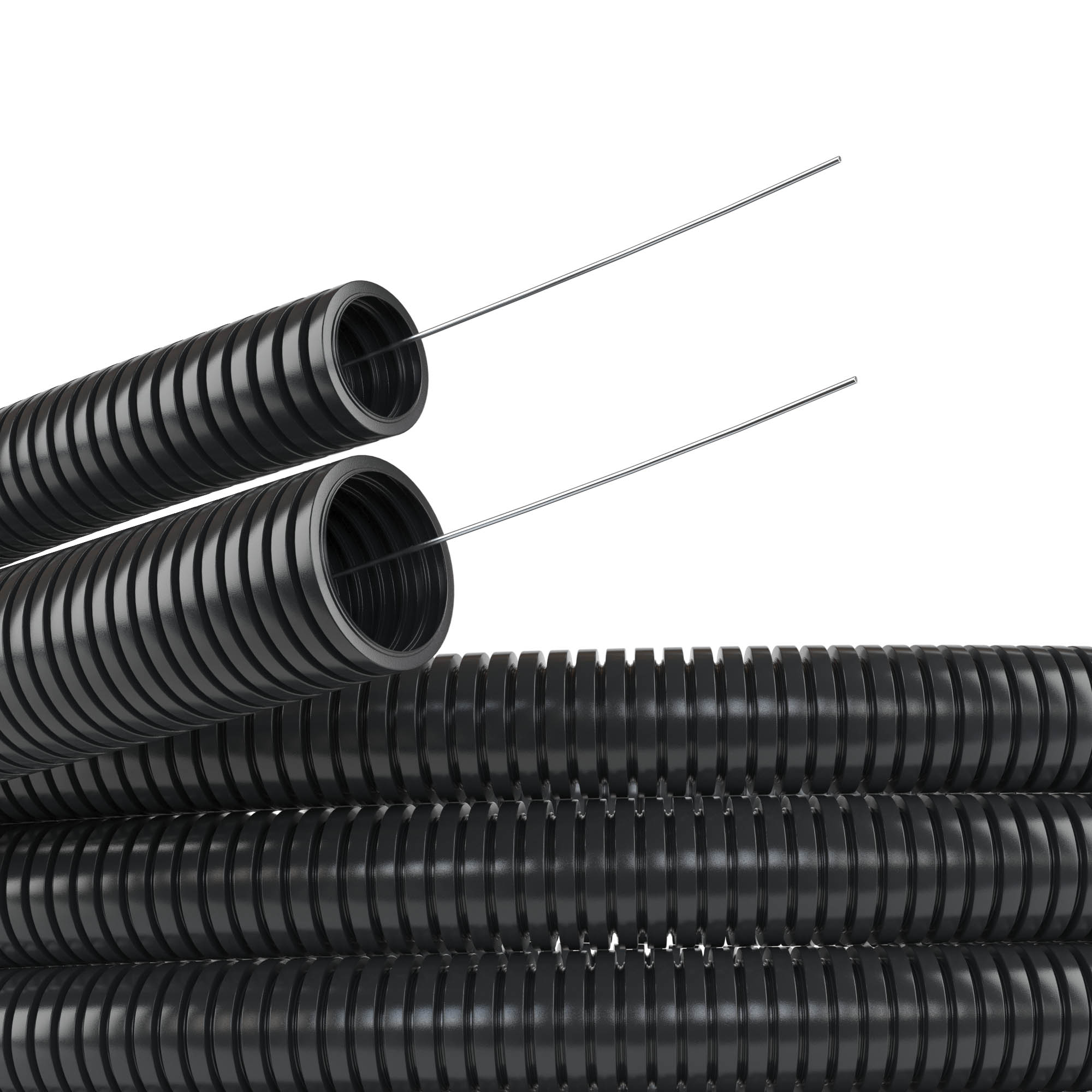

Tube PA6V0 flexible corrugatted with pull, DN17mm, V2, Din16,8 mm, Dex 21,2 mm, black color
| Colour | Black |

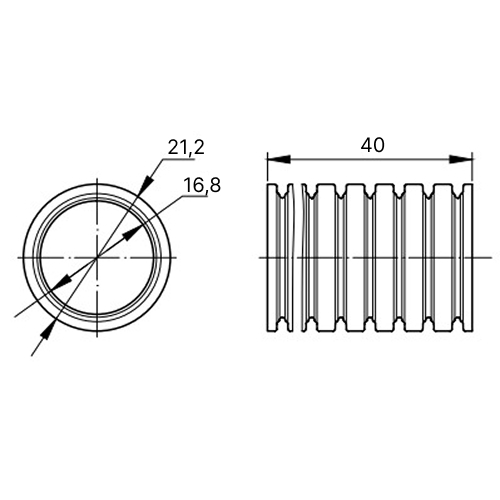

| Outer diameter, mm | 21.2 |
| Oil resistant | Yes |
| UV resistant | Yes |
| Inner diameter, mm | 16.8 |
| Compressive strength, N | 250 |
| Operating temperature, °C | - 40...105 |
| Fire resistance in accordance with UL94 | V2 |
| Bending radius, static, mm | 35 |
| Flame accelerating | No |
| Material | Polyamide 6 |
| Tensile strength, N | 600 |
| Nominal diameter, mm | 17 |
| Nominal size in inch | 5/8 inch |
| Degree of protection (IP) | IP65/IP67 |
| Bending strength | Flexible |
| Lengthwise slotted | No |
| Closable (two-part) | No |
| -- | Yes |
| Sheathing material | Not sheathed |
| Length | 50000 mm |
| Diameter (nominal) | 17 mm |
| Color | Black |
| Material | PVC |
| -5°С ... +60°С | -40°С ... +105°С |
| Ingress Protection rating, IP | IP68 |
| от -25°С до +60°С | from -40°С to +105°С |
| Shock resistance, J | >4 |
| Cord for wires | Yes |
| Fire protection | V-2 ( по UL-94) |
| ТУ 2248-012-47022248-2009 | Technical specifications 2247-024-47022248-2009 |
| 3 года | 3 years |
| 15 лет | 15 years |
