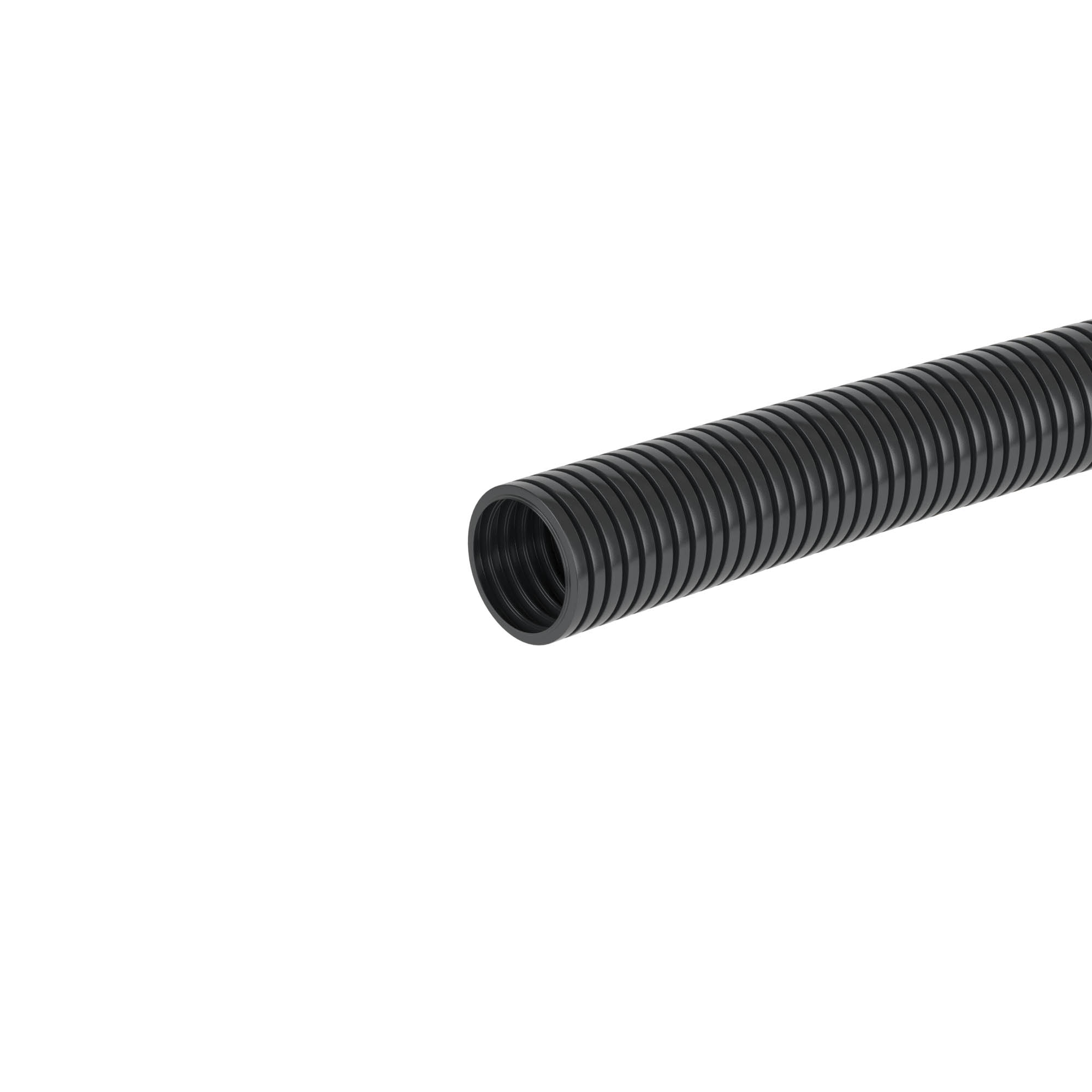

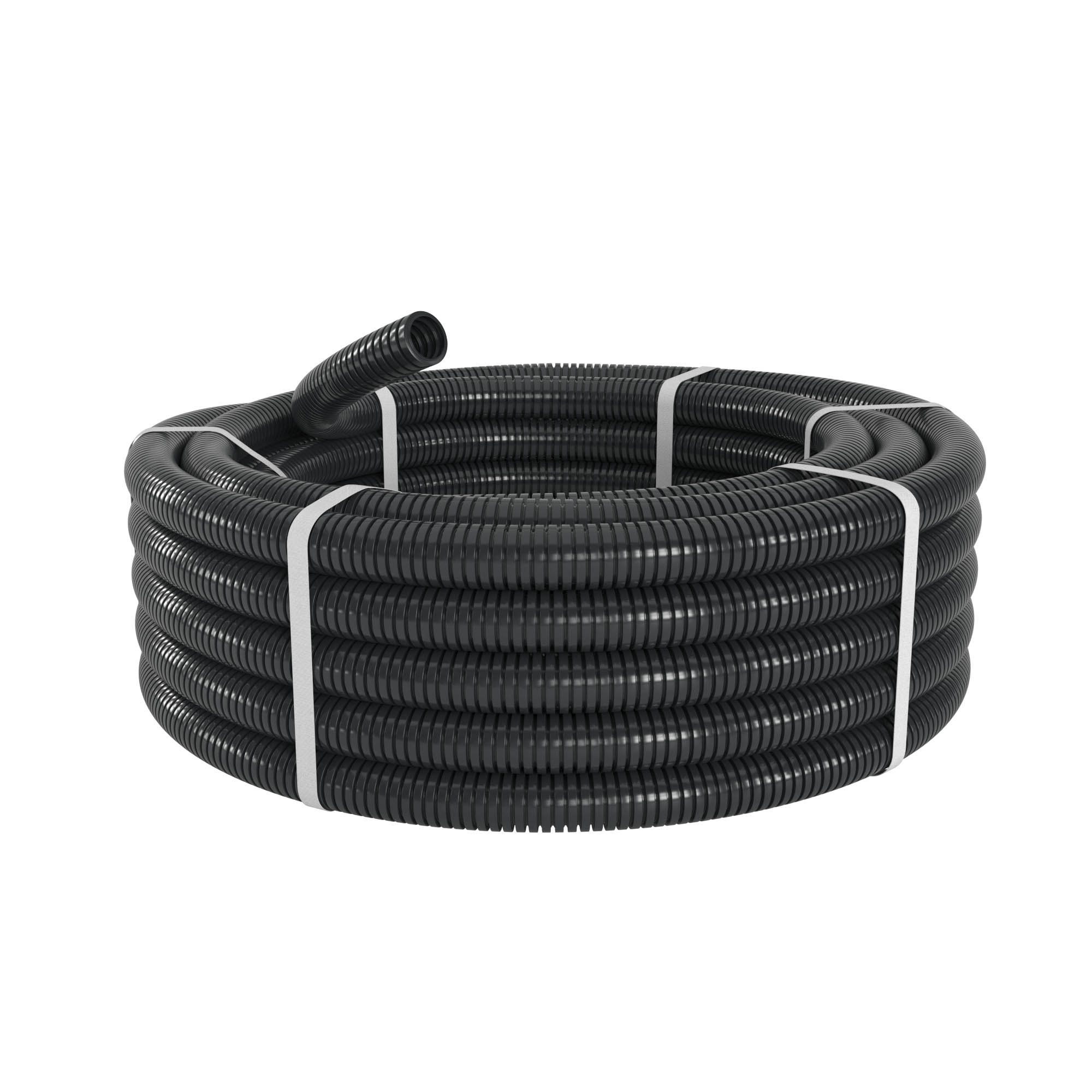

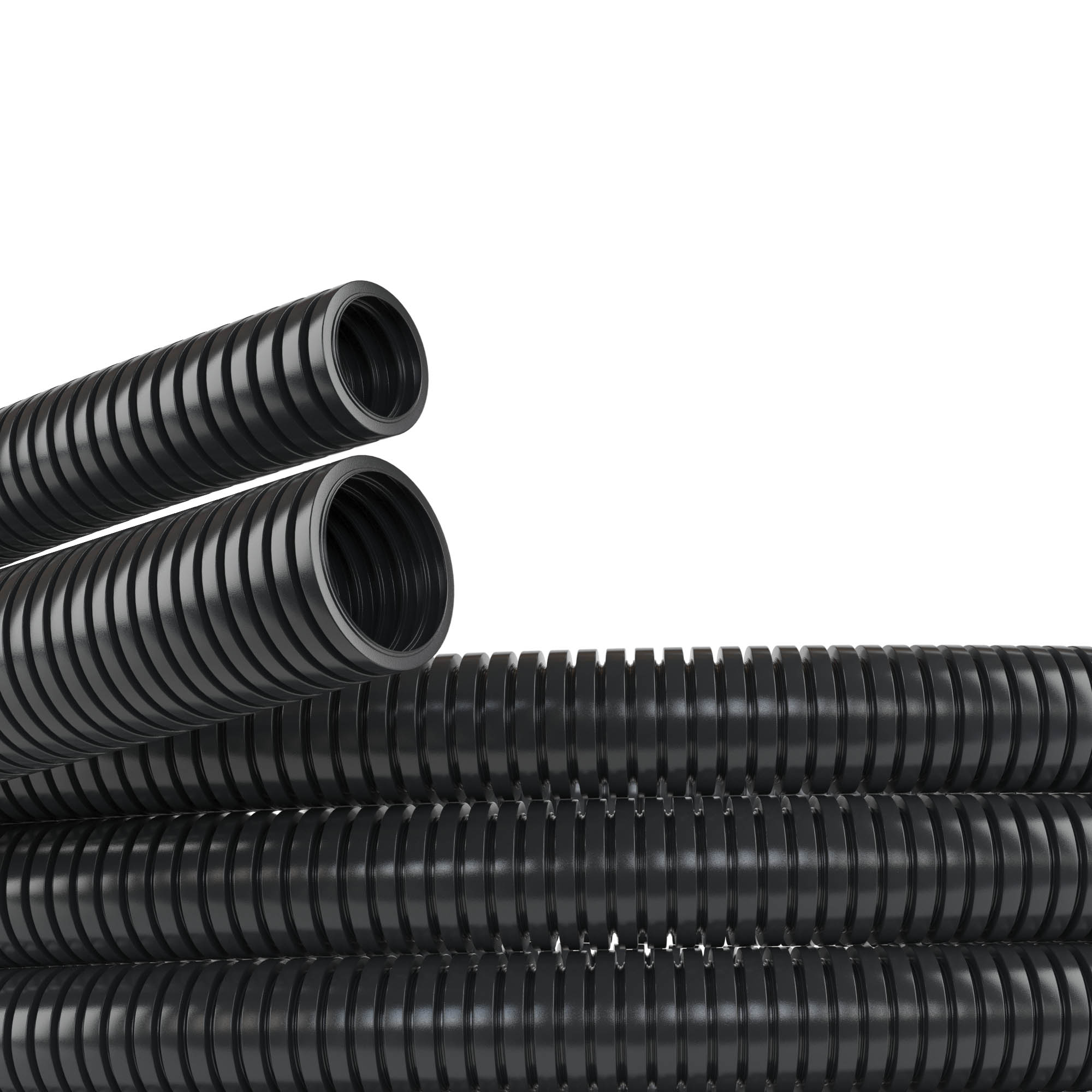

Tube PA6 flexible corrugatted without pull, DN36mm, HF, RoHS, HB, Din 36,3 mm, Dex 42,5 mm , color-black
Code: PA603643HB
Tube PA6 flexible corrugatted without pull, DN36mm, HF, RoHS, HB, Din 36,3 mm, Dex 42,5 mm , color-black
Code: PA603643HB
| Colour | Black |
| Outer diameter, mm | 42.5 |
| Oil resistant | Yes |
| UV resistant | Yes |
| Halogen free | Yes |
| Inner diameter, mm | 36.3 |
| Operational temperature, °C | -25...105 |
| Bending radius, static, mm | 80 |
| Material | Polyamide 6 |
| Tensile strength, N | 300 |
| Nominal diameter, mm | 36 |
| Nominal size in inch | 1 1/2 inch |
| Degree of protection (IP) | IP66 |
| Bending strength | Flexible |
| Sheathing material | Not sheathed |
| With draw wire | No |
| Length | 25000 mm |
| Diameter (nominal) | 36 mm |
| Color | Black |
| Material | PVC |
| -5°С ... +60°С | -25°С ... +105°С |
| Ingress Protection rating, IP | IP66 |
| от -25°С до +60°С | from -25°С to +105°С |
| Shock resistance, J | >1 |
| Cord for wires | No |
| Fire protection | HB |
| ТУ 2248-012-47022248-2009 | Technical specifications 2247-024-47022248-2009 |
| 3 года | 3 years |
| 15 лет | 15 years |
