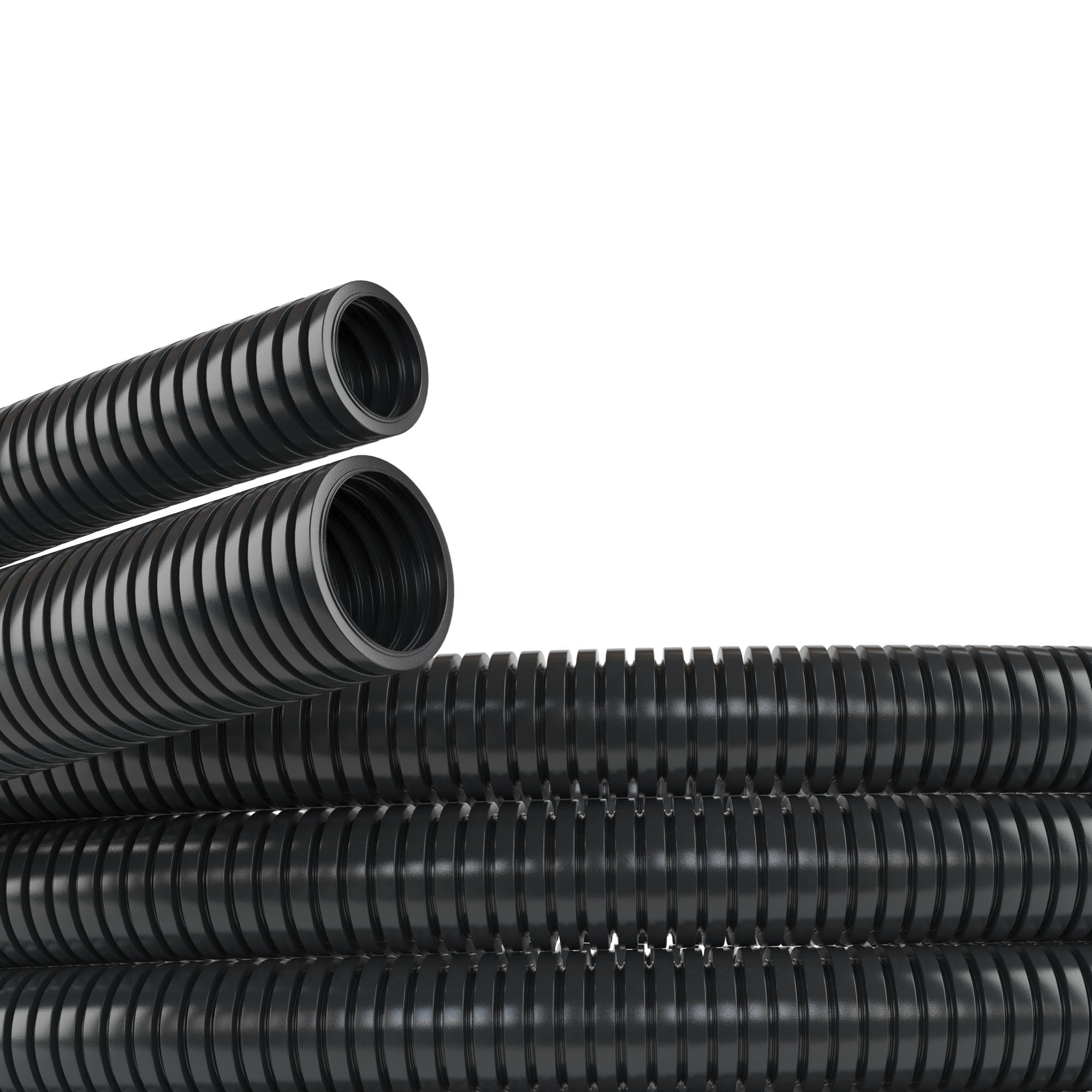

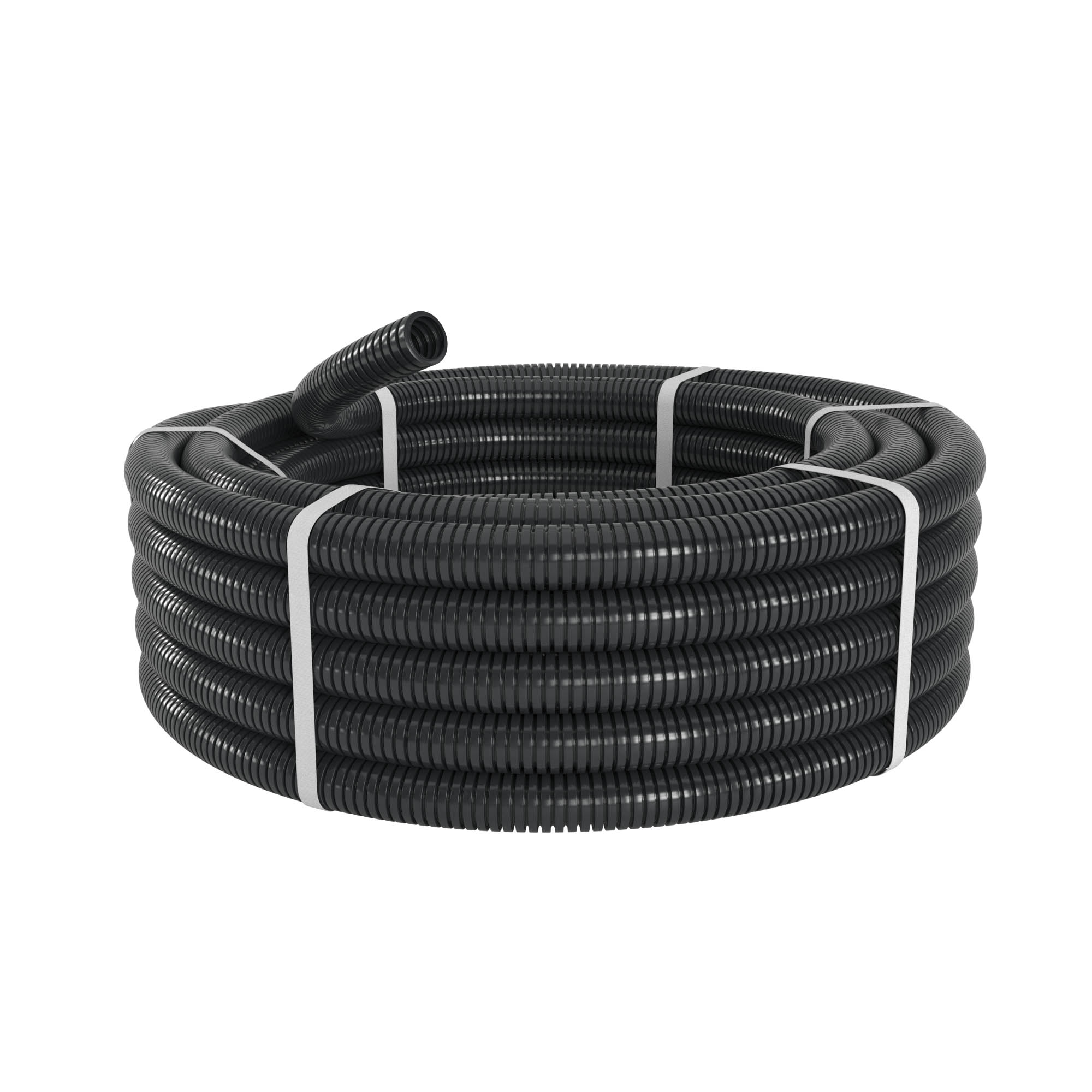

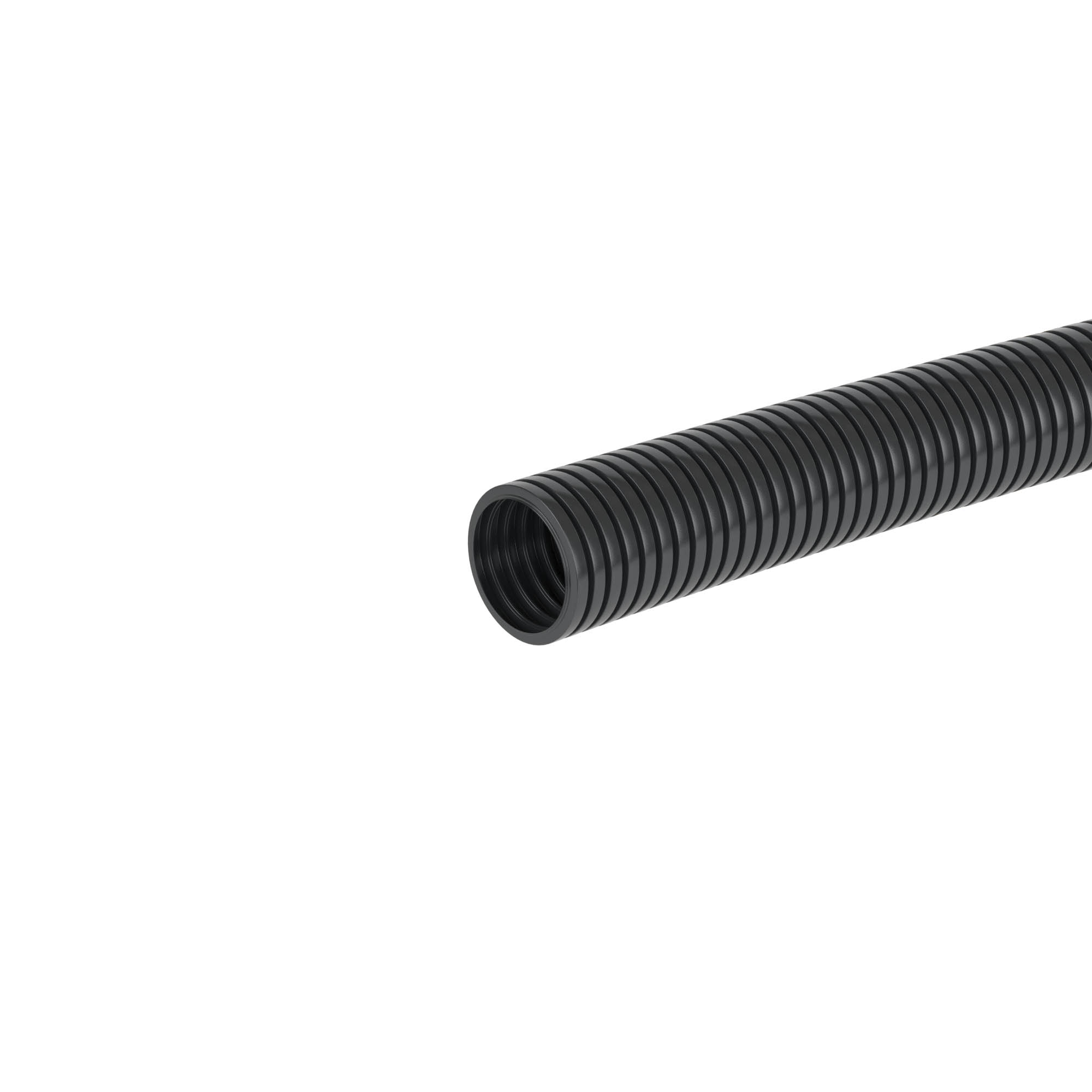

Tube PA6V0 flexible corrugatted, DN12mm, V2, Din 12,2 mm, Dex 15,8 mm, black color

Code: PA601216F2
Colour Black
Outer diameter, mm 15.8
Oil resistant Yes
UV resistant Yes
Inner diameter, mm 12.2
Compressive strength, N 250
Operating temperature, °C - 40...105
Fire resistance in accordance with UL94 V2
Bending radius, static, mm 24
Flame accelerating No
Material Polyamide 6
Tensile strength, N 300
Nominal diameter, mm 12
Nominal size in inch 1/2 inch
Degree of protection (IP) IP65/IP67
Bending strength Flexible
Lengthwise slotted No
Closable (two-part) No
-- No
Sheathing material Not sheathed
Color gray
Raw material PVC
Length, mm 50000
Temperature of mounting, °C -40°С ... +105°С
Ingress Protection rating, IP IP68
Temperature of operation, °C from -40°С to +105°С
Shock resistance, J >2
Cord for wires No
Fire protection V-2 ( по UL-94)
Diameter (nominal), mm 12
