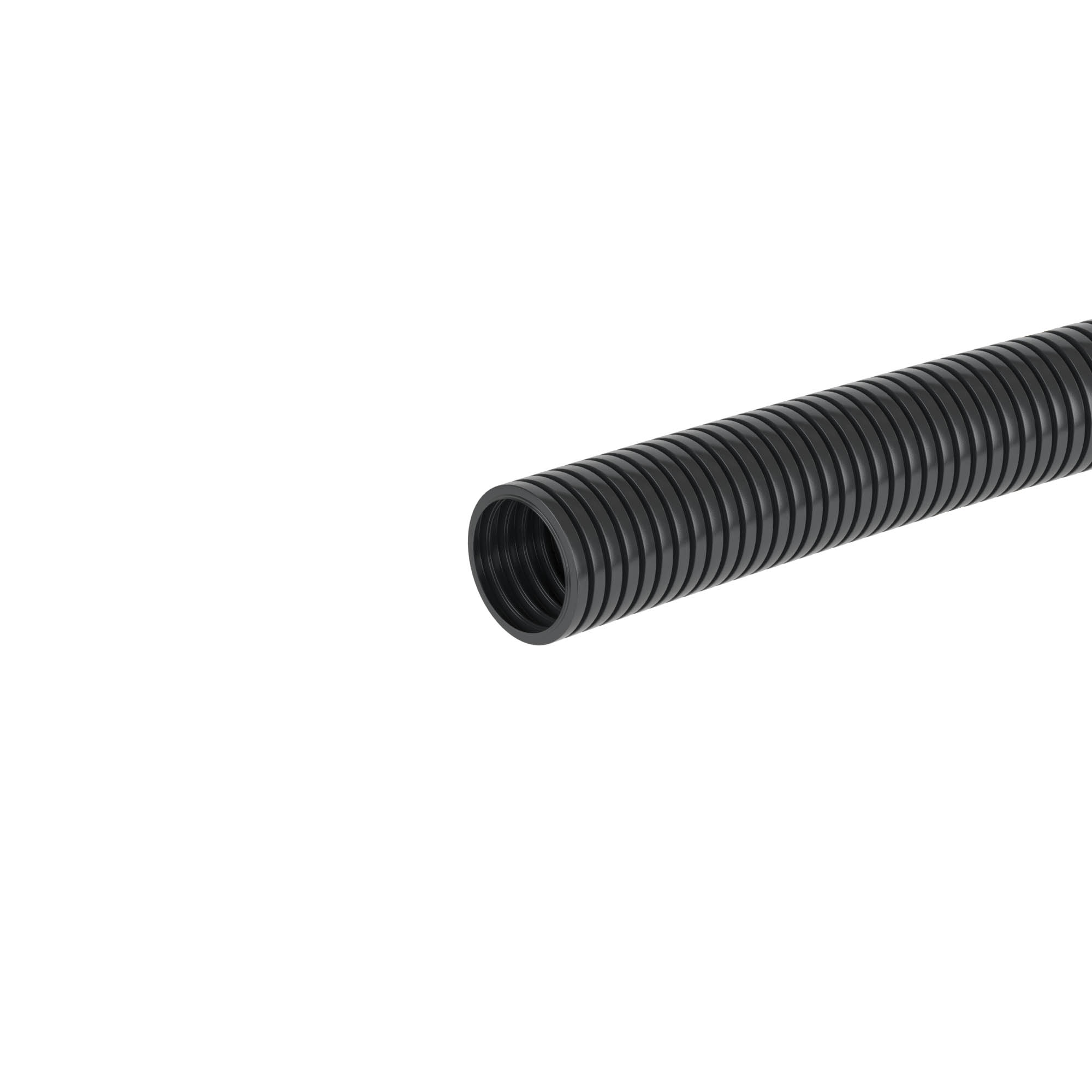

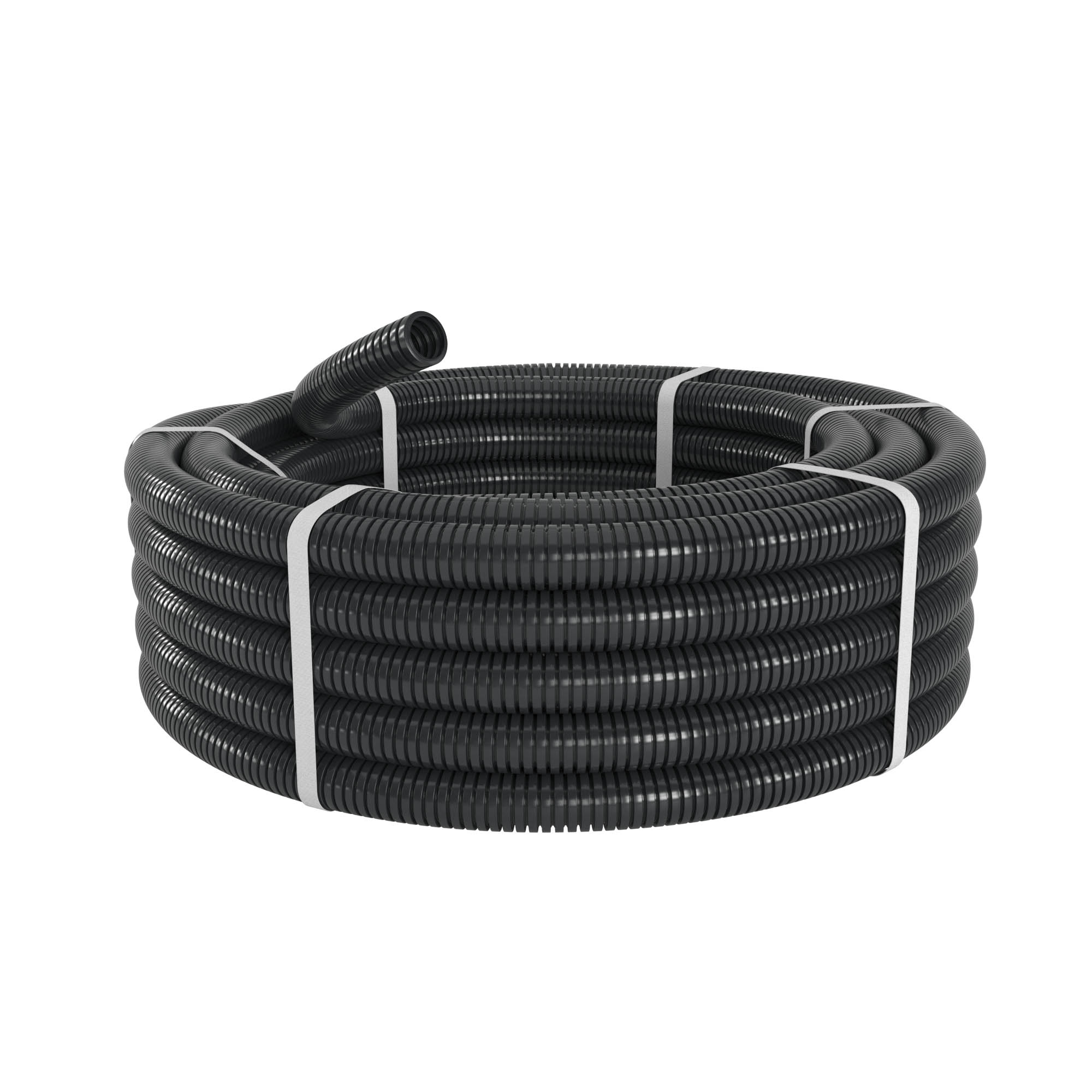

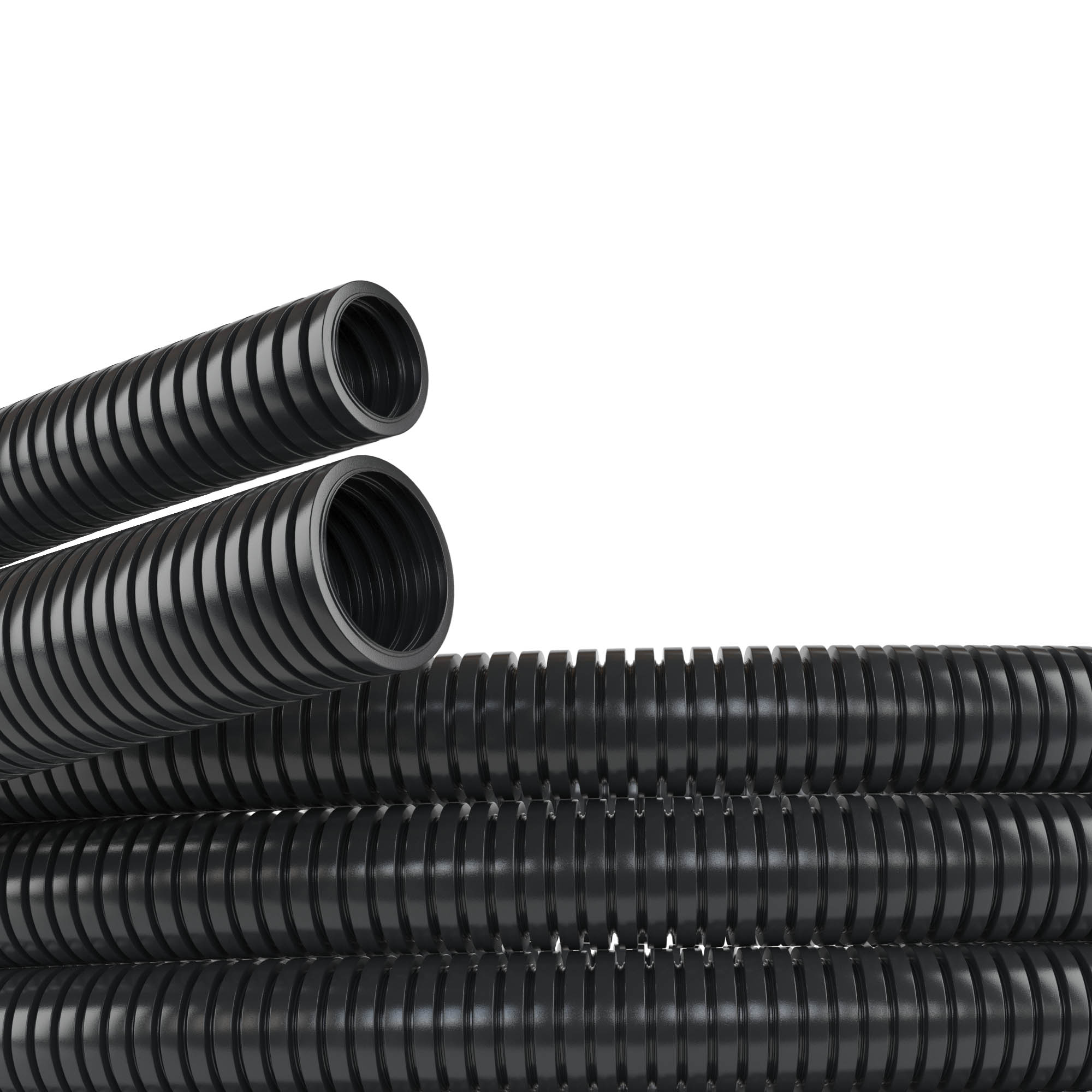

Tube PA6V0 flexible corrugatted, DN10mm, V2, Din 9,7 mm, Dex 13,00 mm, black color

Code: PA601013F2
Tube PA6V0 flexible corrugatted, DN10mm, V2, Din 9,7 mm, Dex 13,00 mm, black color
  • To ask a question
Colour Black

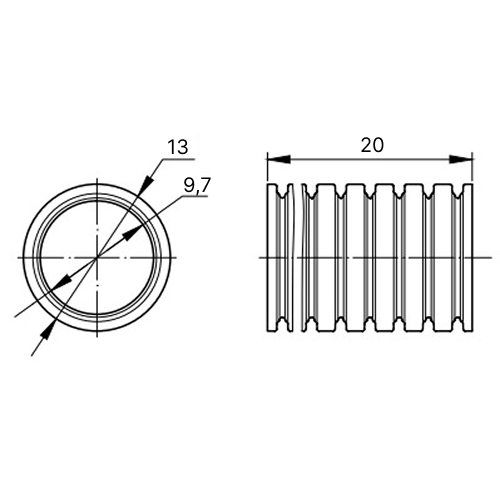

Outer diameter, mm 13
Oil resistant Yes
UV resistant Yes
Inner diameter, mm 9.7
Compressive strength, N 250
Operating temperature, °C - 40...105
Fire resistance in accordance with UL94 V2
Bending radius, static, mm 20
Flame accelerating No
Material Polyamide 6
Tensile strength, N 300
Nominal diameter, mm 10
Nominal size in inch 3/8 inch
Degree of protection (IP) IP65/IP67
Bending strength Flexible
Lengthwise slotted No
Closable (two-part) No
-- No
Sheathing material Not sheathed
Length 50000 mm
Diameter (nominal) 10 mm
Color Black
Material PVC
-5°С ... +60°С -40°С ... +105°С
Ingress Protection rating, IP IP68
от -25°С до +60°С from -40°С to +105°С
Shock resistance, J >2
Cord for wires No
Fire protection V-2 ( по UL-94)
ТУ 2248-012-47022248-2009 Technical specifications 2247-024-47022248-2009
3 года 3 years
15 лет 15 years
