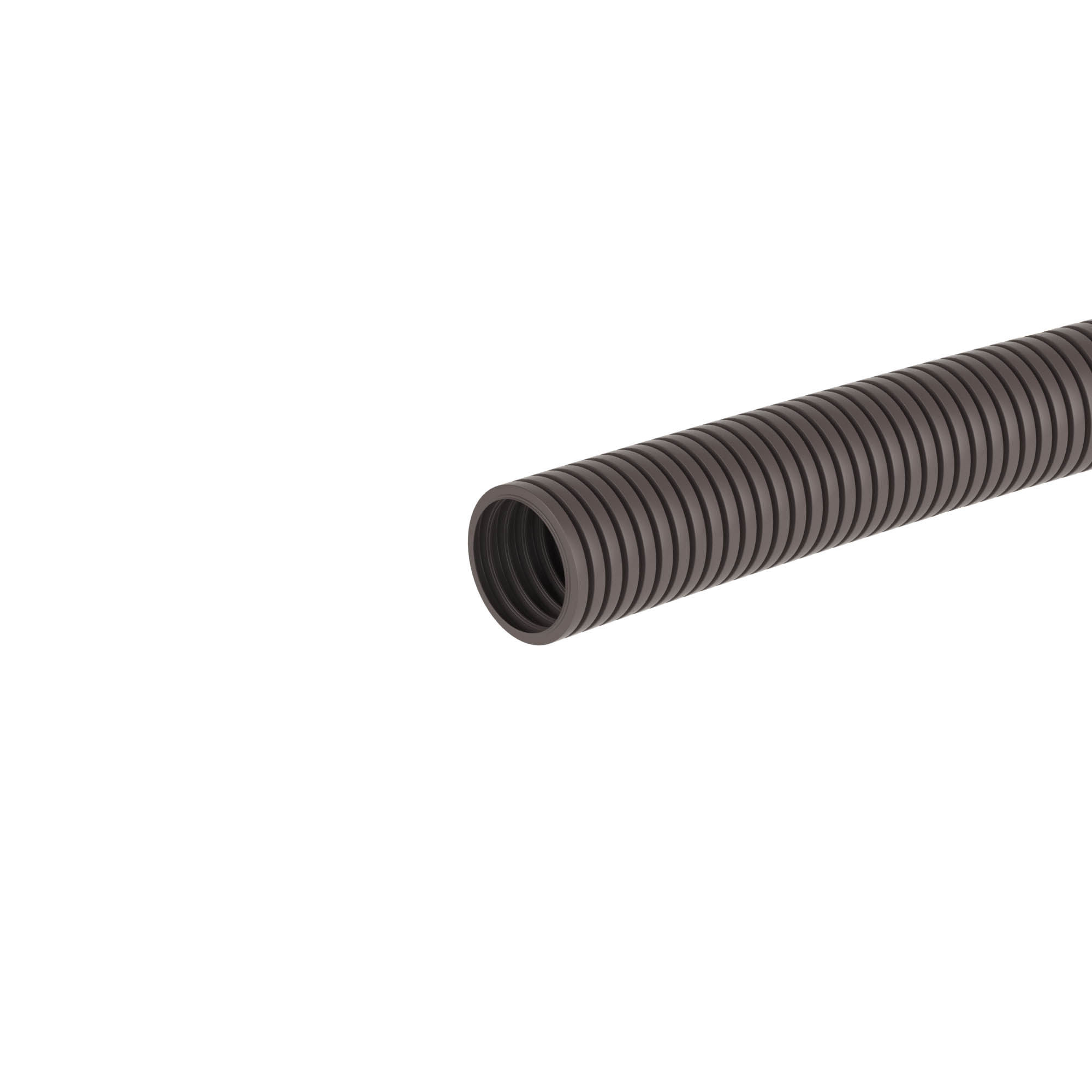

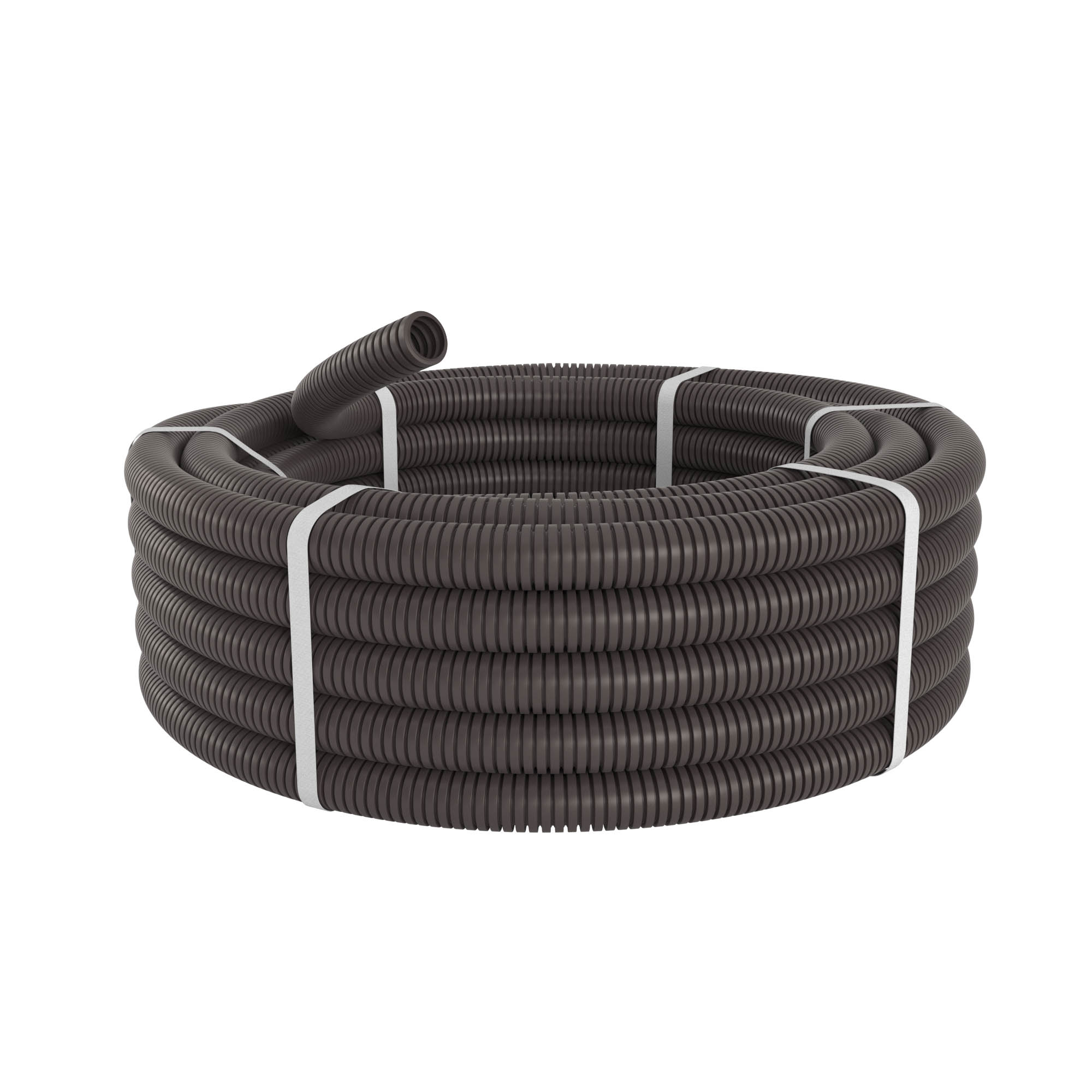

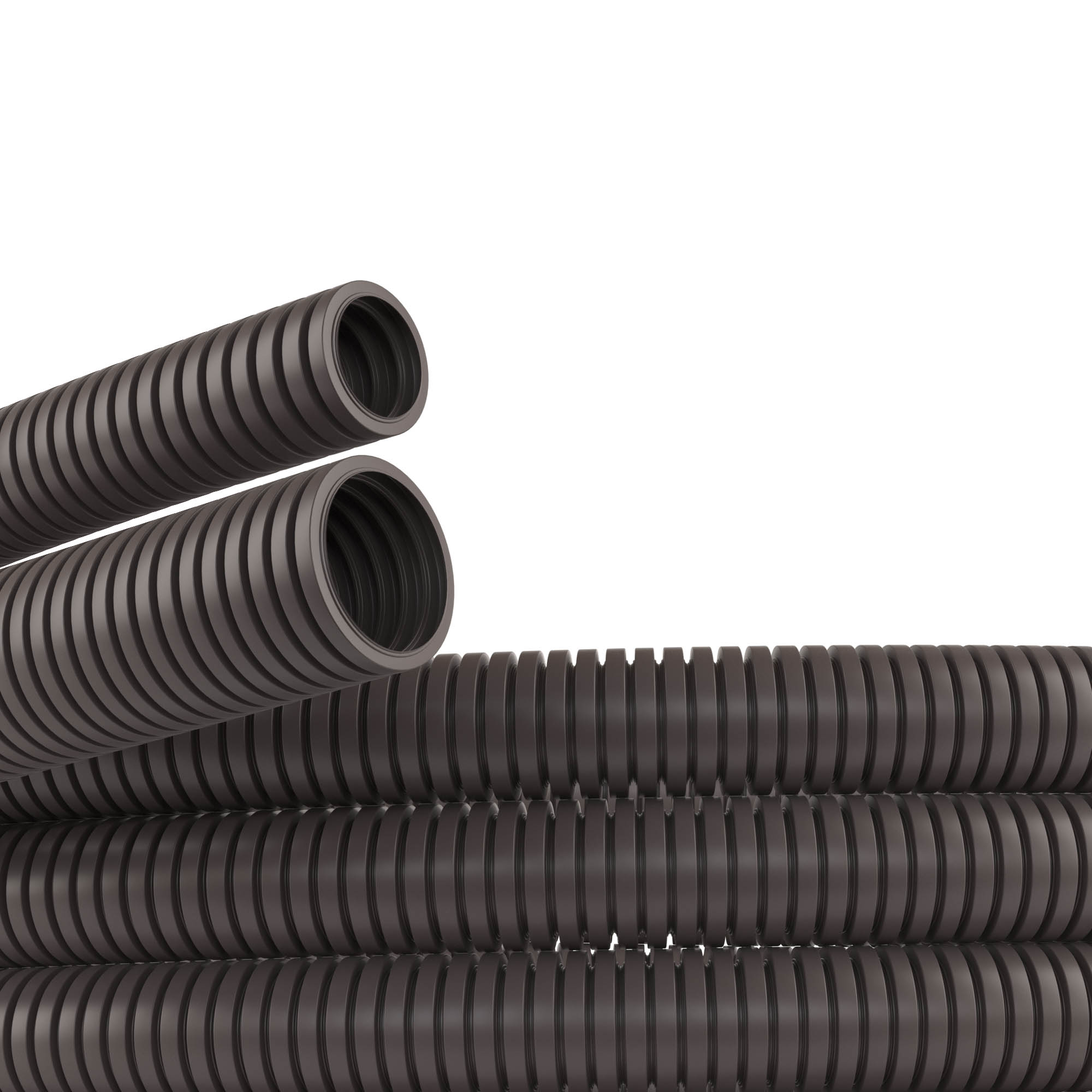

Tube PA6V0 flexible corrugatted without pull, DN10mm, V0, Din 9,7 mm, Dex 13,00 mm , dark gray color

Code: PA601013F0

Tube PA6V0 flexible corrugatted without pull, DN10mm, V0, Din 9,7 mm, Dex 13,00 mm , dark gray color

Code: PA601013F0
Colour Grey
Outer diameter, mm 13
Oil resistant Yes
UV resistant Yes
Inner diameter, mm 9.7
Compressive strength, N 200
Operational temperature, °C -40...105
Fire resistance according to UL94 V0
Bending radius, static, mm 20
Flame accelerating Yes
Material Polyamide 6
Tensile strength, N 300
Nominal diameter, mm 10
Nominal size in inch 3/8 inch
Bending strength Flexible
Lengthwise slotted Yes
Closable (two-part) Yes
Sheathing material Not sheathed
Color Dark gray
Material PVC
Length, mm 50000
Ingress Protection rating, IP IP68
Temperature of operation, °C from -40°С to +105°С
Shock resistance, J >1
Cord for wires No
Fire protection V-0 ( по UL-94)
Diameter (nominal), mm 10
ТУ 2248-012-47022248-2009 Technical specifications 2247-024-47022248-2009
3 года 3 years
15 лет 15 years
