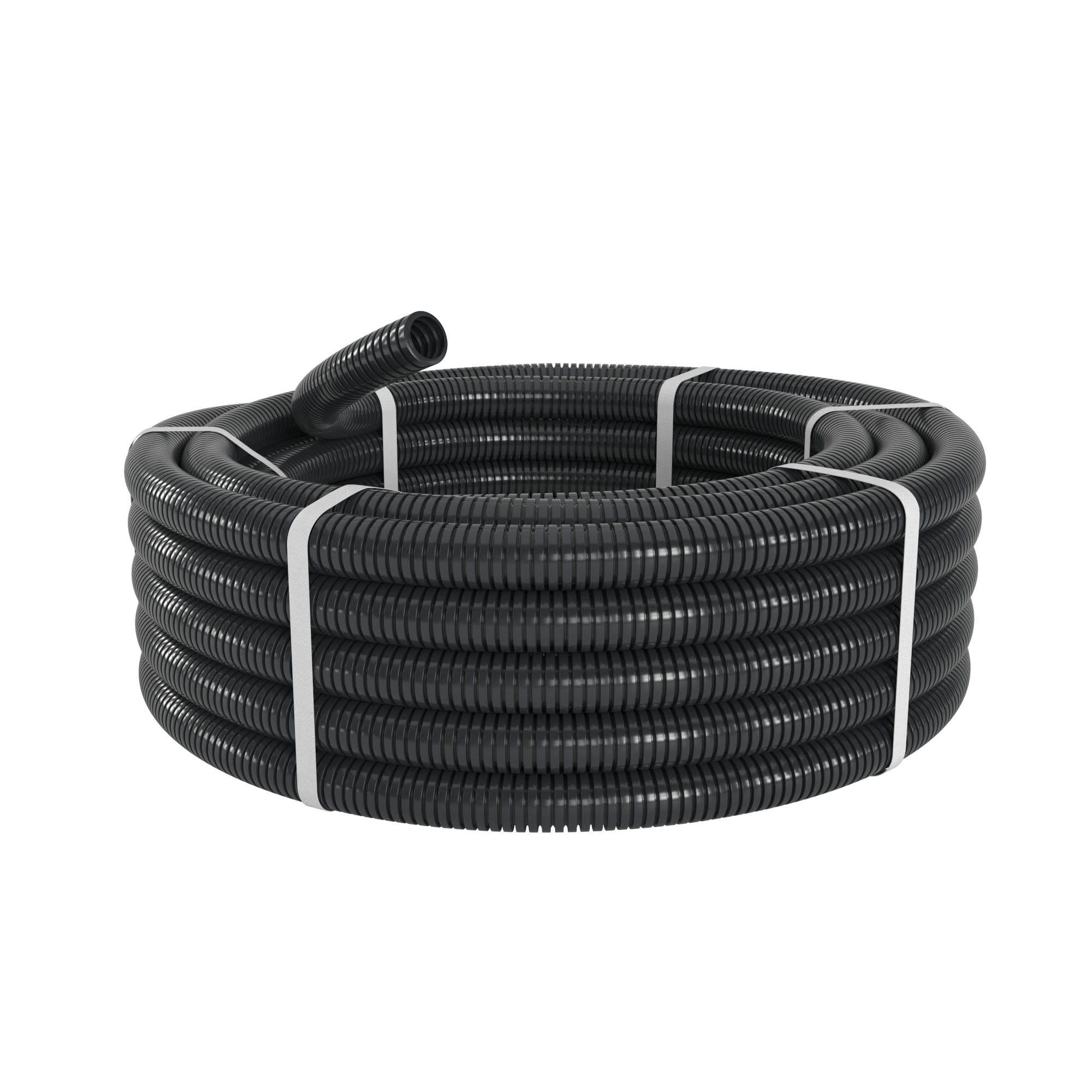

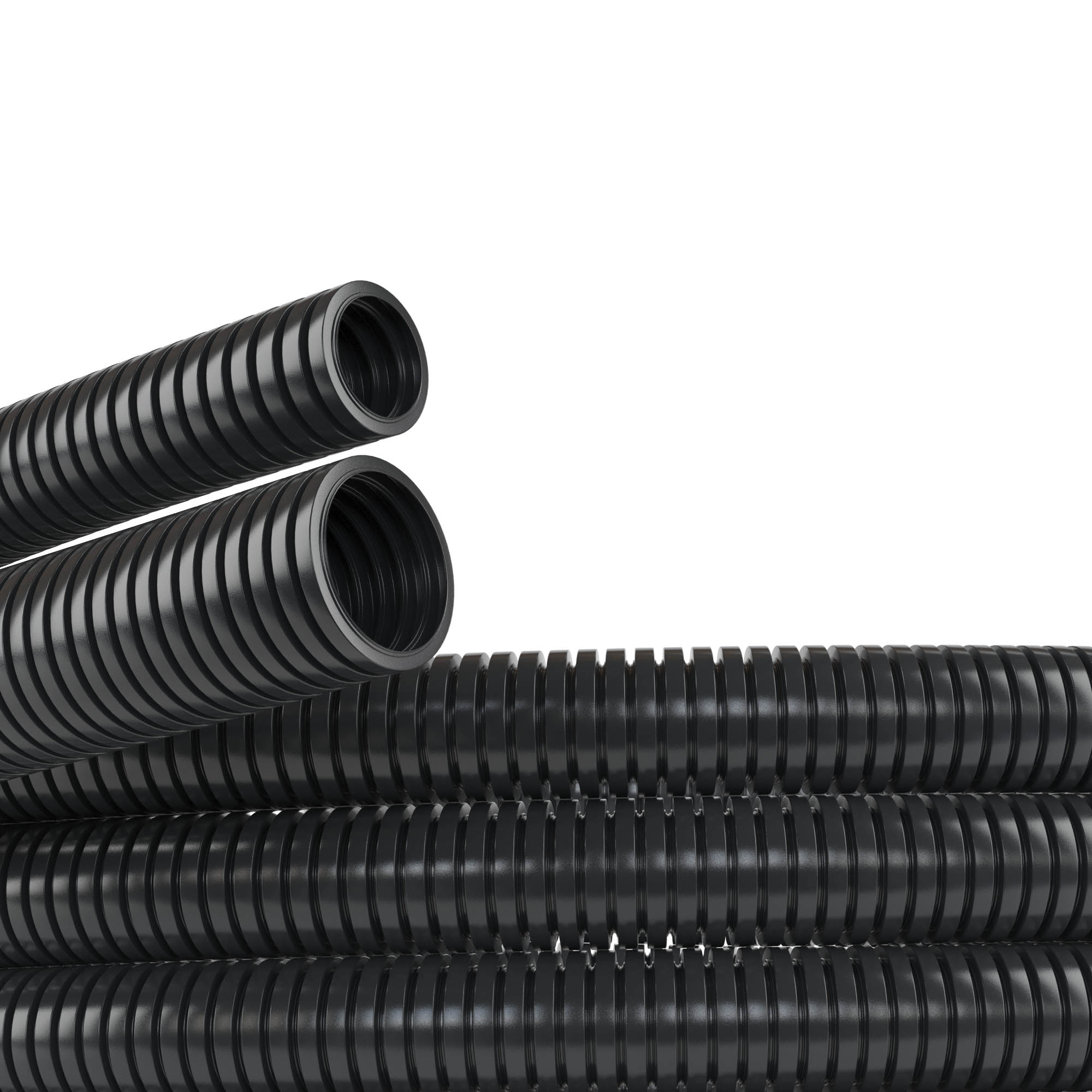

Tube PA6 flexible corrugatted without pull, DN7mm, HF, RoHS, HB, Din 6,8 mm, Dex 10,1 mm , color-black

Code: PA600710HB

Tube PA6 flexible corrugatted without pull, DN7mm, HF, RoHS, HB, Din 6,8 mm, Dex 10,1 mm , color-black

Code: PA600710HB
Colour Black
Outer diameter, mm 10.1
Oil resistant Yes
UV resistant Yes
Halogen free Yes
Inner diameter, mm 6.8
Compressive strength, N 200
Operational temperature, °C -25...105
Bending radius, static, mm 15
Flame accelerating Yes
Material Polyamide 6
Tensile strength, N 150
Nominal diameter, mm 7
Nominal size in inch 1/4 inch
Degree of protection (IP) IP66
Bending strength Flexible
Lengthwise slotted Yes
Closable (two-part) Yes
Sheathing material Not sheathed
High conducting inner coating Yes
With draw wire Yes
Length 50000 mm
Diameter (nominal) 7 mm
Color Black
Material PVC
-5°С ... +60°С -25°С ... +105°С
Ingress Protection rating, IP IP66
от -25°С до +60°С from -25°С to +105°С
Shock resistance, J >1
Cord for wires 3000
Fire protection HB
ТУ 2248-012-47022248-2009 Technical specifications 2247-024-47022248-2009
3 года 3 years
15 лет 15 years
