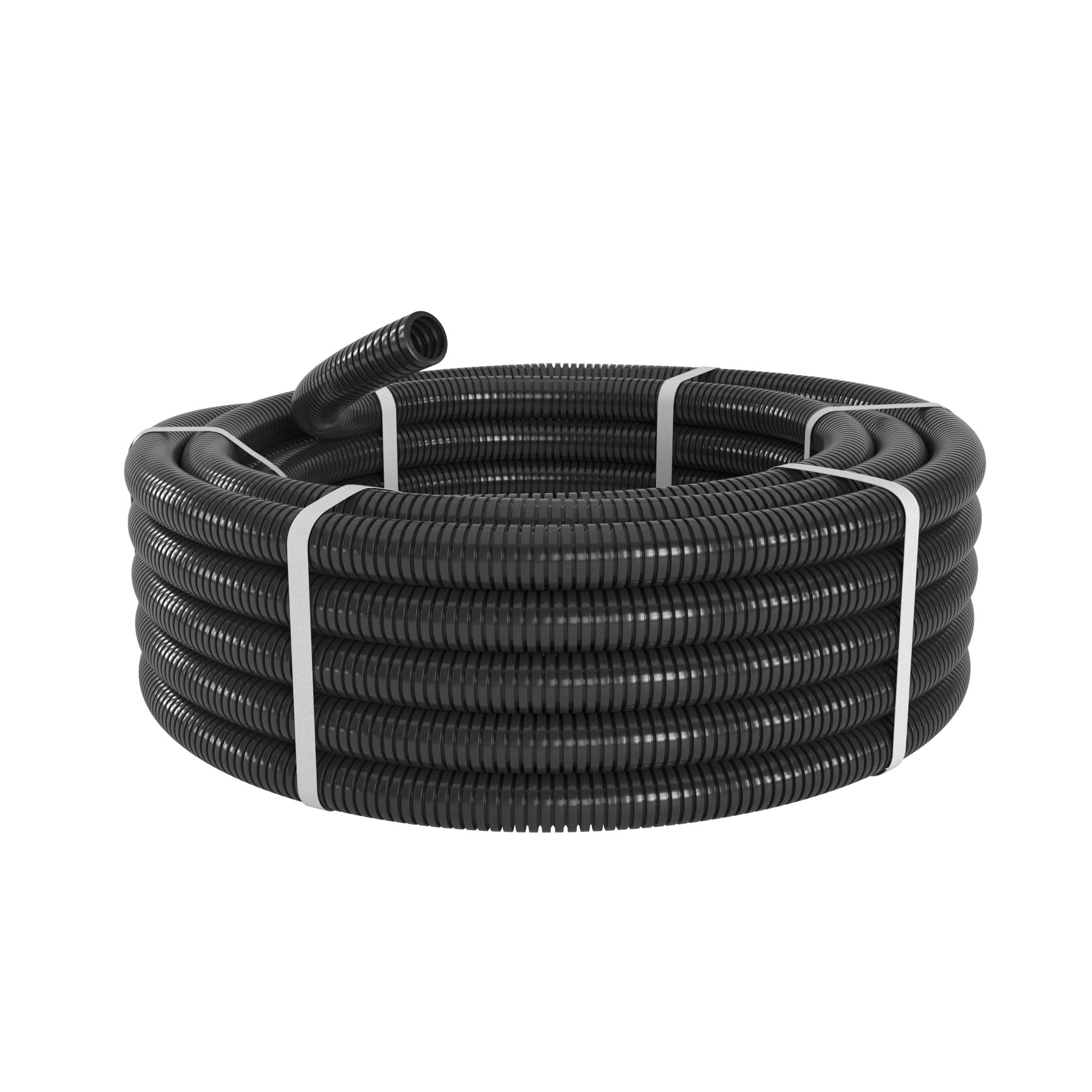

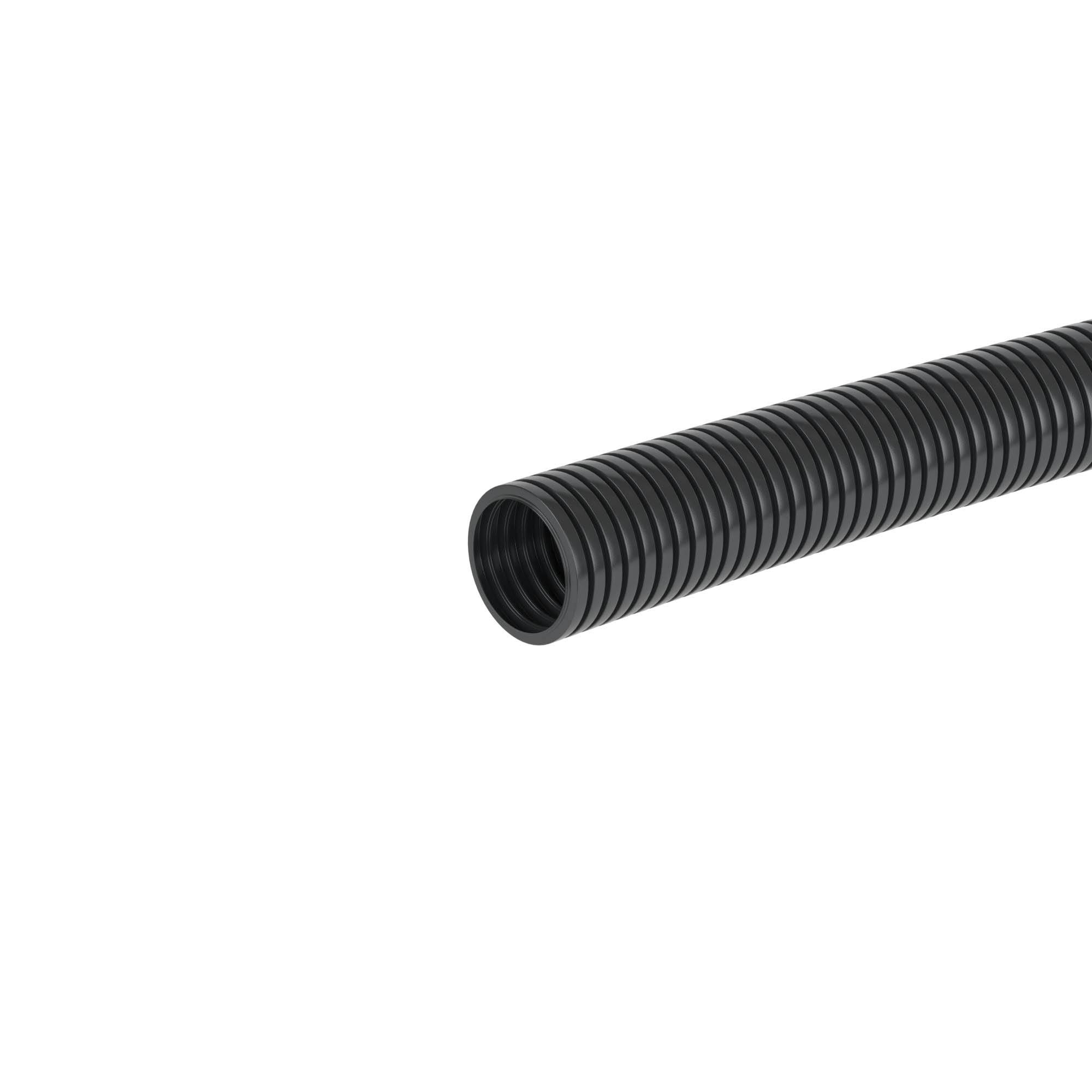

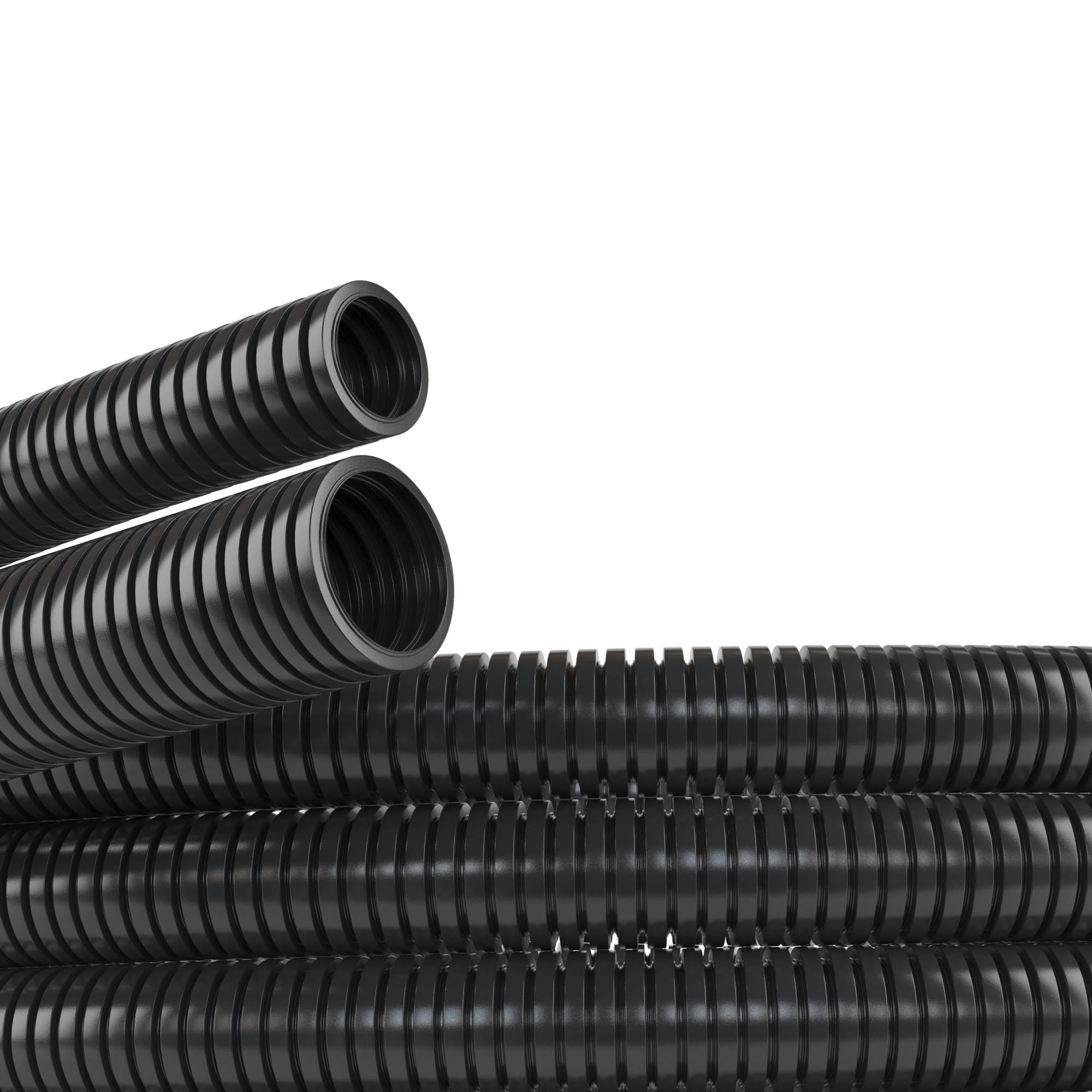

Tube PA6V0 flexible corrugatted, DN7mm, V2, Din 6,3 mm, Dex 10,00 mm, black color
Code: PA600710F2
Tube PA6V0 flexible corrugatted, DN7mm, V2, Din 6,3 mm, Dex 10,00 mm, black color
Code: PA600710F2
| Colour | Black |
| Outer diameter, mm | 10.1 |
| Oil resistant | Yes |
| UV resistant | Yes |
| Inner diameter, mm | 6.8 |
| Compressive strength, N | 250 |
| Operational temperature, °C | -40...105 |
| Fire resistance according to UL94 | V2 |
| Bending radius, static, mm | 14 |
| Material | Polyamide 6 |
| Tensile strength, N | 300 |
| Nominal diameter, mm | 7 |
| Nominal size in inch | 1/4 inch |
| Bending strength | Flexible |
| Sheathing material | Not sheathed |
| With draw wire | No |
| Length | 50000 mm |
| Diameter (nominal) | 7 mm |
| Color | Black |
| Material | PVC |
| -5°С ... +60°С | -40°С ... +105°С |
| Ingress Protection rating, IP | IP68 |
| от -25°С до +60°С | from -40°С to +105°С |
| Shock resistance, J | >1 |
| Cord for wires | No |
| Fire protection | V-2 ( по UL-94) |
| ТУ 2248-012-47022248-2009 | Technical specifications 2247-024-47022248-2009 |
| 3 года | 3 years |
| 15 лет | 15 years |
