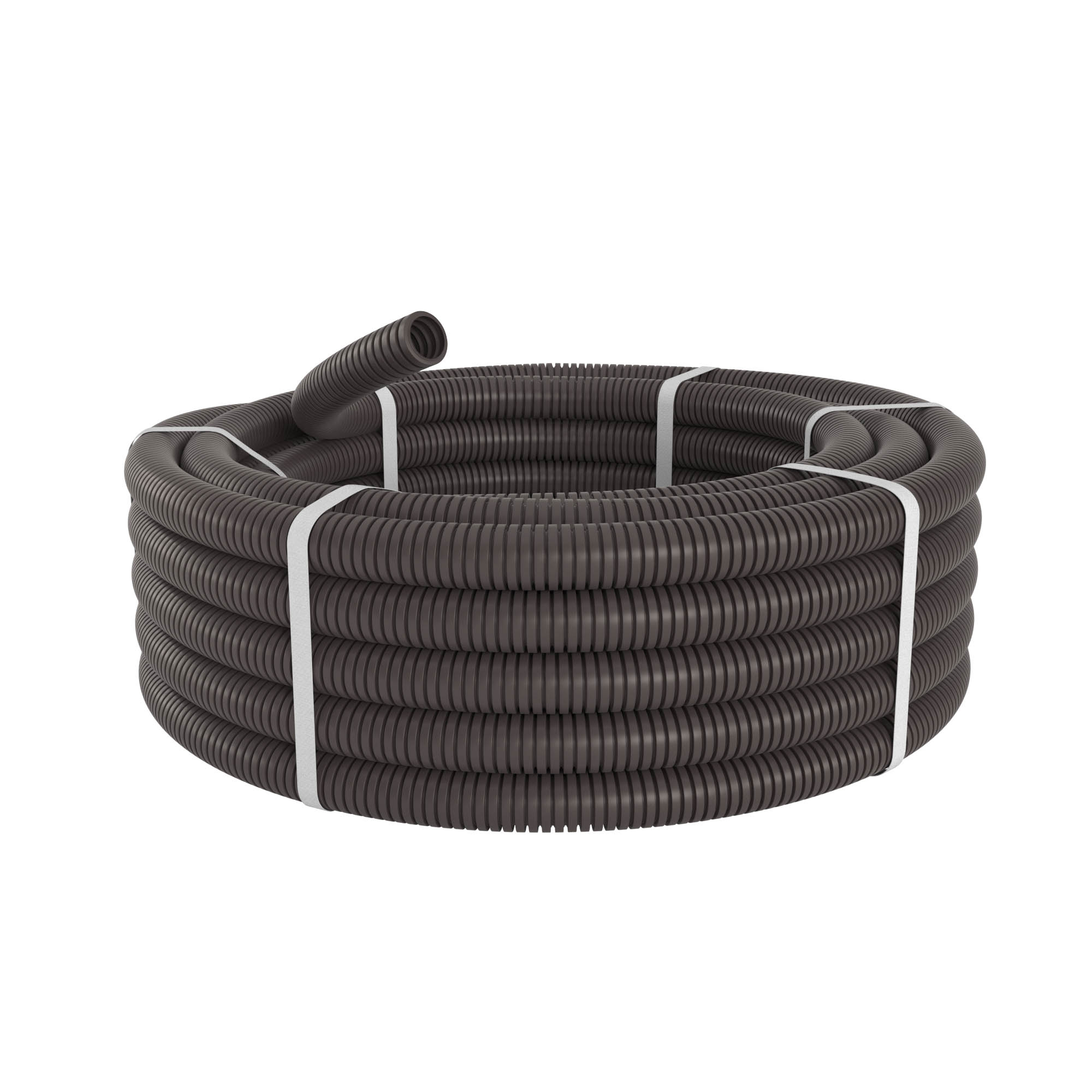

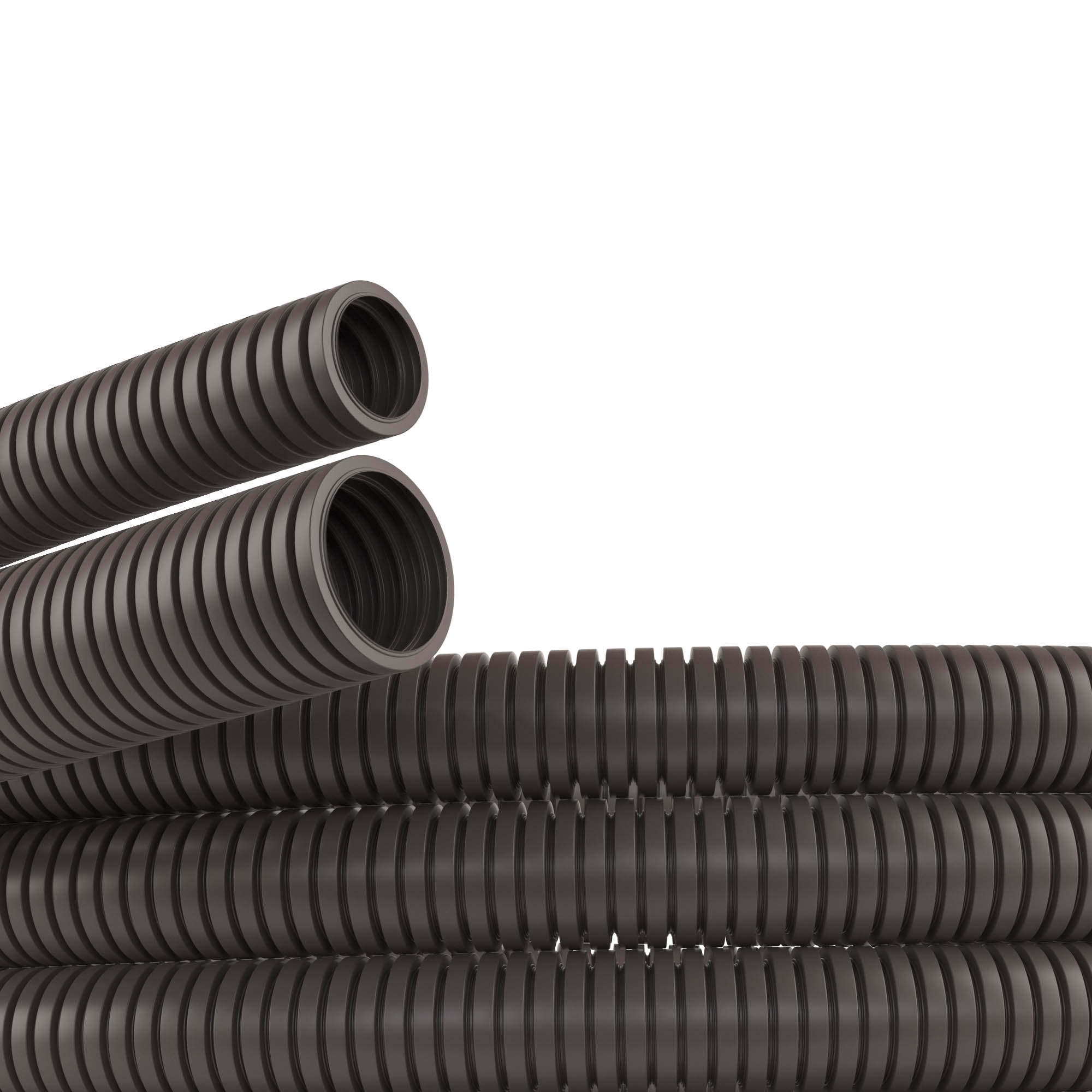

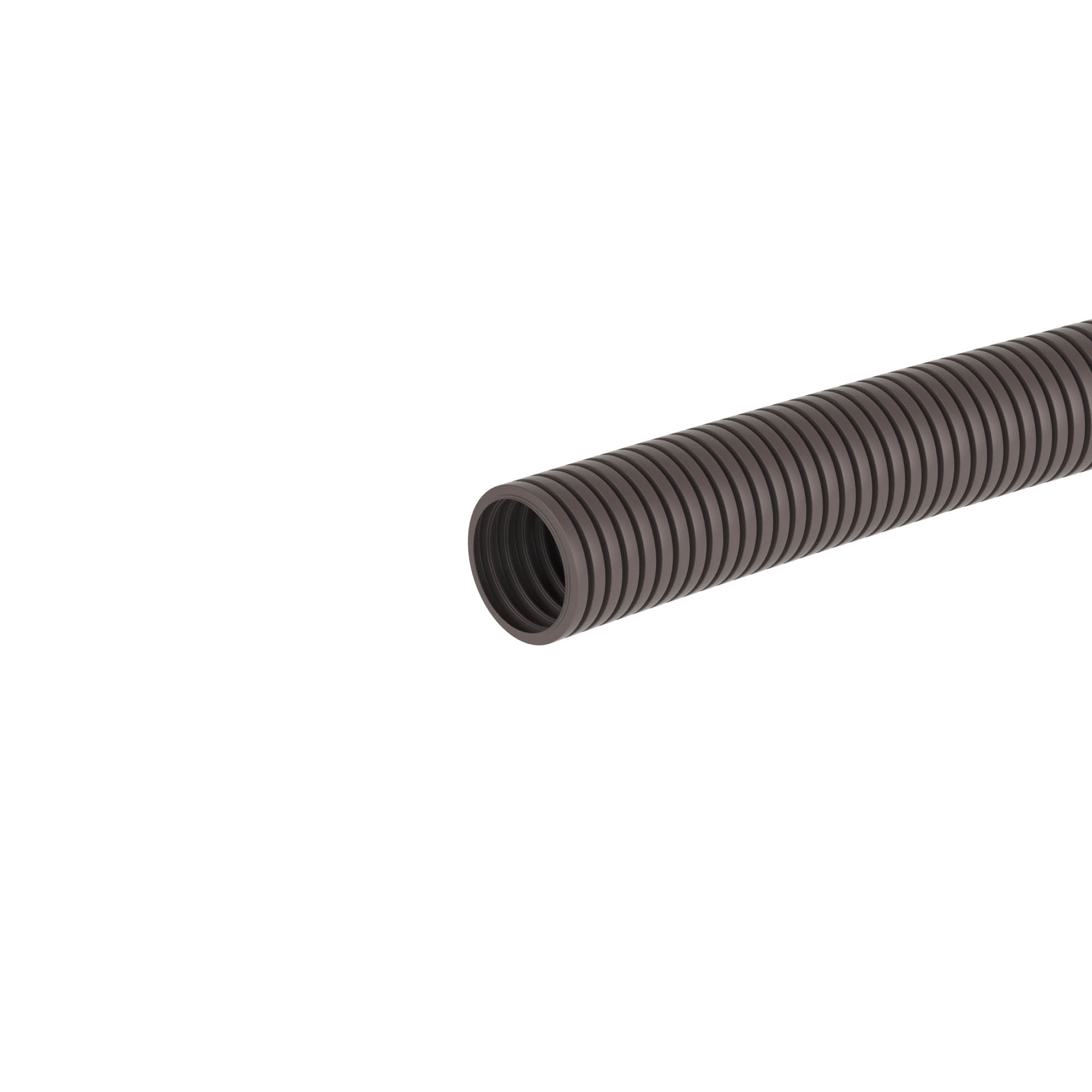

Tube PA6V0 flexible corrugatted without pull, DN7mm, V0, Din 6,3 mm, Dex 10,00 mm , dark gray color

Code: PA600710F0
Colour Grey
Outer diameter, mm 10.1
Oil resistant Yes
UV resistant Yes
Inner diameter, mm 6.8
Compressive strength, N 200
Operating temperature, °C - 40...105
Fire resistance in accordance with UL94 V0
Bending radius, static, mm 14
Flame accelerating No
Material Polyamide 6
Tensile strength, N 200
Nominal diameter, mm 7
Nominal size in inch 1/4 inch
Degree of protection (IP) IP65/IP67
Bending strength Flexible
Lengthwise slotted No
Closable (two-part) No
-- No
Sheathing material Not sheathed
Color gray
Raw material PVC
Length, mm 50000
Temperature of mounting, °C -40°С ... +105°С
Ingress Protection rating, IP IP68
Temperature of operation, °C from -40°С to +105°С
Shock resistance, J >1
Cord for wires No
Fire protection V-0 ( по UL-94)
Diameter (nominal), mm 7
