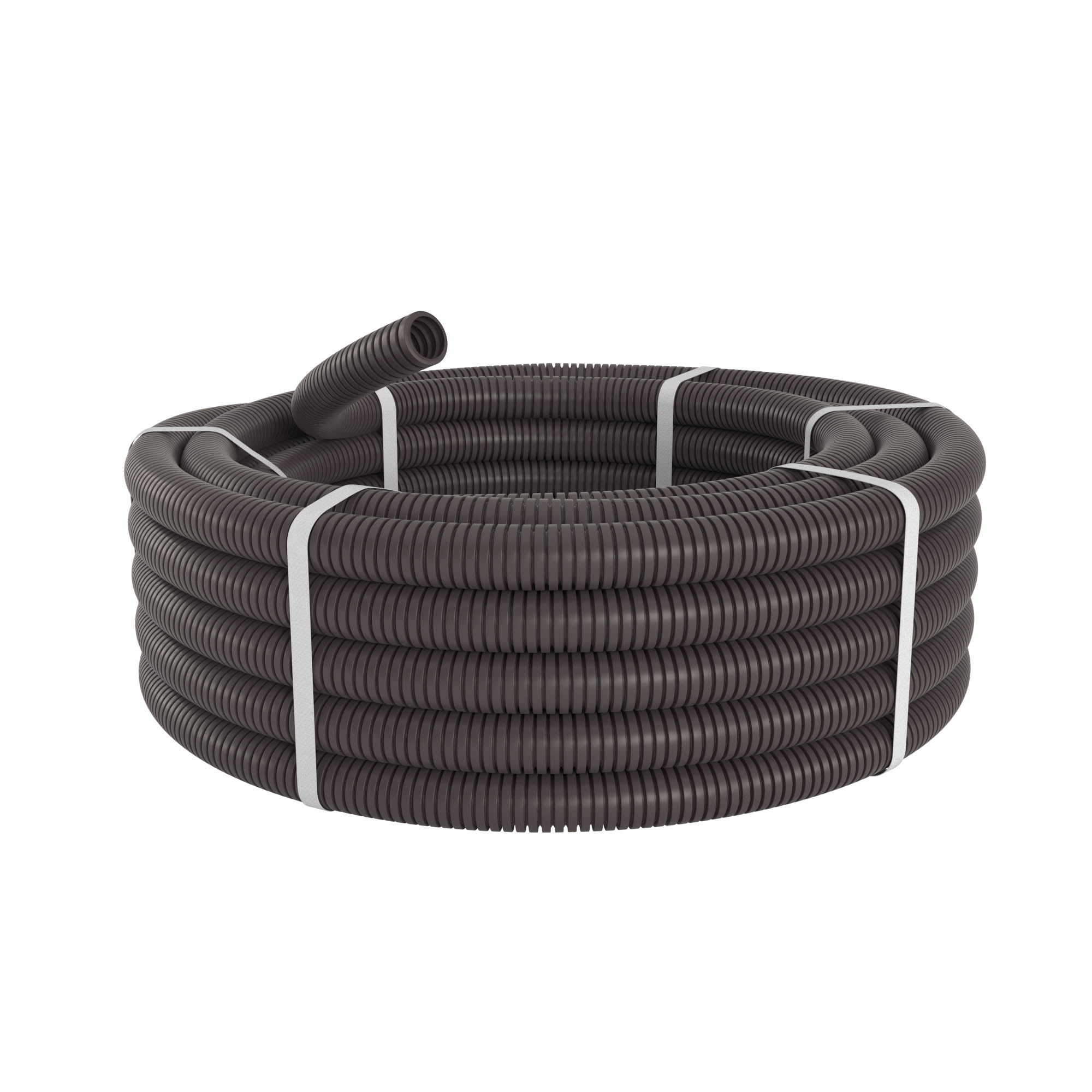

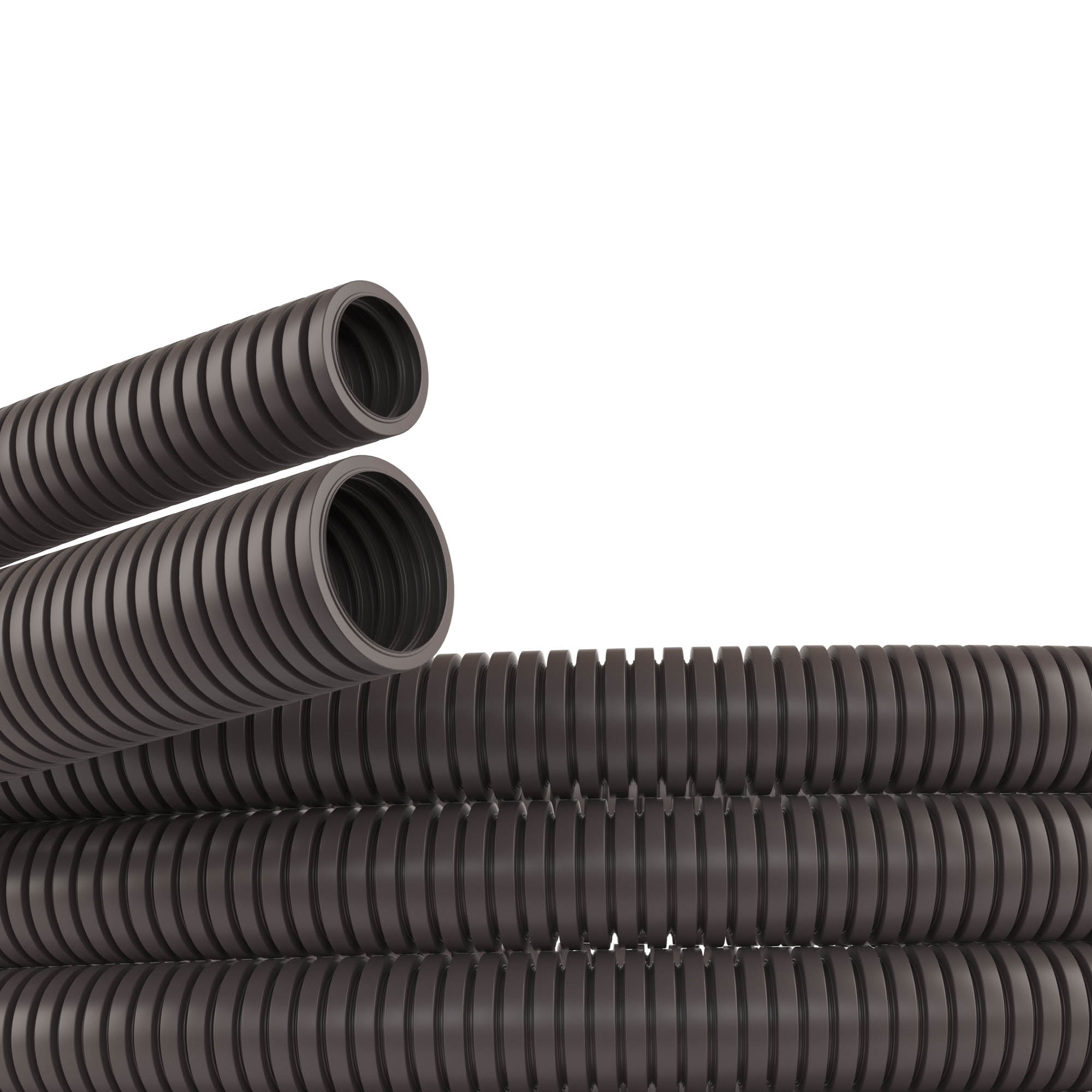

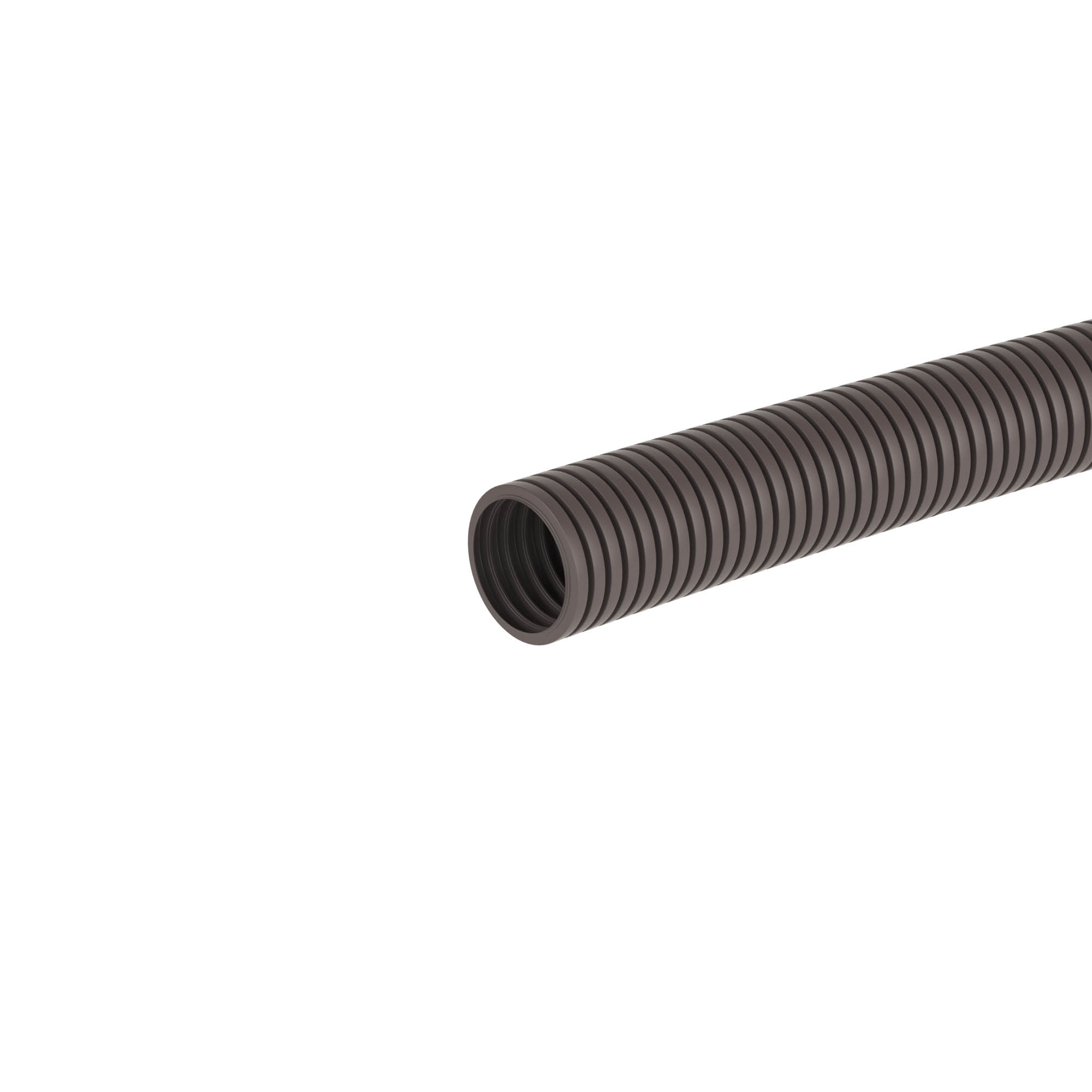

Tube PA6V0 flexible corrugatted Ø16mm without pul, 100m, dark gray color

Code: 80016
Color gray
Material PVC
Length, mm 100000
Temperature of mounting, °C -40°С ... +105°С
Ingress Protection rating, IP IP68
Temperature of usage, °C from -40°С to +105°С
Shock resistance, J >1
Cord for wires No
Fire protection V-0 ( по UL-94)
Diameter (nominal), mm 16
Colour Grey
Outer diameter, mm 16
Oil resistant Yes
UV resistant Yes
Halogen free Yes
Inner diameter, mm 12.7
Compressive strength, N 200
Operating temperature, °C -40…105
Fire resistance in accordance with UL94 Other
Bending radius, static, mm 32
Flame accelerating Yes
Approved according to UR No
Approved according to CSA No
Approved according to DIN 5510 No
Material Polyamide 6
Tensile strength, N 300
Approves according to Vd T?V/GGVS No
Approved according to LUL/British Standard No
Approved according to Lloyd's Register TA No
Approved according to UTAC No
Nominal diameter, mm 16
Nominal size in inch 5/8 inch
Degree of protection (IP) IP68
Bending strength Flexible
Lengthwise slotted No
Closable (two-part) No
Approved according to DIN EN 61386-23 No
Approved according to NF F 16-101 No
-- No
Sheathing material Not sheathed
