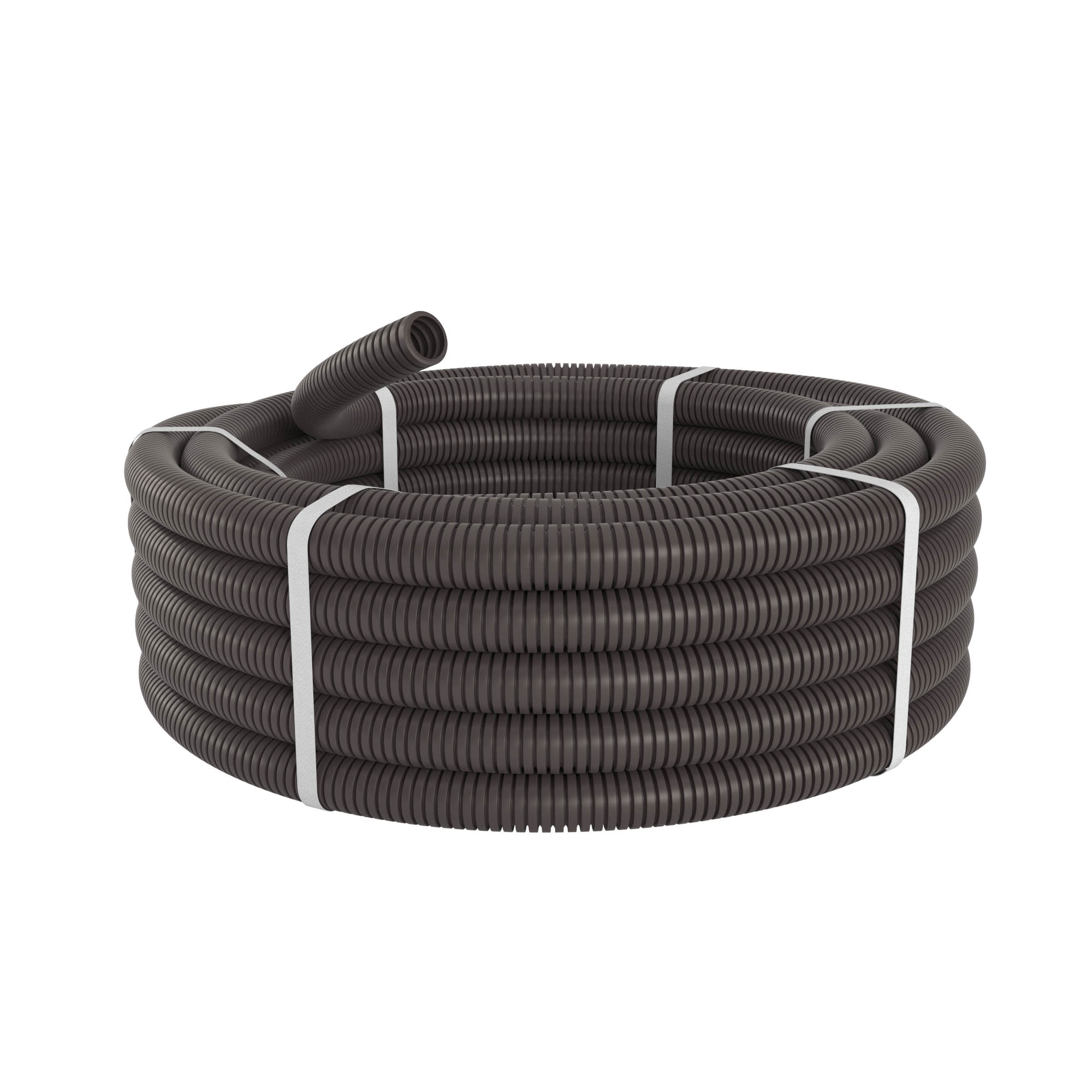

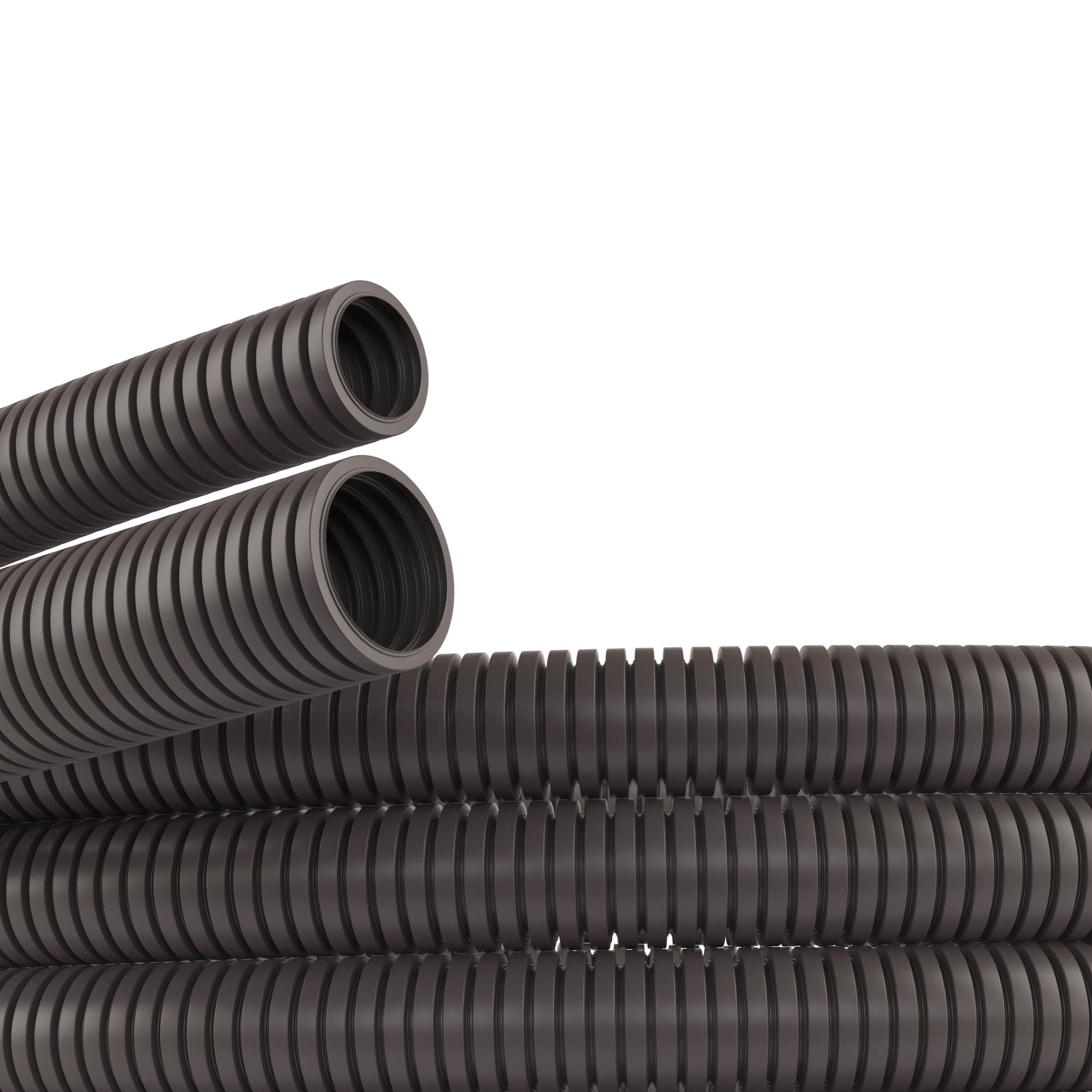

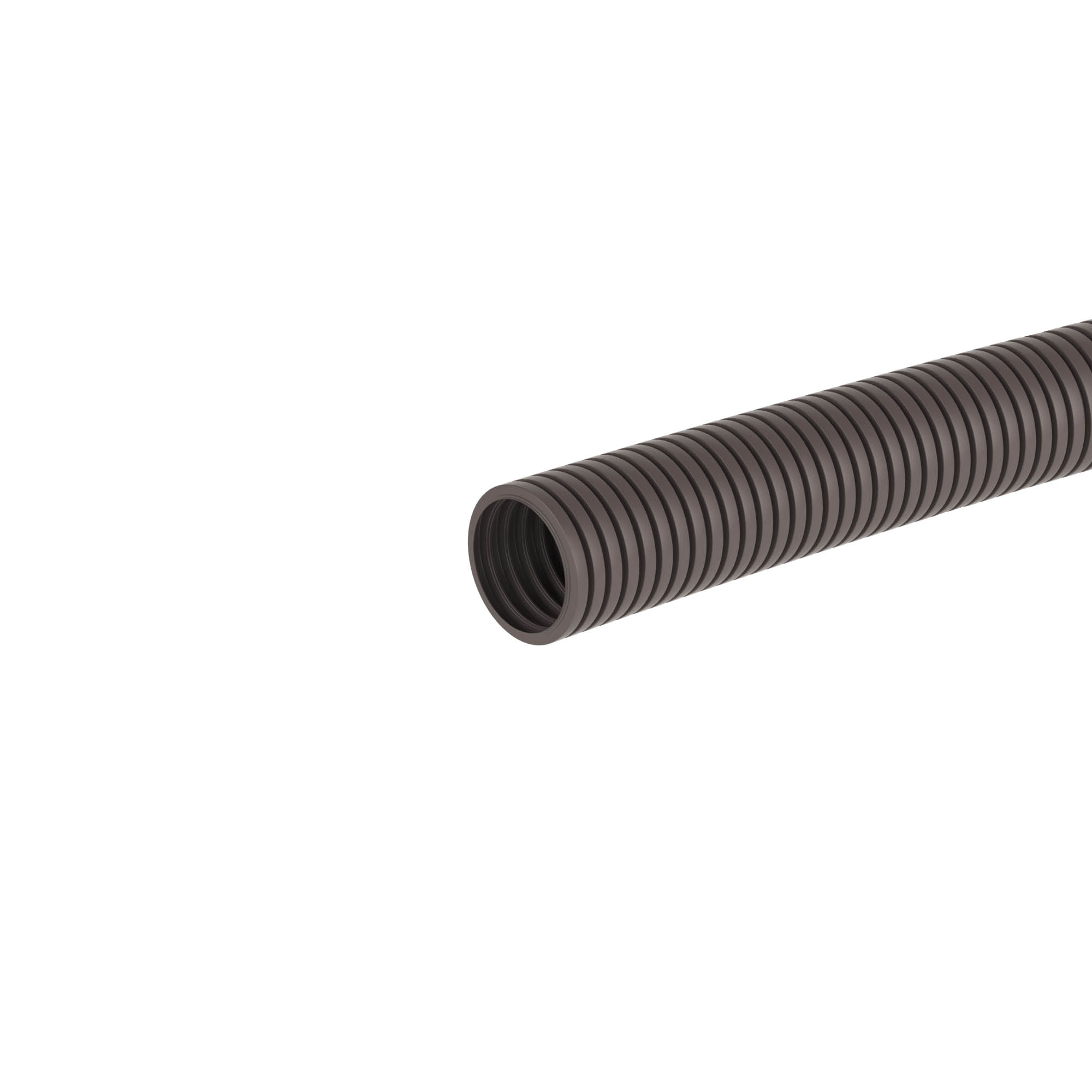

Tube PA6V0 flexible corrugatted Ø10mm without pul, 100m, dark gray color
Code: 80010
Tube PA6V0 flexible corrugatted Ø10mm without pul, 100m, dark gray color
Code: 80010
Colour | Grey |
Outer diameter, mm | 10.1 |
Oil resistant | Yes |
UV resistant | Yes |
Inner diameter, mm | 6.8 |
Compressive strength, N | 200 |
Operational temperature, °C | -40...105 |
Fire resistance according to UL94 | Other |
Bending radius, static, mm | 20 |
Flame accelerating | Yes |
Approved according to UR | Yes |
Approved according to CSA | Yes |
Approved according to DIN 5510 | Yes |
Material | Polyamide 6 |
Tensile strength, N | 300 |
Approves according to Vd TÜV/GGVS | Yes |
Approved according to LUL/British Standard | Yes |
Approved according to Lloyd's Register TA | Yes |
Approved according to UTAC | Yes |
Nominal diameter, mm | 10 |
Nominal size in inch | 3/8 inch |
Degree of protection (IP) | IP68 |
Bending strength | Flexible |
Lengthwise slotted | Yes |
Closable (two-part) | Yes |
Approved according to DIN EN 61386-23 | Yes |
Approved according to NF F 16-101 | Yes |
Sheathing material | Not sheathed |
Length | 100000 mm |
Diameter (nominal) | 10 mm |
Color | Dark gray |
Material | PVC |
-5°С ... +60°С | -40°С ... +105°С |
Ingress Protection rating, IP | IP68 |
от -25°С до +60°С | from -40°С to +105°С |
Shock resistance, J | >1 |
Cord for wires | No |
Fire protection | V-0 ( по UL-94) |
ТУ 2248-012-47022248-2009 | Technical specifications 2247-024-47022248-2009 |
3 года | 3 years |
15 лет | 15 years |
