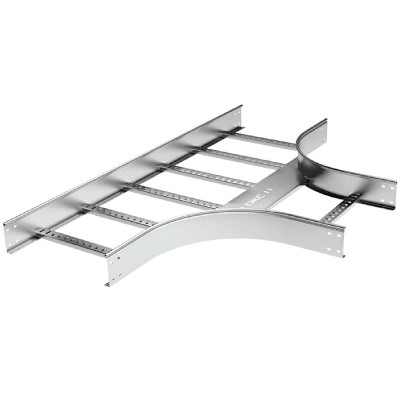

Horizontal tee 50х200 R300, hot-dip galvanized
Code: LT5302HDZ
Horizontal tee 50х200 R300, hot-dip galvanized
Code: LT5302HDZ
Colour | Light grey |
Model | Included connector |
Surface protection | Hot-dip galvanized |
Type of rung | Perforated profile |
Material quality | Steel |
Material | Steel |
Inner radius, mm | 300 |
Cable ladder width, mm | 200 |
Cable ladder height, mm | 50 |
Stainless steel, pickled | No |
Wide span model | No |
Type of side joist | Profile (open) |
Suitable for circuit integrity | No |
Product type | System accessories |
Type of accessories | Т-branch |
Height | 50 mm |
Width | 200 mm |
Material | Hot-dip galvanized |

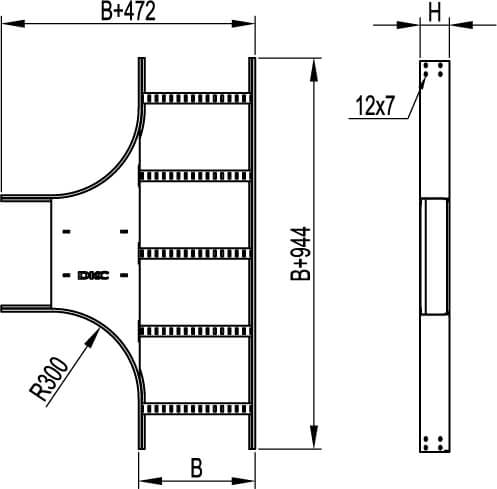

Drawings
Seria | Name | AVEVA | Intergraph | DWG (dynamic.) | SAT | STEP | Autodesk Revit |
---|---|---|---|---|---|---|---|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
Certificates
Name | Document |
---|---|
