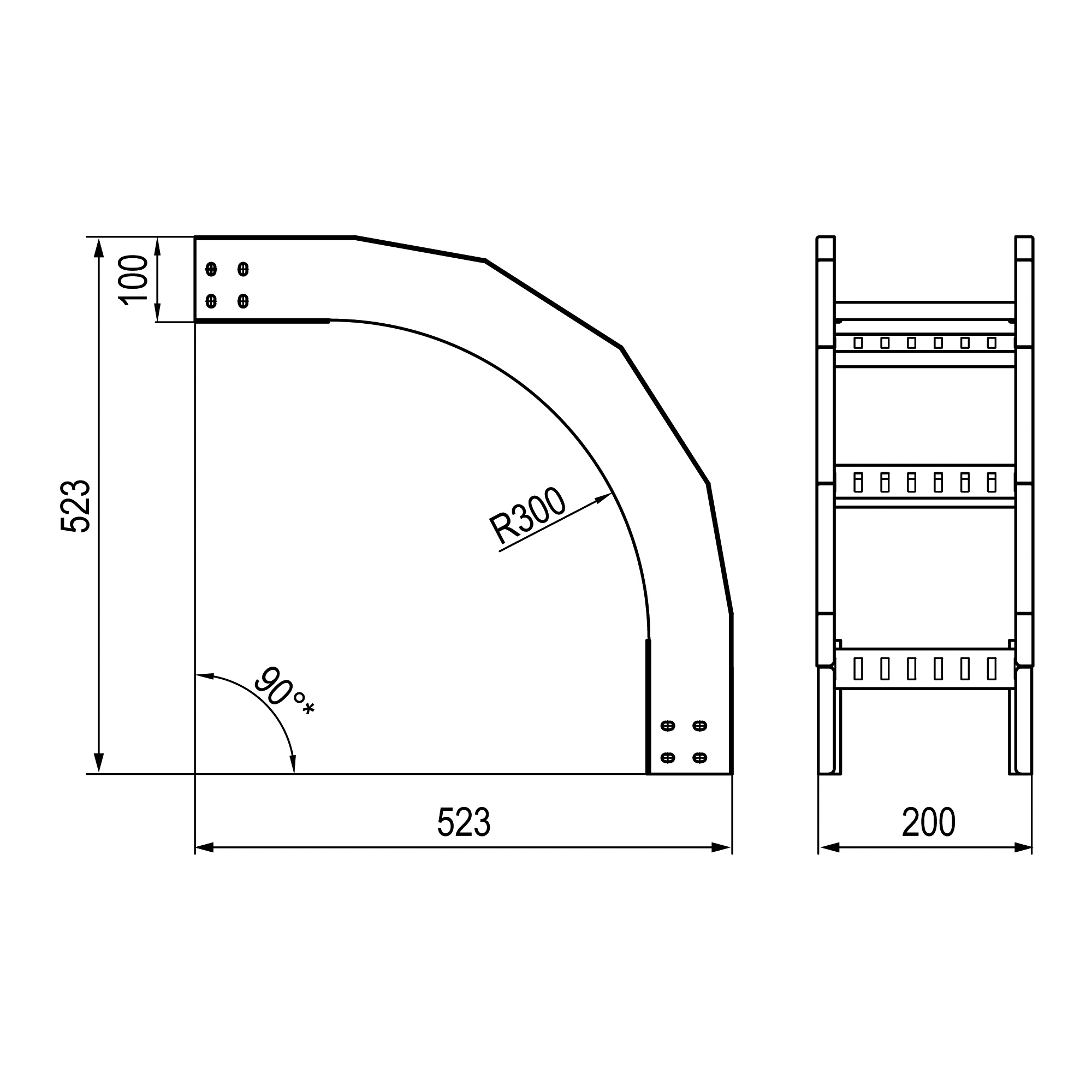

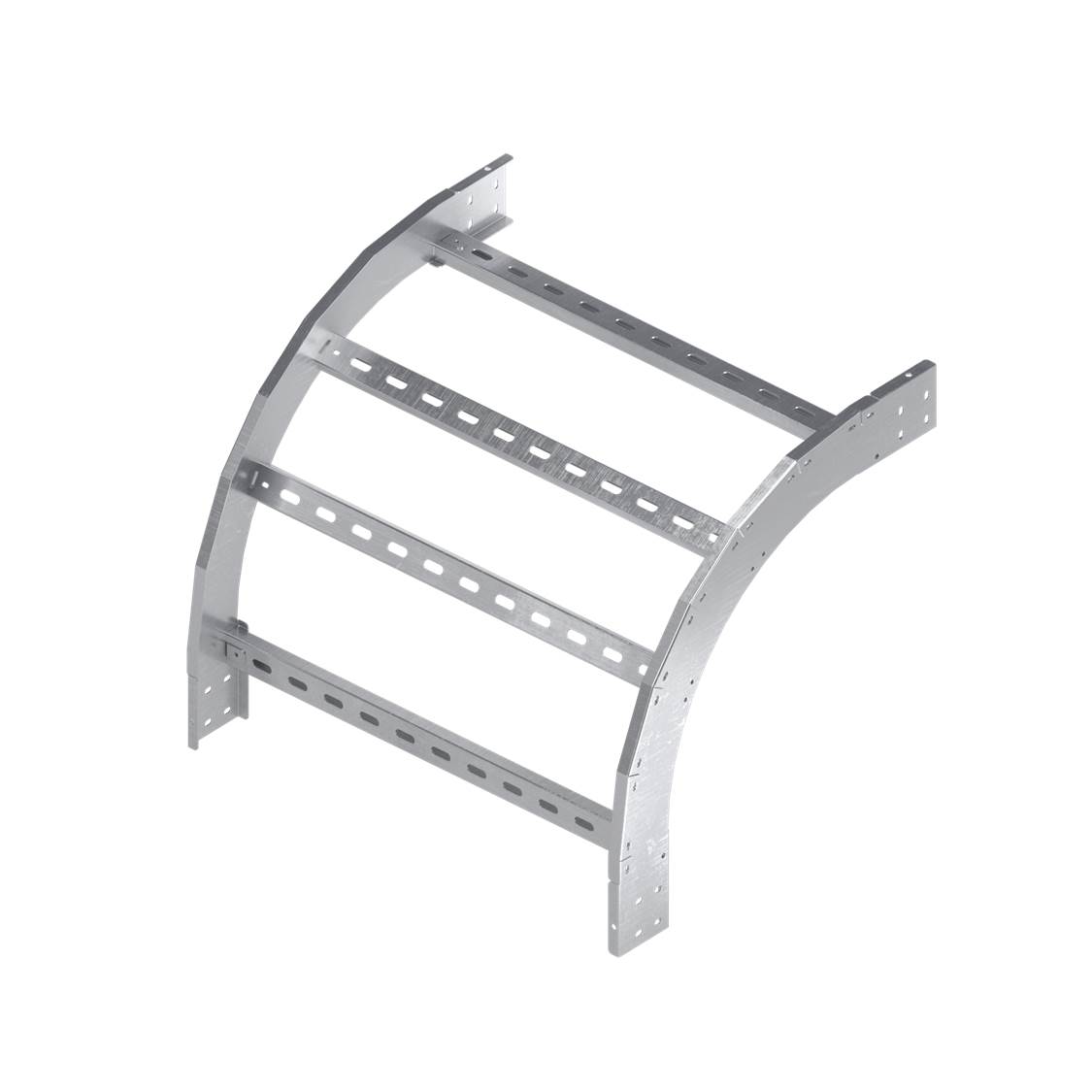

External vertical angle 90° 100x200, R300, hot galvanizing method, included with fasteners (joint plates GTO, screws, nuts)
Code: LO1320KHDZ
External vertical angle 90° 100x200, R300, hot galvanizing method, included with fasteners (joint plates GTO, screws, nuts)
Code: LO1320KHDZ
| Colour | Light grey |
| Deflection (angle) | 90° |
| Cable tray width, mm | 200 |
| Cable tray height, mm | 100 |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| With cover | Yes |
| Surface protection | Hot-dip galvanized |
| Material quality | Steel |
| Material | Steel |
| Change of direction | Vertically descending |
| Model | Included connector |
| Product type | System accessories |
| Type of accessories | 90º vertical external bend |
| Height | 100 mm |
| Side rail thickness | 1.2 mm |
| Material | Hot-dip galvanized |
| Width | 200 mm |
| 19 мм | 300 mm |
