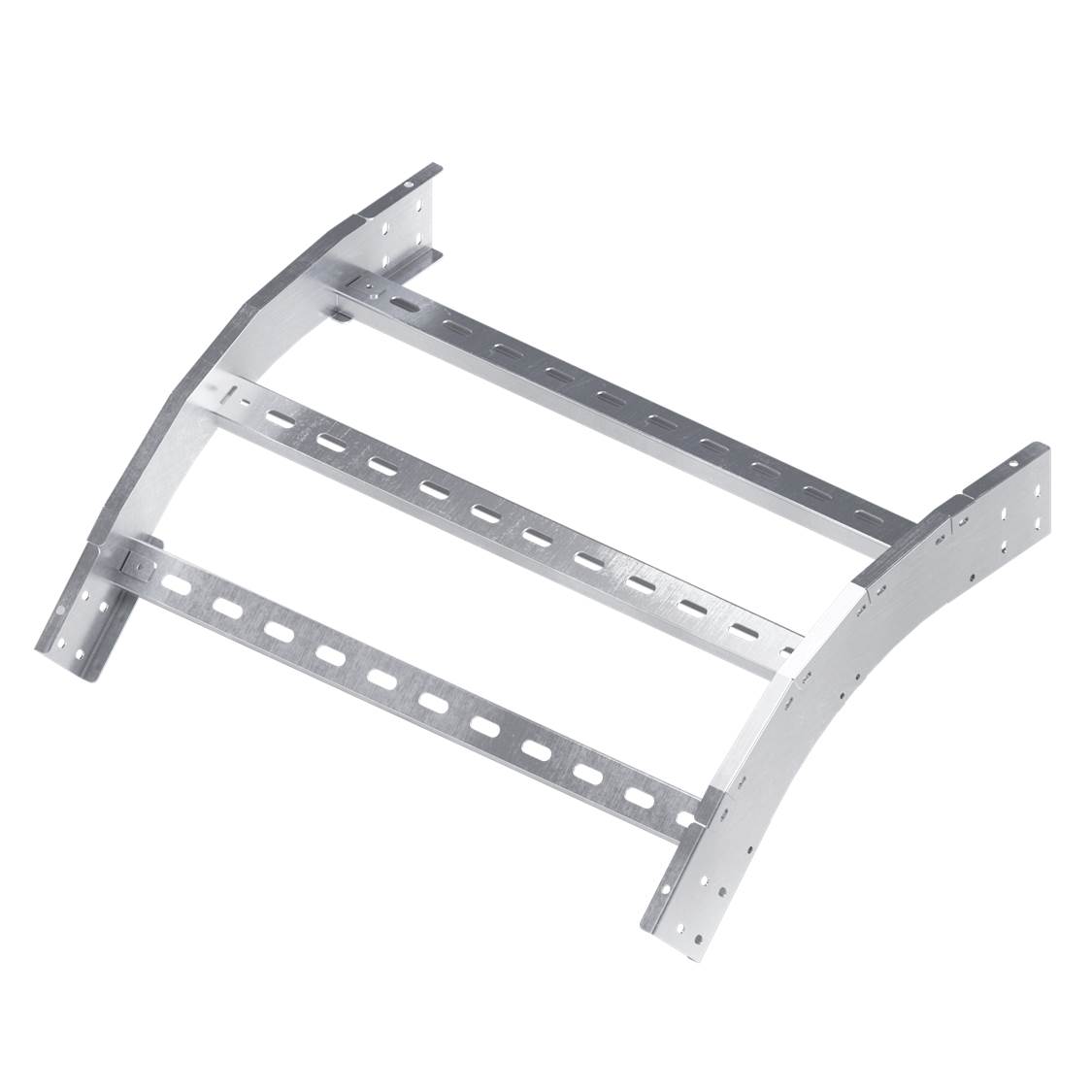

External vertical angle 45°80x400, R600, hot galvanizing method, included with fasteners (joint plates GTO, screws, nuts)

Code: LO0864KHDZ

External vertical angle 45°80x400, R600, hot galvanizing method, included with fasteners (joint plates GTO, screws, nuts)

Code: LO0864KHDZ
Colour Light grey
Deflection (angle) 45°
Cable tray width, mm 400
Cable tray height, mm 80
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
With cover Yes
Surface protection Hot-dip galvanized
Material quality Steel
Material Steel
Change of direction Vertically descending
Model Included connector
Product type System accessories
Type of accessories 45º vertical external bend
Height 80 mm
Side rail thickness 1.2 mm
Material Hot-dip galvanized
Width 400 mm
19 мм 600 mm

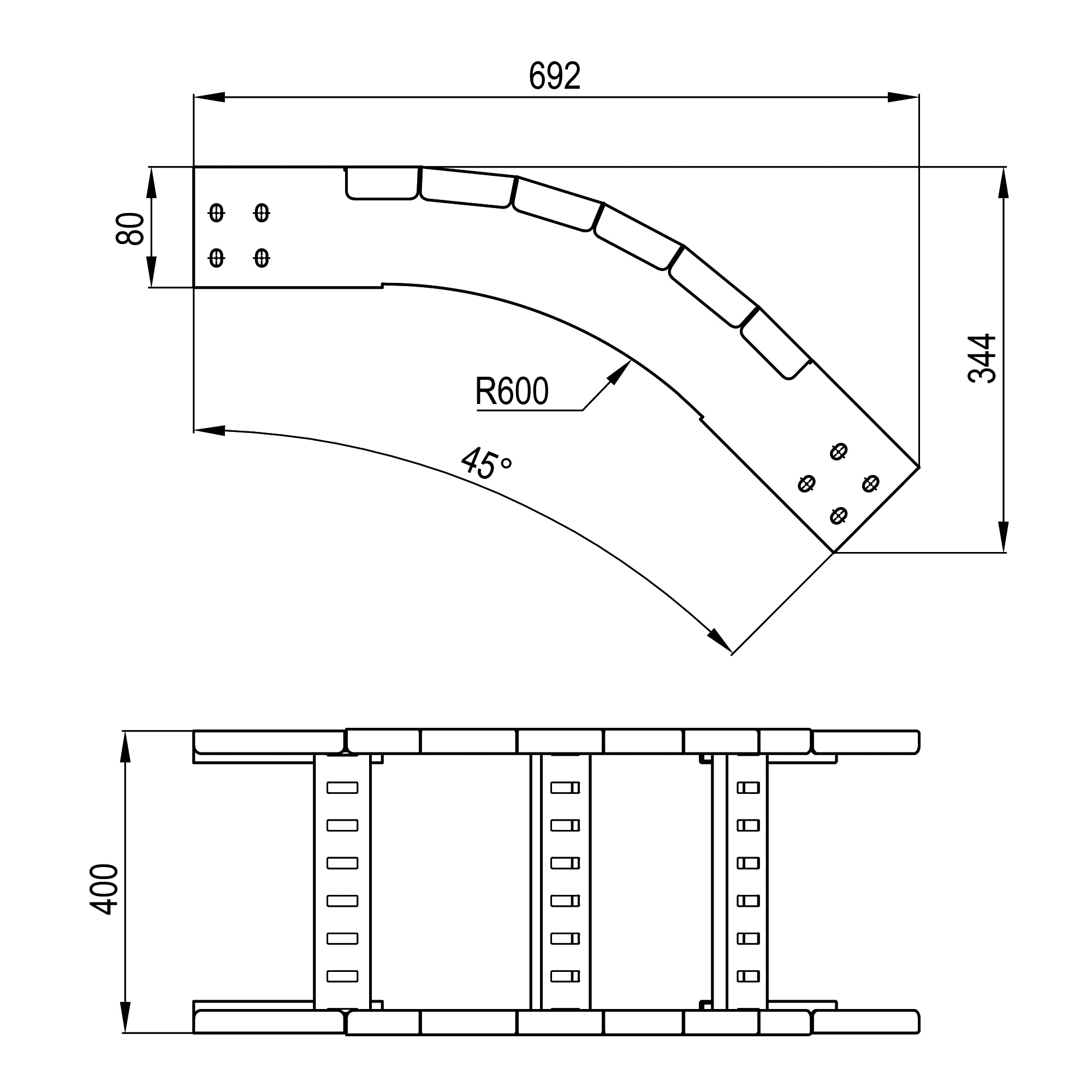

Drawings
Seria Name AVEVA Intergraph DWG (dynamic.) SAT STEP Autodesk Revit
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Certificates
Name Document
