External vertical angle 45° 80х600, R300, hot galvanizing method, included with fasteners (joint plates GTO, screws, nuts)
| Colour | Light grey |
| Deflection (angle) | 45° |
| Cable tray width, mm | 600 |
| Cable tray height, mm | 80 |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| With cover | Yes |
| Surface protection | Hot-dip galvanized |
| Material quality | Steel |
| Material | Steel |
| Change of direction | Vertically descending |
| Product type | System accessories |
| Type of accessories | 45º vertical external bend |
| Height | 80 mm |
| Width | 600 mm |
| Material | Hot-dip galvanized |

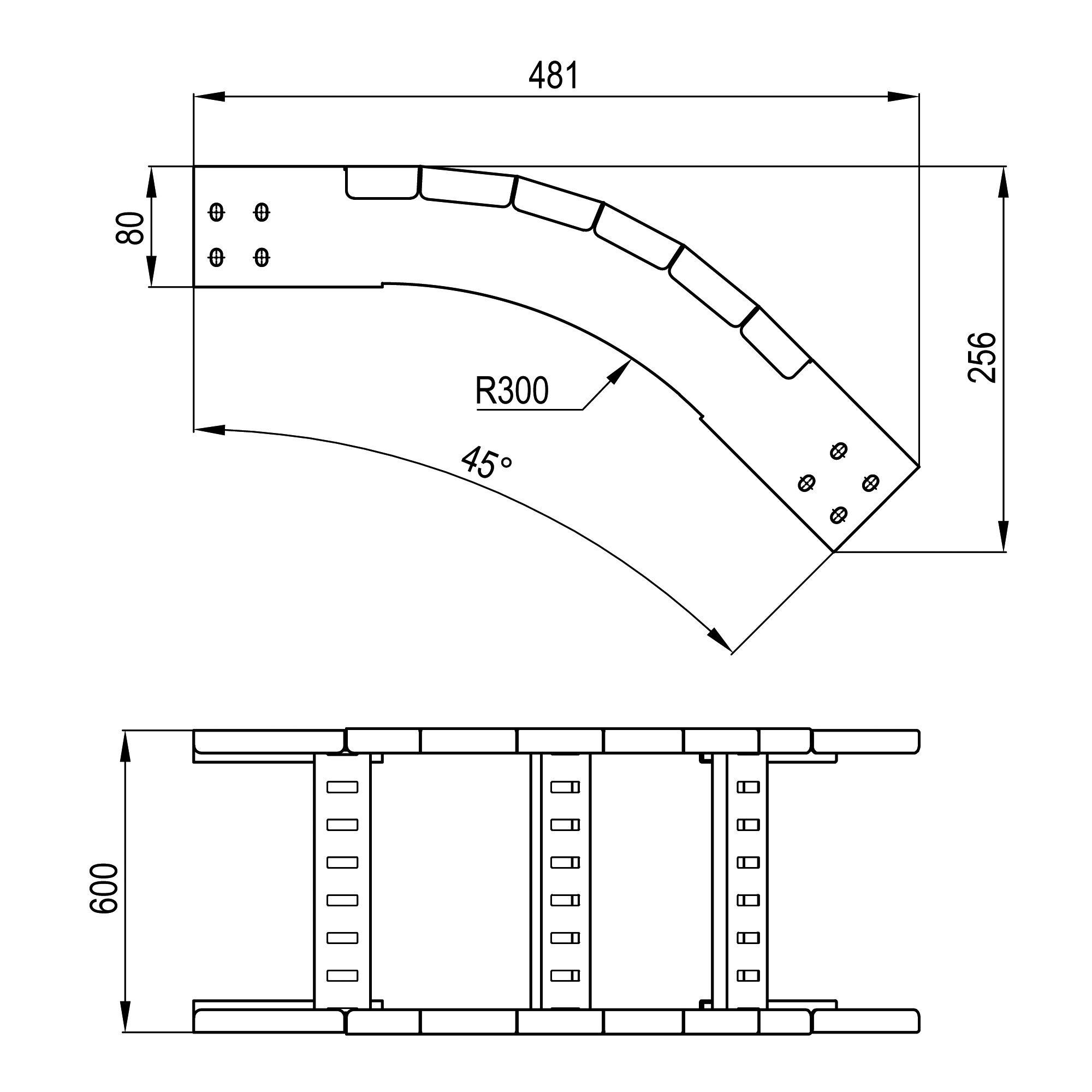

Drawings
| Seria | Name | AVEVA | Intergraph | DWG (dynamic.) | SAT | STEP | Autodesk Revit |
|---|---|---|---|---|---|---|---|
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
Certificates
| Name | Document |
|---|---|
