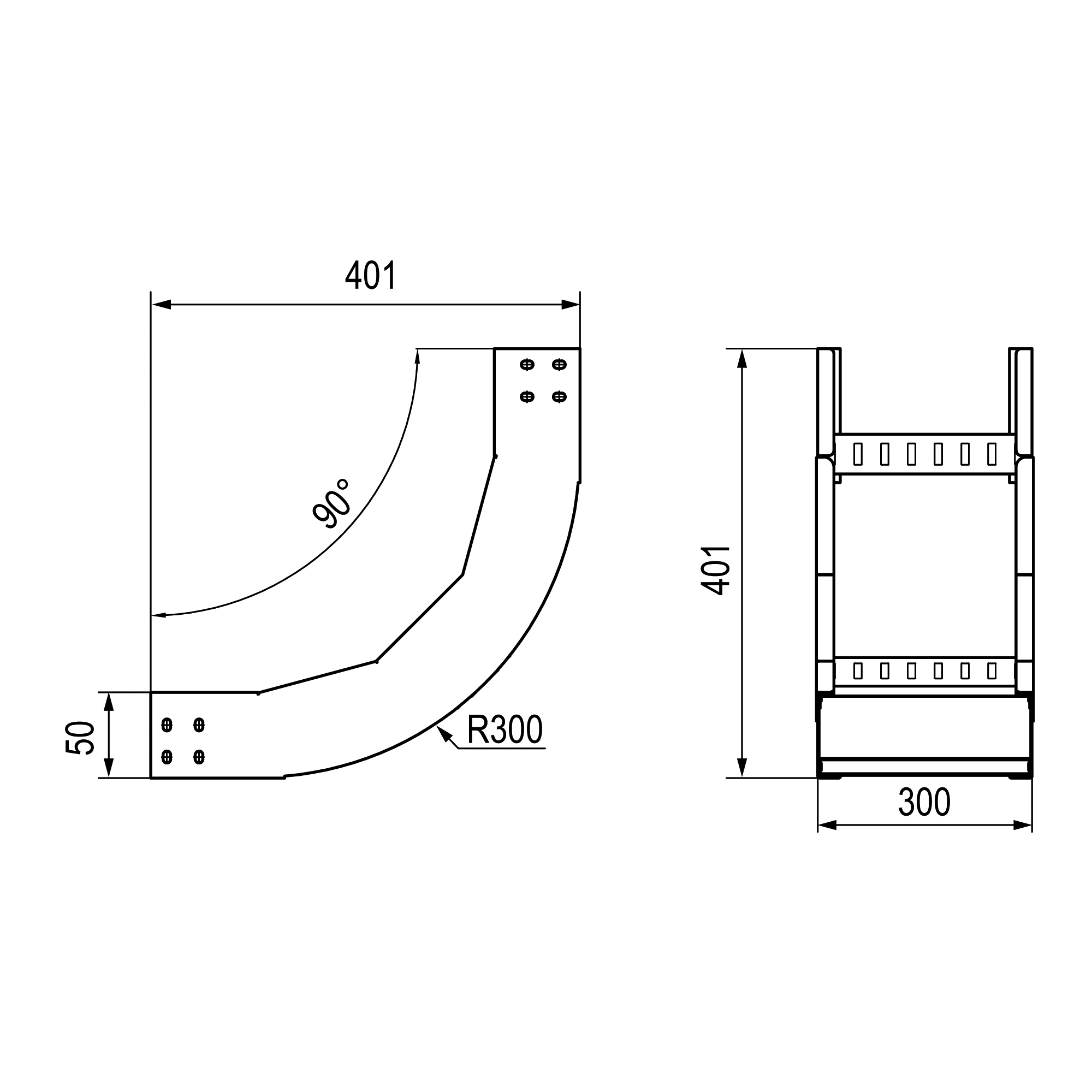

Internal vertical angle 90° 50x300, R300, hot galvanizing method, included with fasteners (joint plates GTO, screws, nuts)
| Colour | Light grey |
| Deflection (angle) | 90° |
| Cable tray width, mm | 300 |
| Cable tray height, mm | 50 |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| With cover | Yes |
| Surface protection | Hot-dip galvanized |
| Material quality | Steel |
| Material | Steel |
| Change of direction | Vertically rising |
| Model | Included connector |
| Type of accessories | 90º vertical inner bend |
| Product type | System accessories |
| Height | 50 mm |
| Width | 300 mm |
| Material | Hot-dip galvanized |
